Toyota RAV4 (SFTM) — ANTENNA

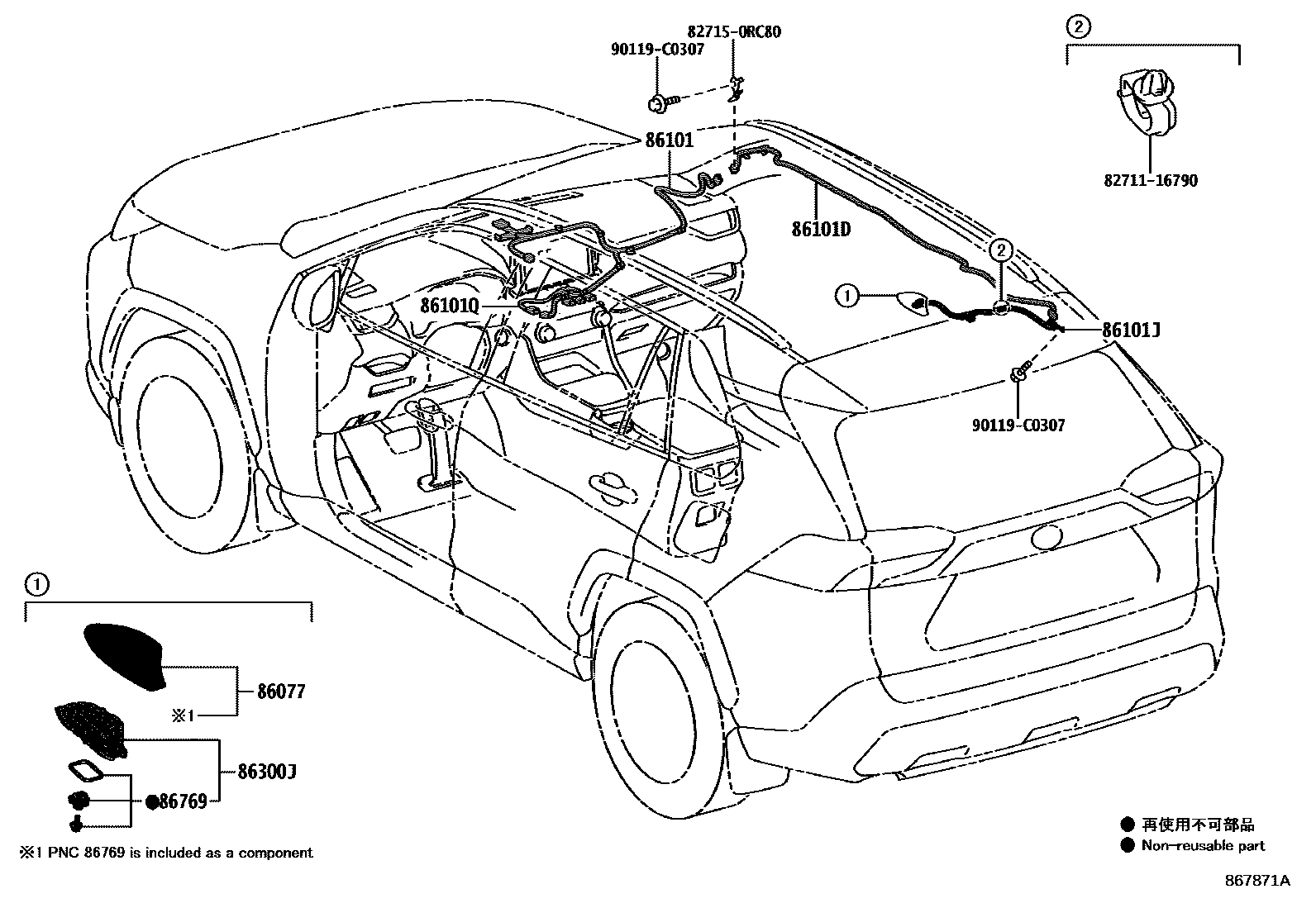

Parts diagram
86077COVER KIT, ANTENNA
main86077-12040-A1i202304-202409
PLATINUM WHITE PEARL MC.,089
sub86077-42020¥1,570
main86077-12040-B8i202304-202409
ASH GRAY ME.,1K6
sub86077-42020¥1,570
main86077-12040-B8i202304-202409
ASH GRAY ME.,1K6 ,2QU
sub86077-42020¥1,570
main86077-12040-C4i202304-202409
BLACK MC.,209 ,2PU ,2RZ
sub86077-42020¥1,570
main86077-12040-C4i202304-202409
BLACK MC.,209
sub86077-42020¥1,570
main86077-12040-D2i202304-202409
RED MC.,3T3
sub86077-42020¥1,570
main86077-12040-E3i202304-202409
AVANT-GARDE BRONZE ME.,4V8
sub86077-42020¥1,570
main86077-12040-G0i202304-202409
URBAN KHAKI,6X3
sub86077-42020¥1,570
main86077-12040-G2i202409
BLACKISH GREEN CS.GF.,6X8
sub86077-42020¥1,570
main86077-12040-J2i202304-202409
DK. BLUE MC.,8X8
sub86077-42020¥1,570
main86077-47010-A1i201911-202104
WHITE PEARL CS.,070
sub86077-47010¥2,500
main86077-47010-A3i202104-202303
PLATINUM WHITE PEARL MC.,089
sub86077-47010¥2,500
main86077-47010-B4i201911-202303
ASH GRAY ME.,1K6 ,2QU ,2QV ,2RX ,2RY
sub86077-47010¥2,500
main86077-47010-B4i201911-202303
ASH GRAY ME.,1K6
sub86077-47010¥2,500
main86077-47010-C2i201911-202303
BLACK MC.,209 ,2KR ,2PN ,2PU ,2RZ ,2SA ,2UQ
sub86077-47010¥2,500
main86077-47010-C2i201911-202303
BLACK MC.,209
sub86077-47010¥2,500
main86077-47010-D1i201911-202303
RED MC.,3T3
sub86077-47010¥2,500
main86077-47010-E7i201911-202303
AVANT-GARDE BRONZE ME.,4V8
sub86077-47010¥2,500
main86077-47010-G3i201911-202303
URBAN KHAKI,6X3
sub86077-47010¥2,500
main86077-47010-J4i201911-202204
CYAN METALLIC,8W9
sub86077-47010¥2,500
main86077-47010-J5i202204-202303
DK. BLUE MC.,8X8
sub86077-47010¥2,500
86101CORD SUB-ASSY, ANTENNA
main86101-0R600i201911-202303
main86101-0RB00i202304-202409
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-0R590i201911-202303
main86101-0RB20i202304-202409
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-0R580i201911-202303
main86101-0RB10i202304-202409
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-0R360i201911-202103
sub86101-0R730
main86101-0R730i202104-202409
86300JANTENNA ASSY, ROOF
main86300-02470i201911-202303
main86300-0A070i202304-202409
86769HOUSING, ROOF ANTENNA
main86769-0E030i202304-202409
main86769-12010i¥500201911-202303
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790¥120
827150RC80BRACKET,WIRING HARNESS CLAMP
main82715-0RC80
90119C0307
main90119-C0307

10 parts on this diagram · 1 diagram in section
