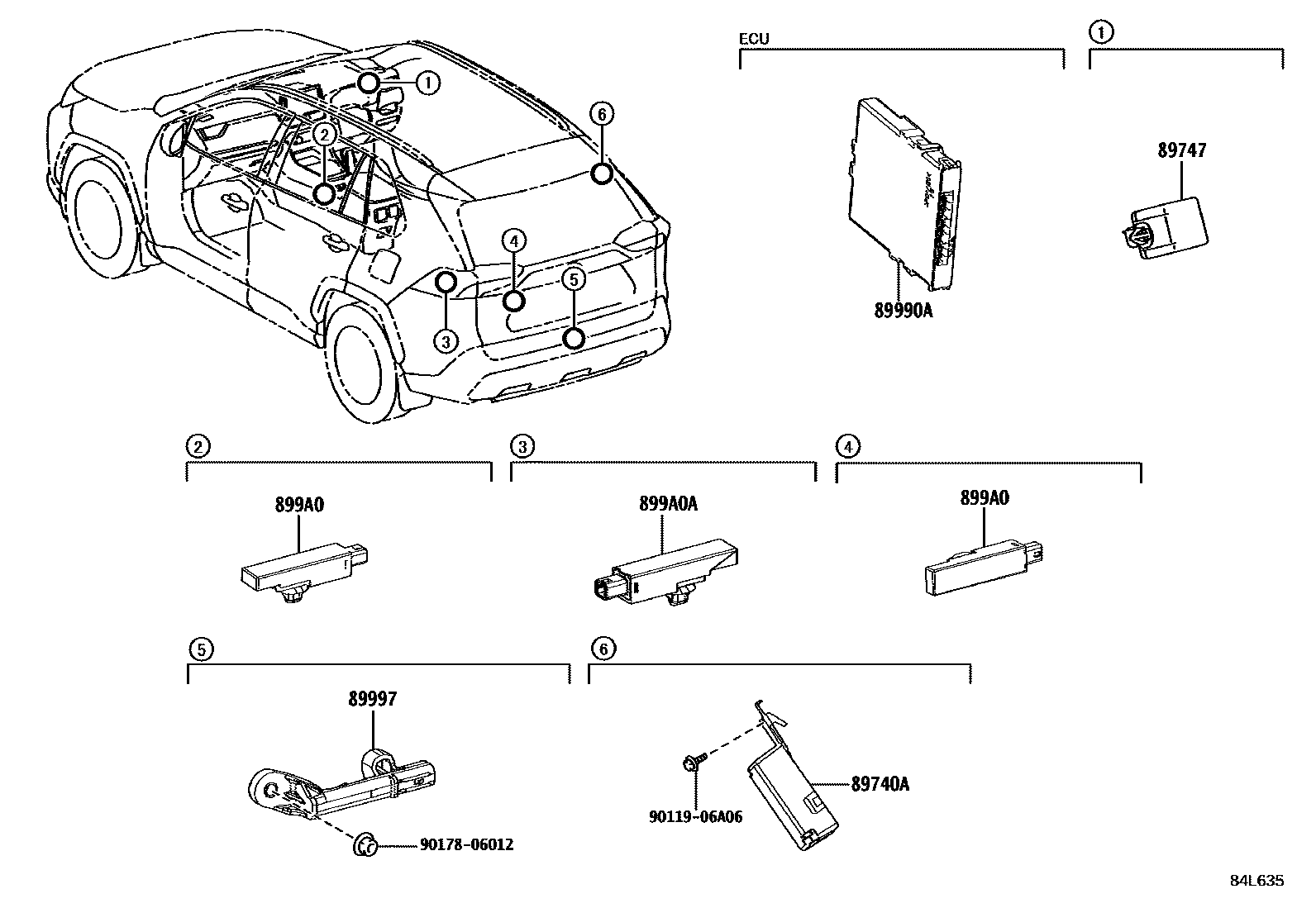

Toyota RAV4 PHV — WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-42080iAXAP54..Z¥11,700202006-202310

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAXAP54..X¥2,900202006-202310

89990ACOMPUTER ASSY, SMART KEY

main899H0-42190iAXAP54..G¥49,400202006-202210

main899H0-42200iAXAP54..BLT¥49,400202006-202210

main899H0-42330iAXAP54..X¥49,400202210

main899H0-42340iAXAP54..Z¥49,400202210-202501

main899H0-42490iAXAP54..Z¥44,900202501

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAXAP54¥1,800202006-202310

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iAXAP54¥1,410202006-202310

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-42030iAXAP54¥1,410202006-202310

9011906A06

main90119-06A06¥60

9017806012

main90178-06012¥80

8 parts on this diagram · 1 diagram in section
