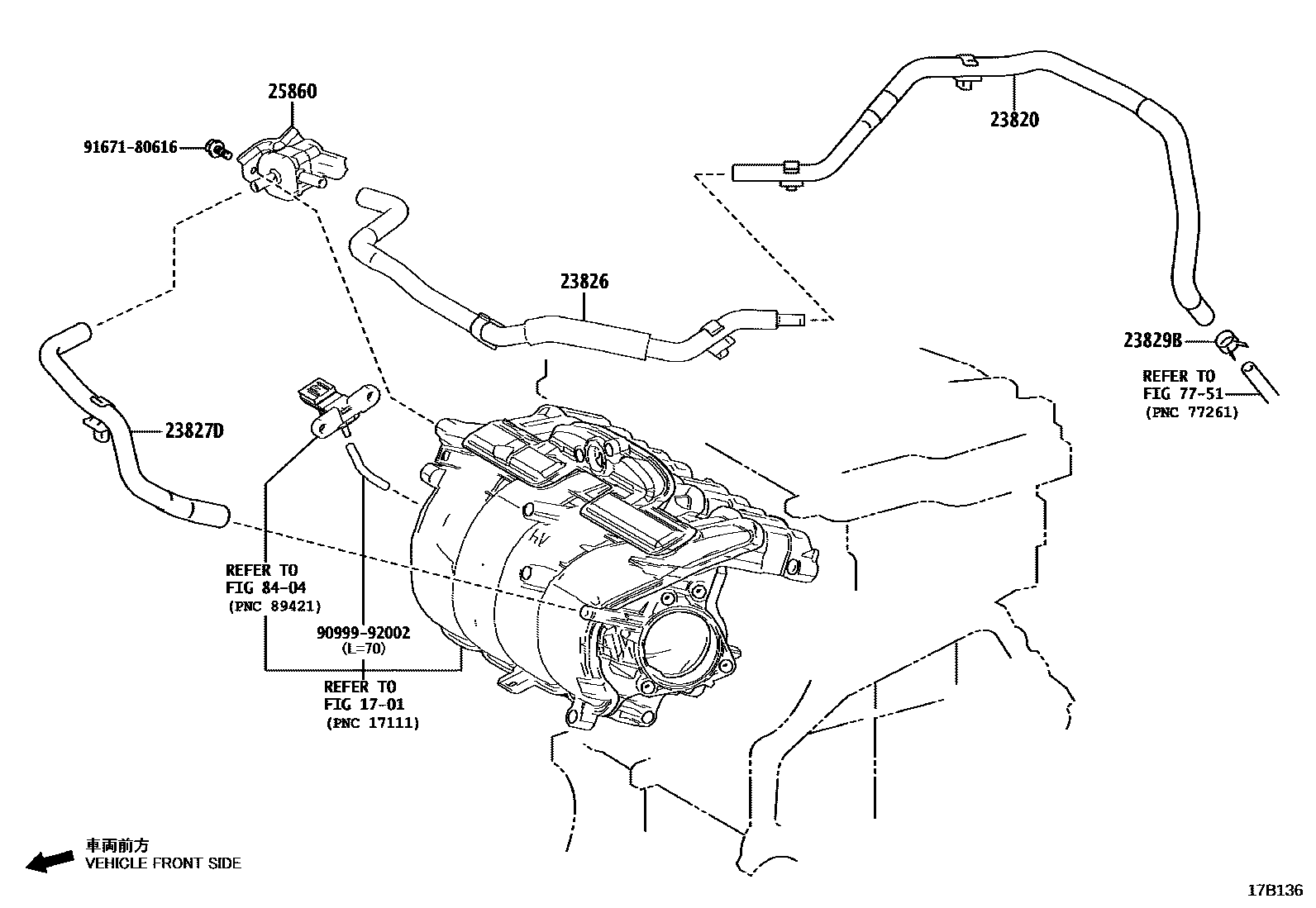

Toyota RAV4 PHV — VACUUM PIPING

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25200iA25AFXS..AXAP54¥4,780202006-202312

sub23820-25600¥3,450

main23820-25600iA25AFXS..AXAP54..Z¥3,450202312

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25AFXS..AXAP54¥2,480202006-202310

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25AFXS..AXAP54¥1,590202006-202310

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41801iA25AFXS..AXAP54¥160202006-202310

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AXAP54¥3,480202006-202310

7751

8404

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

10 parts on this diagram · 1 diagram in section
