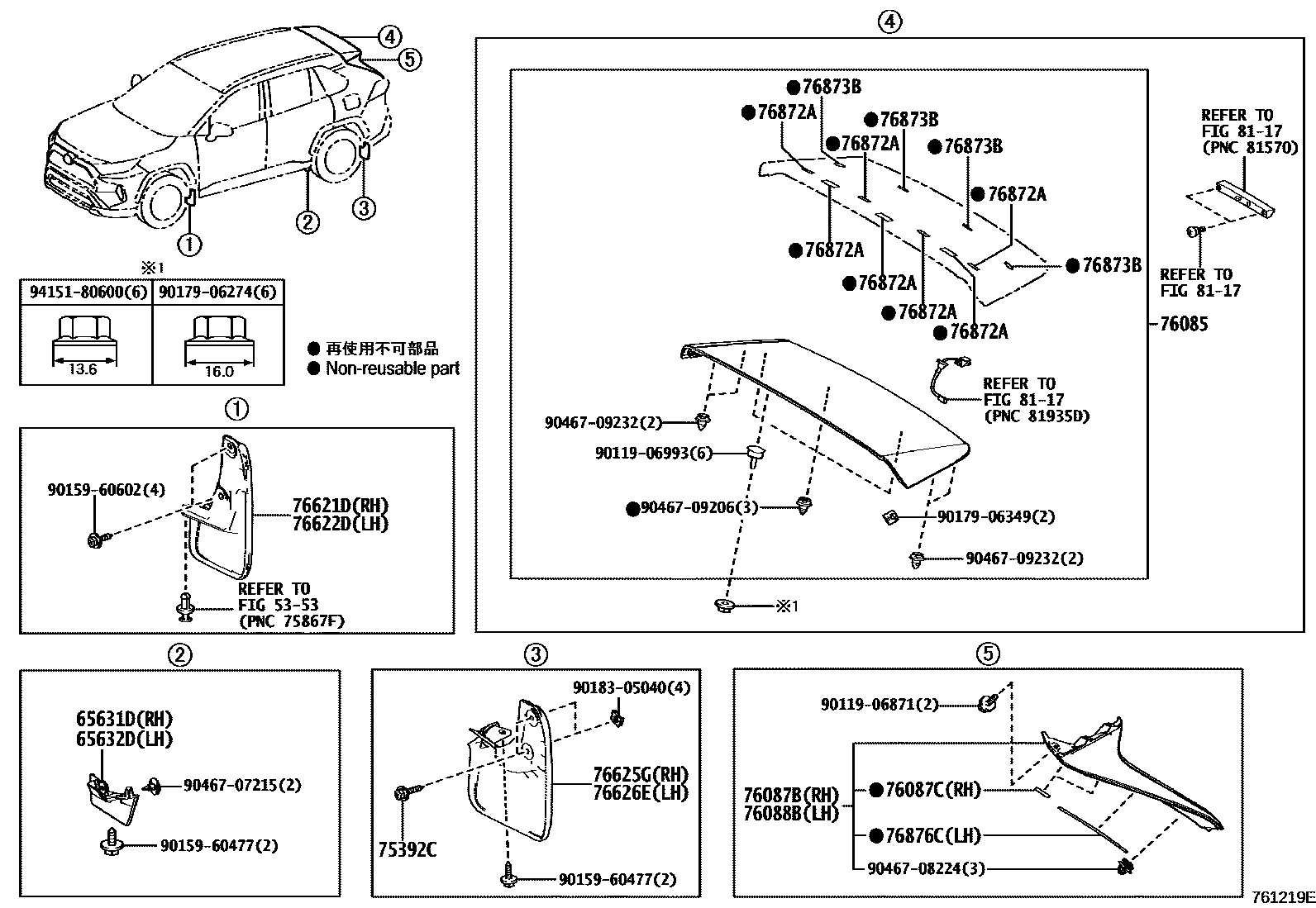

Toyota RAV4 PHV — SPOILER & SIDE MUDGUARD

5353

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-42040iAXAP54..Z¥1,270202006-202310

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-42040iAXAP54..X¥1,270202006-202310

75392CRETAINER, OUTSIDE MOULDING

76085SPOILER SUB-ASSY, REAR

main76085-42907-A1iAXAP54..G202006-202210

WHITE PEARL CS.,070

main76085-42907-A2iAXAP54..X202210-202310

PLATINUM WHITE PEARL MC.,089

main76085-42907-B2iAXAP54..Z202006-202310

GRAY ME.,1G3

main76085-42907-B4iAXAP54..Z202006-202310

SILVER ME.,1D6

main76085-42907-C2iAXAP54..X202006-202210

ATTITUDE BLACK MC.,218

main76085-42907-C2iAXAP54..G202006-202210

ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2RA ,2SC

main76085-42907-C2iAXAP54..Z202210-202310

ATTITUDE BLACK MC.,218 ,2PS ,2QY ,2QZ ,2RA ,2SC

main76085-42907-D5iAXAP54..X202006-202310

EMOTIONAL RED 2,3U5

main76085-42907-J5iAXAP54..Z202006-202310

DK.BLUE MC.,8X8

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-42050iAXAP54¥15,400202006-202310

76087CPROTECTOR, REAR SIDE SPOILER

main87268-42010iAXAP54¥80202006-202310

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-42050iAXAP54¥15,400202006-202310

76621DMUDGUARD, FRONT FENDER, RH

76622DMUDGUARD, FRONT FENDER, LH

76625GMUDGUARD, QUARTER PANEL, REAR RH

76626EMUDGUARD, QUARTER PANEL, REAR LH

76872APROTECTOR, REAR SPOILER, NO.1

main76872-42060iAXAP54¥430202006-202310

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-42020iAXAP54¥430202006-202310

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-42020iAXAP54¥430202006-202310

8117

9011906871

main90119-06871¥60

9011906993

main90119-06993¥80

9015960477

main90159-60477¥70

9015960602

main90159-60602¥60

9017906274

main90179-06274¥70

9017906349

main90179-06349¥180

9018305040

main90183-05040¥80

9046707215

main90467-07215¥80

9046708224

main90467-08224¥60

9046709206

main90467-09206¥80

9046709232

main90467-09232¥70

9415180600

main94151-80600¥60

28 parts on this diagram · 1 diagram in section
