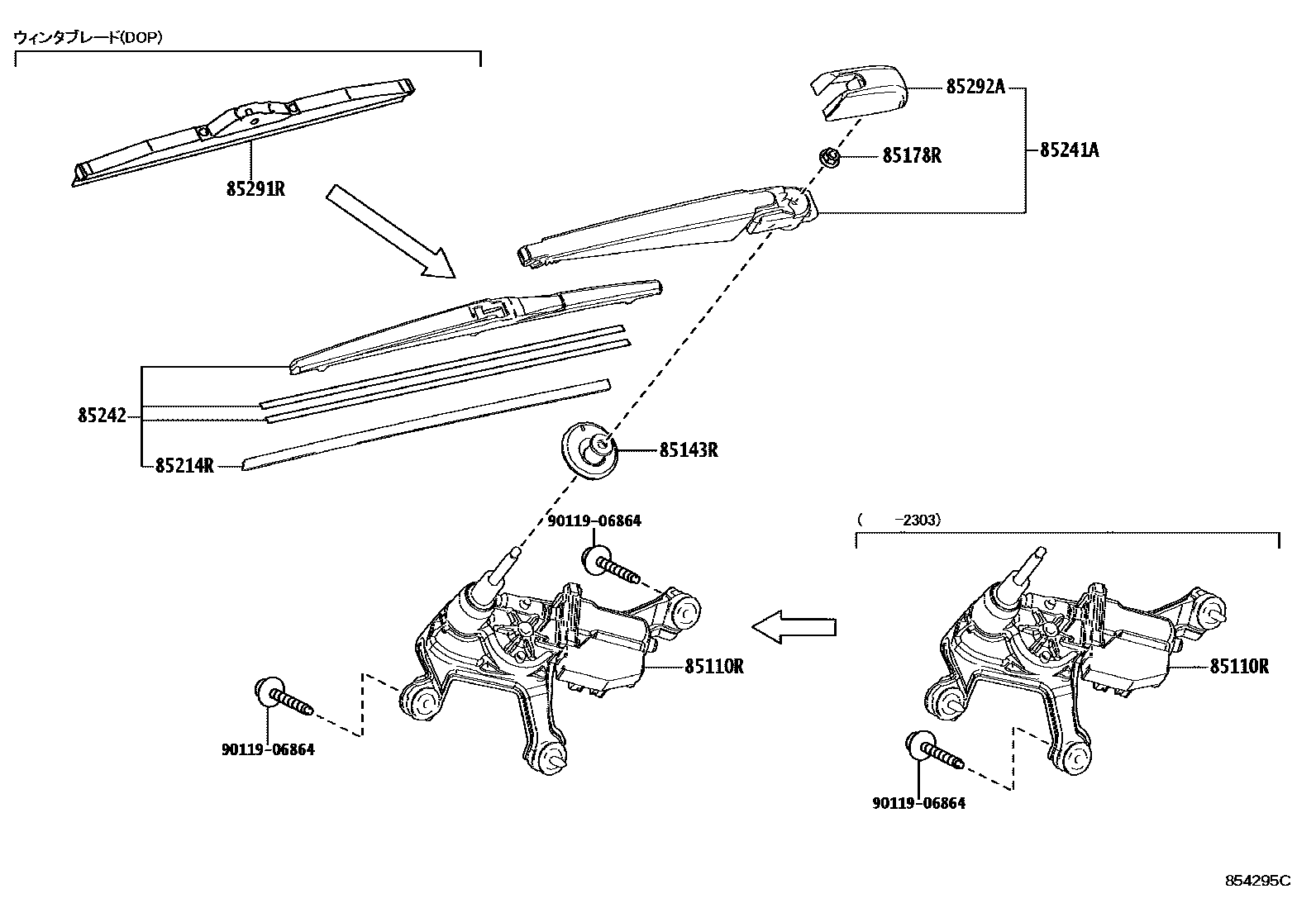

Toyota RAV4 PHV — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-42101iAXAP54¥17,600202006-202210

sub85130-42102¥16,000

sub90119-06864¥80

main85130-42101iAXAP54¥17,600202210-202303

sub85130-42102¥16,000

sub90119-06864¥80

main85130-42102iAXAP54¥16,000202303-202309

main85130-42102iAXAP54..Z¥16,000202310

85143RGROMMET, REAR WIPER MOTOR

main85143-42050iAXAP54¥0202006-202210

main85143-42050iAXAP54..Z¥0202210-202310

main85143-42050iAXAP54..X¥0202210

main85143-42050iAXAP54..Z¥0202310

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAXAP54¥70202006-202210

main90179-06158iAXAP54..Z¥70202210-202310

main90179-06158iAXAP54..X¥70202210

main90179-06158iAXAP54..Z¥70202310

85214RRUBBER, REAR WIPER

main85214-42040iAXAP54¥600202006-202210

main85214-42040iAXAP54..Z¥600202210-202310

main85214-42040iAXAP54..X¥600202210

main85214-42040iAXAP54..Z¥600202310

85241AARM, REAR WIPER

main85241-42110iAXAP54¥1,340202006-202210

main85241-42110iAXAP54..Z¥1,340202210-202310

main85241-42110iAXAP54..X¥1,340202210

main85241-42110iAXAP54..Z¥1,340202310

85242BLADE, RR WIPER

main85242-72010iAXAP54¥1,220202006-202210

main85242-72010iAXAP54..Z¥1,220202210-202310

main85242-72010iAXAP54..X¥1,220202210

main85242-72010iAXAP54..Z¥1,220202310

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iAXAP54¥480202006-202210

main85292-42010iAXAP54..Z¥480202210-202310

main85292-42010iAXAP54..X¥480202210

main85292-42010iAXAP54..Z¥480202310

9011906864

main90119-06864¥80

9 parts on this diagram · 1 diagram in section
