Toyota RAV4 PHV — REAR VENTILATOR & ROOF VENTILATOR

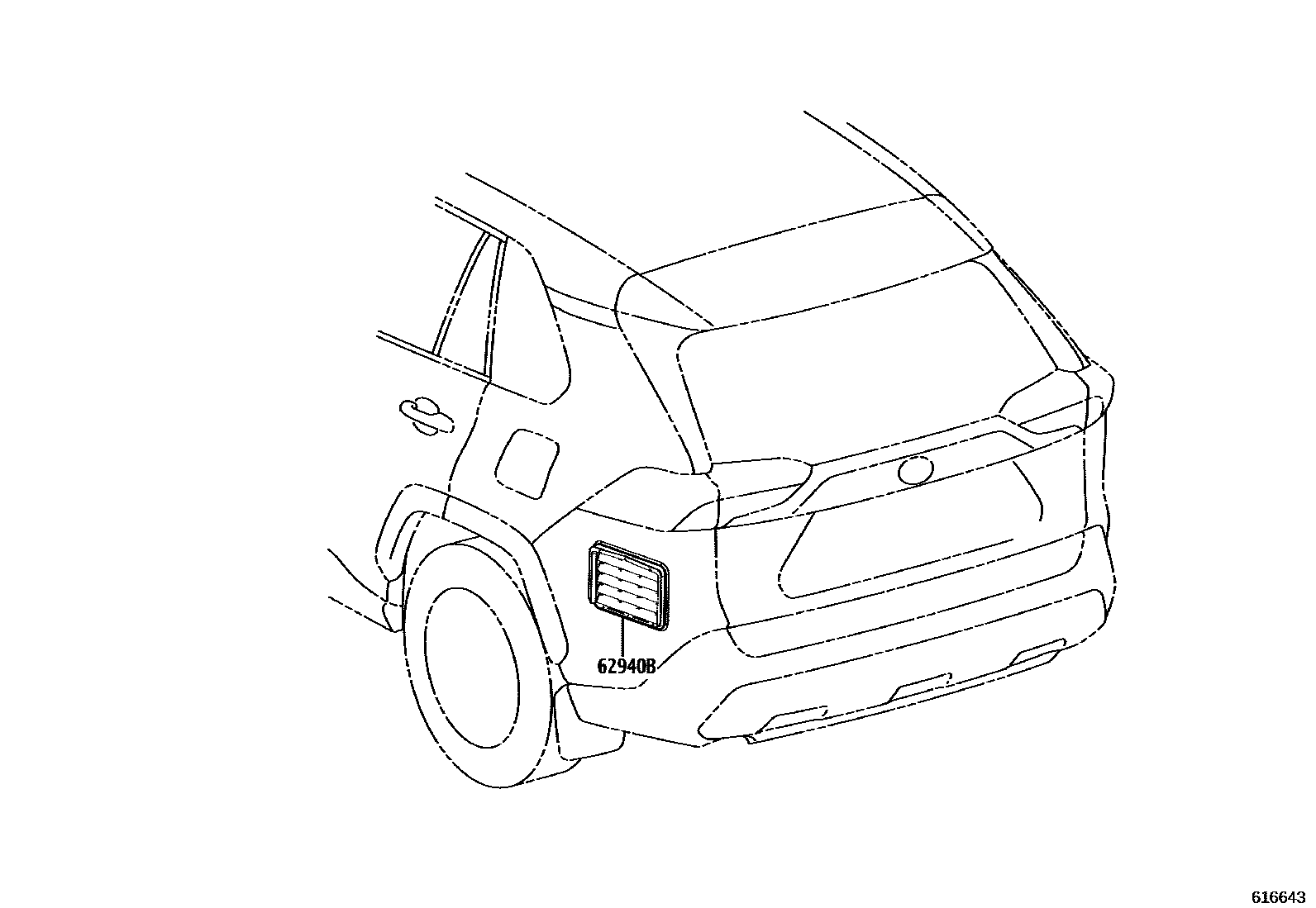

Parts diagram

62940BDUCT ASSY, QUARTER VENT, LH

main62940-42020i¥4,120202006-202210

main62940-42020i¥4,120202210-202310

main62940-42020i¥4,120202210

main62940-42020i¥4,120202310

1 parts on this diagram · 1 diagram in section
