Toyota RAV4 PHV — REAR COMBINATION LAMP

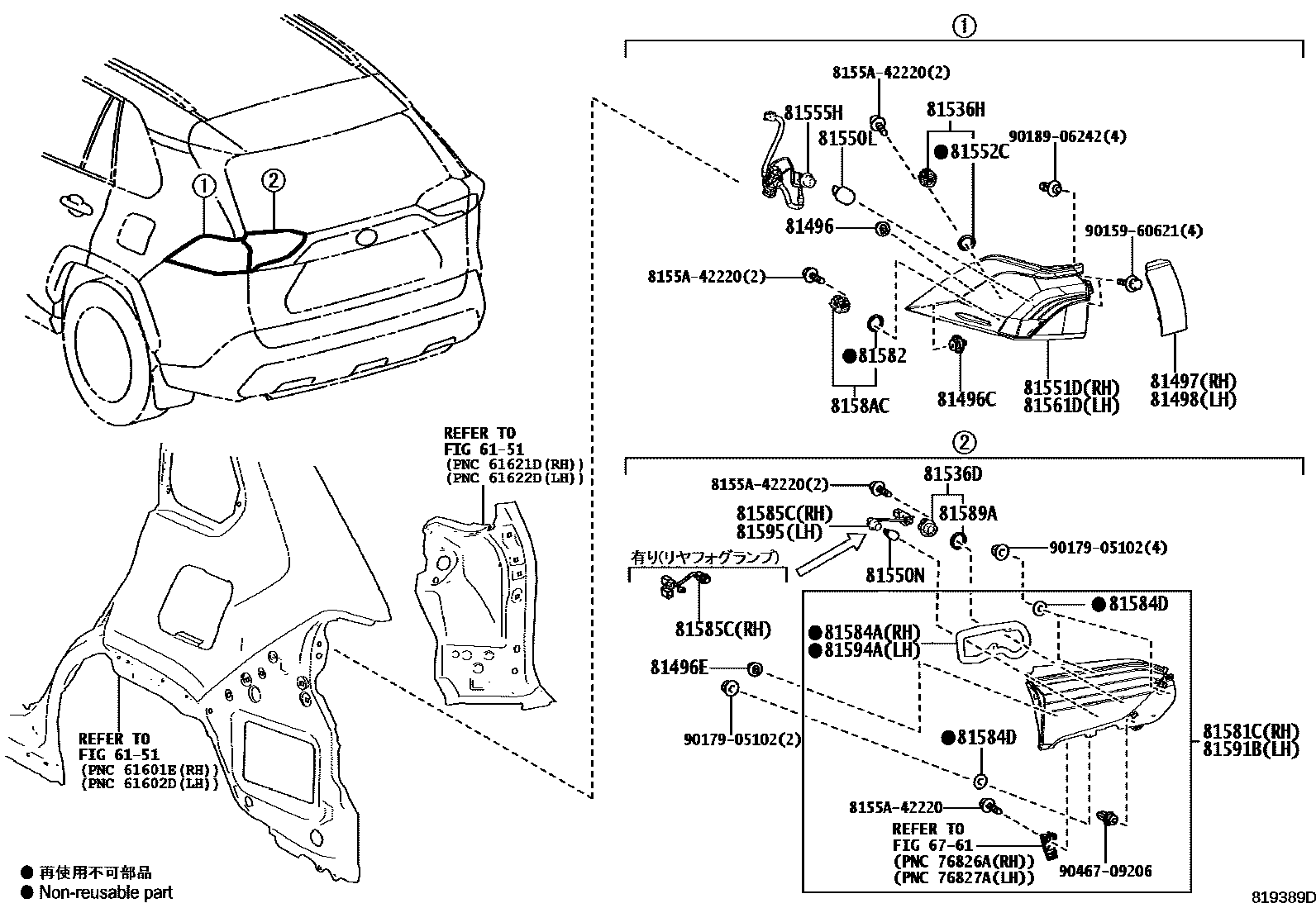

Parts diagram

6151

6761

81496GUIDE, REAR COMBINATION LAMP

main81496-52020i¥70202006-202310

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010i¥100202006-202310

81496EGUIDE, REAR COMBINATION LAMP, NO.3

main81496-52020i¥70202006-202310

81497COVER, REAR COMBINATION LAMP, RH

main81497-42010i¥950202006-202310

81498COVER, REAR COMBINATION LAMP, LH

main81498-42010i¥950202006-202310

81536DLED, TAILLAMP

main81536-42200i¥2,870202006-202310

81536HLED, TAILLAMP, NO.2

main81536-42230i¥2,270202006-202310

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011i¥300202006-202310

81550NBULB, BACK UP LAMP

main90981-11059i¥200202006-202310

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-42230i¥20,500202006-202310

81552CGASKET, REAR COMBINATION LAMP

main81538-42200i¥670202006-202310

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-42230i¥1,540202006-202310

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-42230i¥20,500202006-202310

81581CLENS AND BODY, REAR LAMP, RH

main81581-42151i¥16,200202006-202310

81582GASKET, REAR LAMP

main81538-42200i¥670202006-202310

81584AGASKET, REAR LAMP RH

main81584-42080i¥160202006-202310

81584DGASKET, REAR LAMP

main81584-22040i¥190202006-202310

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-42080i¥1,270202006-202310

81589AGASKET, REAR LAMP

main81538-42200i¥670202006-202310

8158ACLED, STOP LAMP

main81536-42200i¥2,870202006-202310

81591BLENS AND BODY, REAR LAMP, LH

main81591-42121i¥16,200202006-202310

81594AGASKET, REAR LAMP LH

main81594-42050i¥160202006-202310

81595SOCKET & WIRE, REAR LAMP, LH

main81585-42080i¥1,270202006-202310

8155A42220

main8155A-42220¥40

9015960621

main90159-60621¥60

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

9046709206

main90467-09206¥80

30 parts on this diagram · 1 diagram in section
