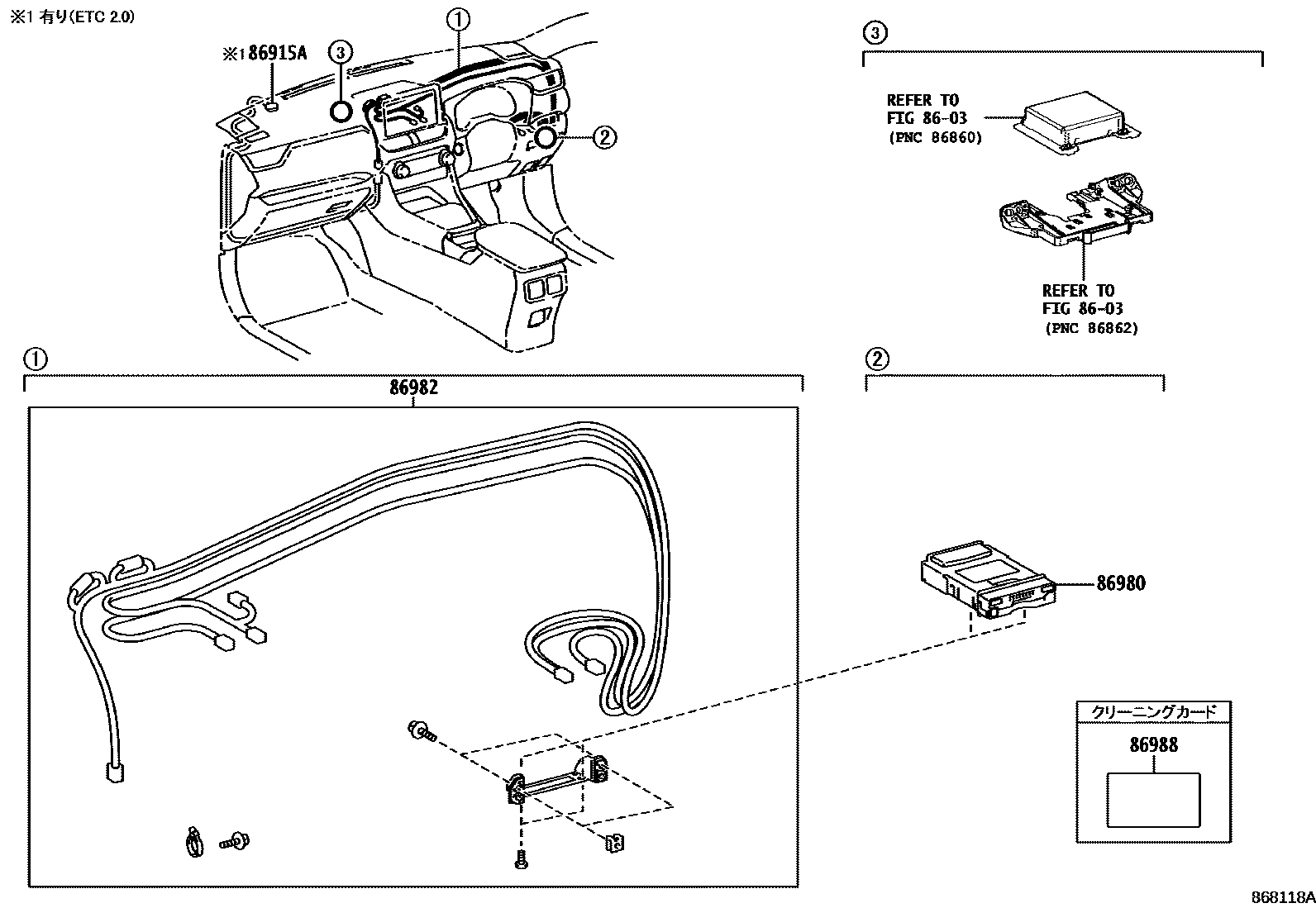

Toyota RAV4 PHV — RADIO COMMUNICATION & ETC

0001 1DOP 0002 1

8603

86915ATRANSCEIVER, OPTICAL BEACON

86980COMPUTER ASSY, TOLL COLLECTION

main86980-K0010¥45,000

main86980-K0011¥40,900

main86980-K0020¥23,400

main86980-K0021¥21,200

86982WIRE, TOLL COLLECTION

main86982-K0010¥7,400

main86982-K0020¥7,400

86988CARD, TOLL COLLECTION CLEANING

main86988-11010¥530

5 parts on this diagram · 2 diagrams in section
