Toyota RAV4 PHV — PARTIAL ENGINE ASSEMBLY

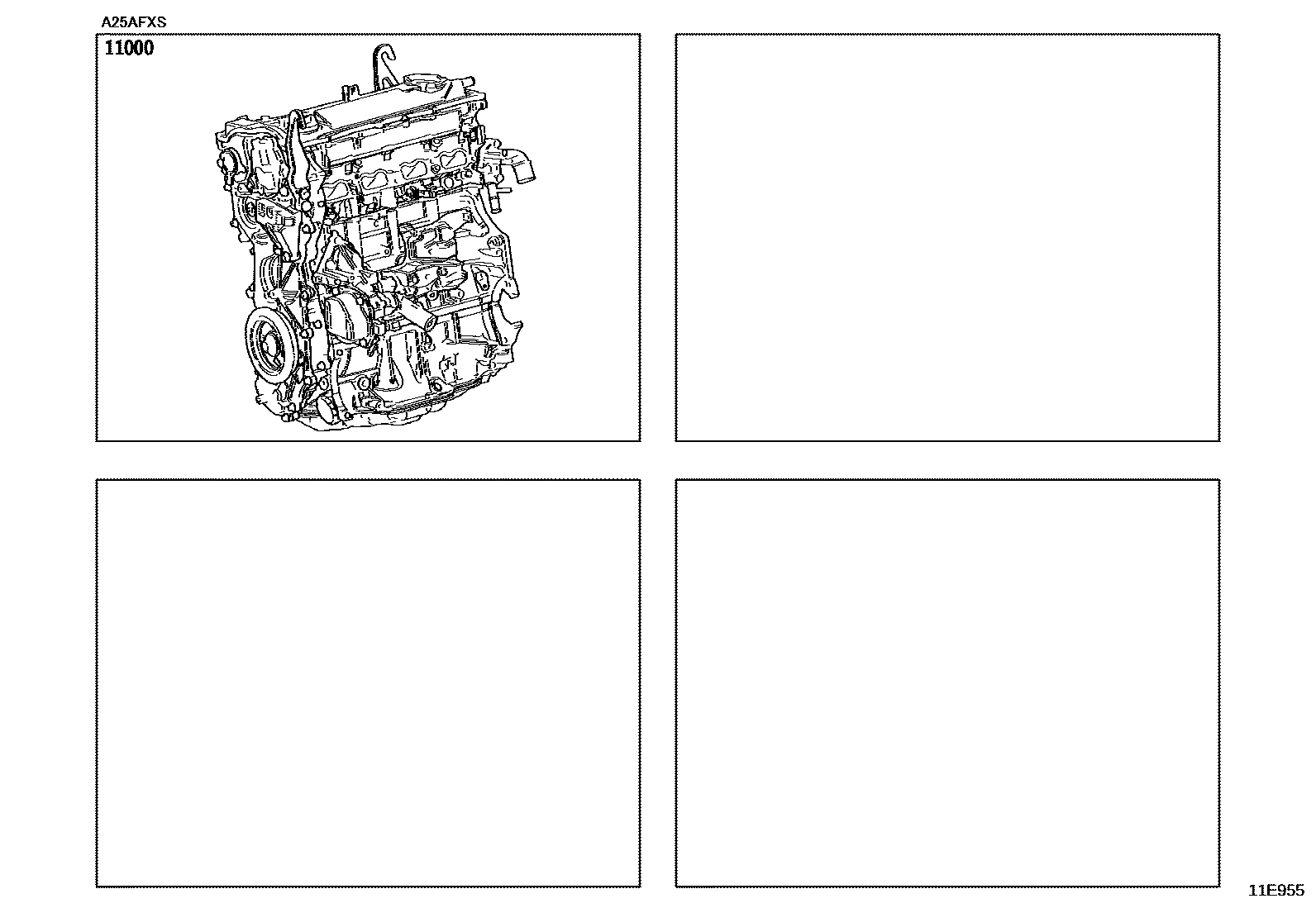

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-25240i¥601,000202006-202112

main19000-25350i¥546,000202112-202210

main19000-25350i¥546,000202210

main19000-25350i¥546,000202310

1 parts on this diagram · 1 diagram in section
