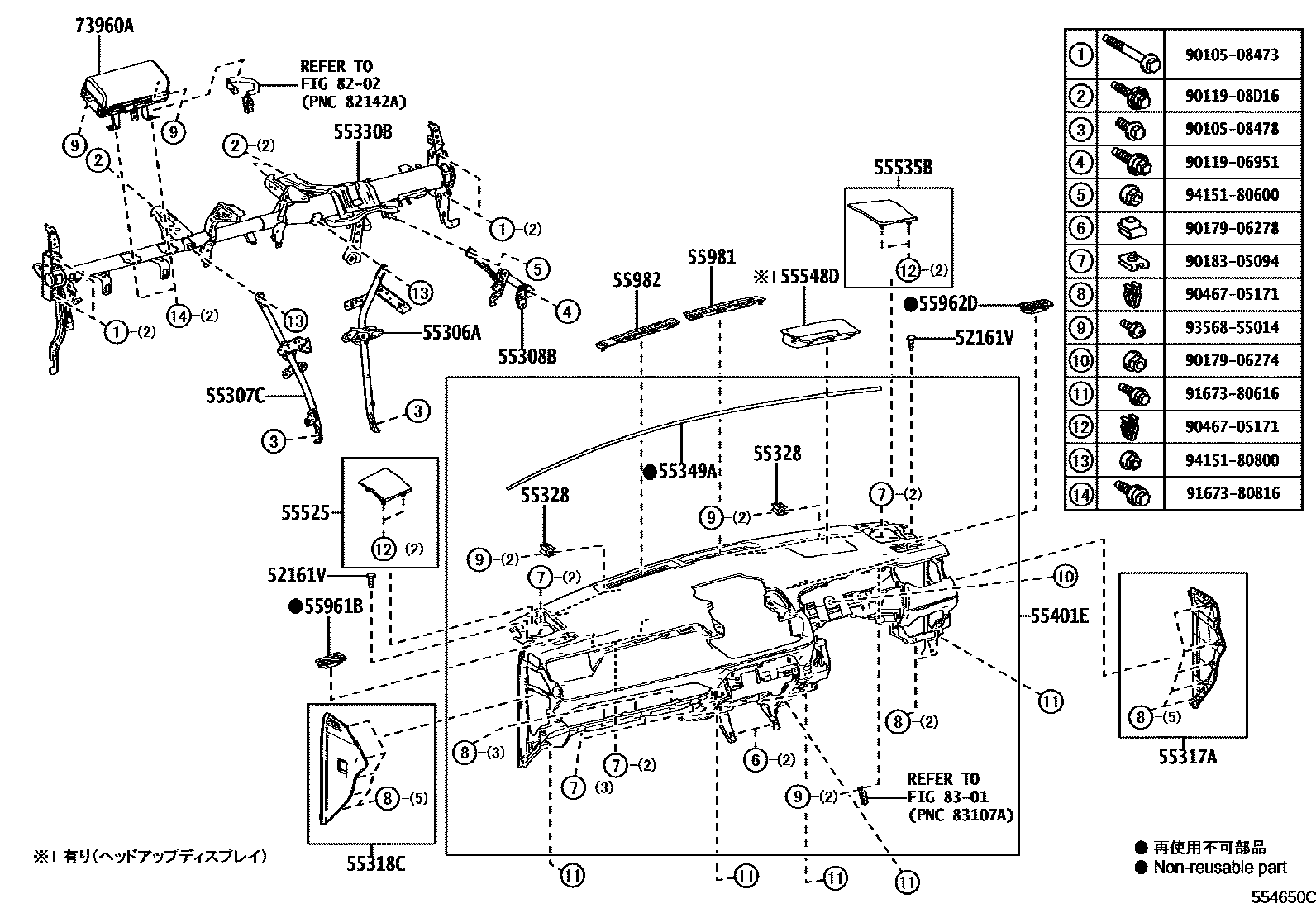

Toyota RAV4 PHV — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

52161VPIECE, INSTRUMENT PANEL

main52161-16010iAXAP54..Z¥120202006-202310

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42160iAXAP54..Z¥2,250202006-202310

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-42100iAXAP54¥1,610202006-202310

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-42080iAXAP54¥1,470202006-202310

55317APANEL, INSTRUMENT SIDE, RH

main55317-42070-C0iAXAP54202006-202310

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-42030-C0iAXAP54202006-202310

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090iAXAP54¥340202006-202310

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-42340iAXAP54..G¥15,100202006-202210

main55330-42380iAXAP54..Z¥15,200202006-202310

55349ACUSHION, INSTRUMENT PANEL

main55349-42050iAXAP54¥1,090202006-202310

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-42050-25iAXAP54..G202006-202101

SOFT BLACK/RED,TRIM2#

sub55401-42190¥58,500

main55401-42120-C1iAXAP54..BLT202006-202101

SOFT BLACK/RED,TRIM2#

sub55401-42210¥58,500

main55401-42190-C0iAXAP54..X202101-202210

SOFT BLACK/RED,TRIM2#

main55401-42210-C0iAXAP54..Z202101-202310

SOFT BLACK/RED,TRIM2#

55525COVER, SPEAKER HOLE, NO.1

main55525-42040-C0iAXAP54202006-202310

BLACK,TRIM2#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-42030-C0iAXAP54202006-202310

BLACK,TRIM2#

55548DCOVER, INSTRUMENT PANEL HOLE

main55548-42070iAXAP54..BLT¥2,500202006-202310

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-42010-C0iAXAP54202006-202310

BLACK,TRIM2#

55962DNOZZLE, SIDE DEFROSTER, NO.2

main55962-42010-C0iAXAP54202006-202310

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-42040-C0iAXAP54202006-202310

BLACK,TRIM2#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-42040-C0iAXAP54202006-202310

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-42110iAXAP54¥75,600202006-202310

8202

8301

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9011906951

main90119-06951¥80

9011908D16

main90119-08D16¥100

9017906274

main90179-06274¥70

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

33 parts on this diagram · 4 diagrams in section
