Toyota RAV4 PHV — IGNITION COIL & SPARK PLUG / GLOW PLUG

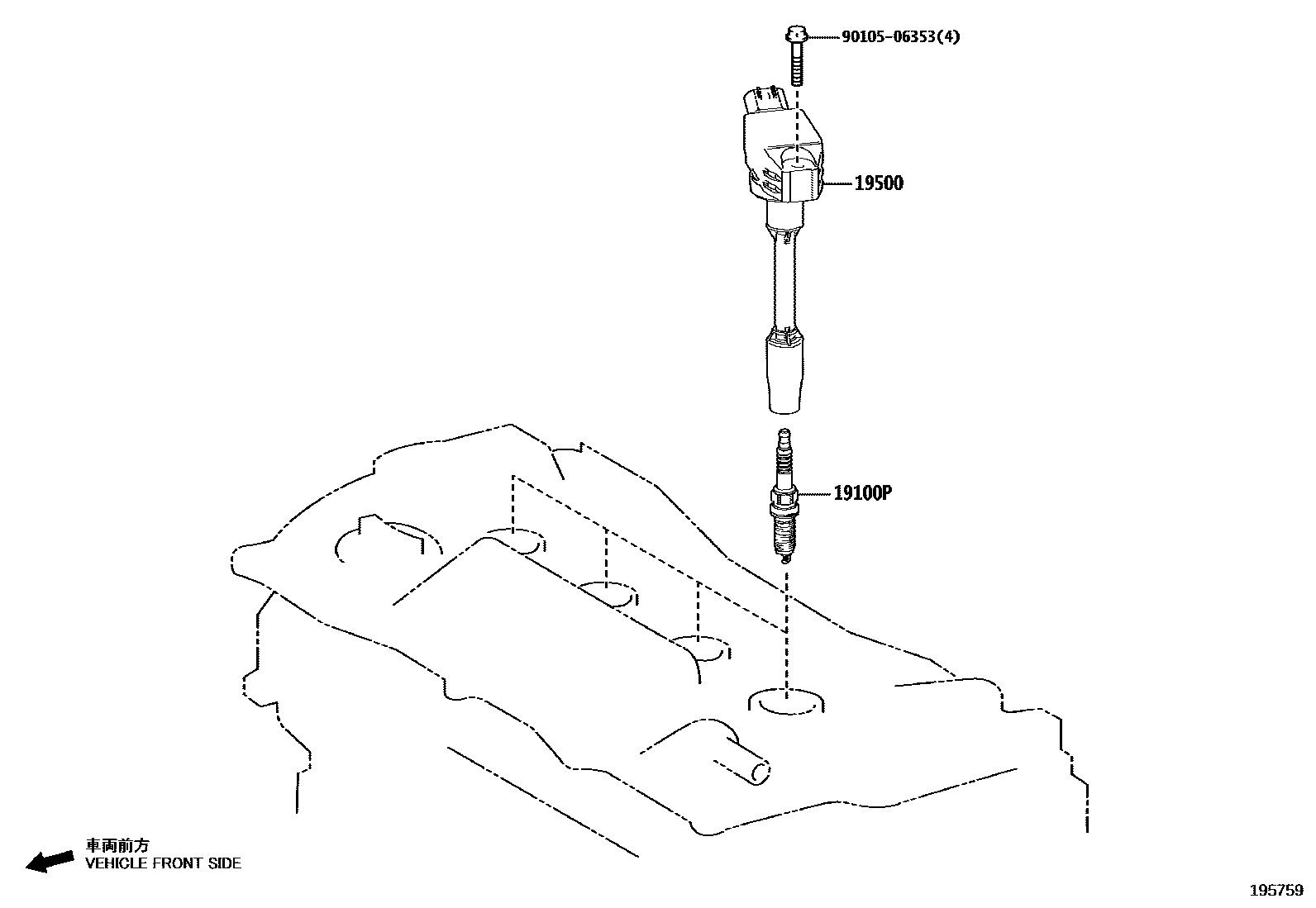

Parts diagram

19100PPLUG, SPARK

main90919-01289i¥2,300202006-202310

19500COIL ASSY, IGNITION

main90919-02277i¥7,500202006-202310

9010506353

main90105-06353¥60

3 parts on this diagram · 1 diagram in section
