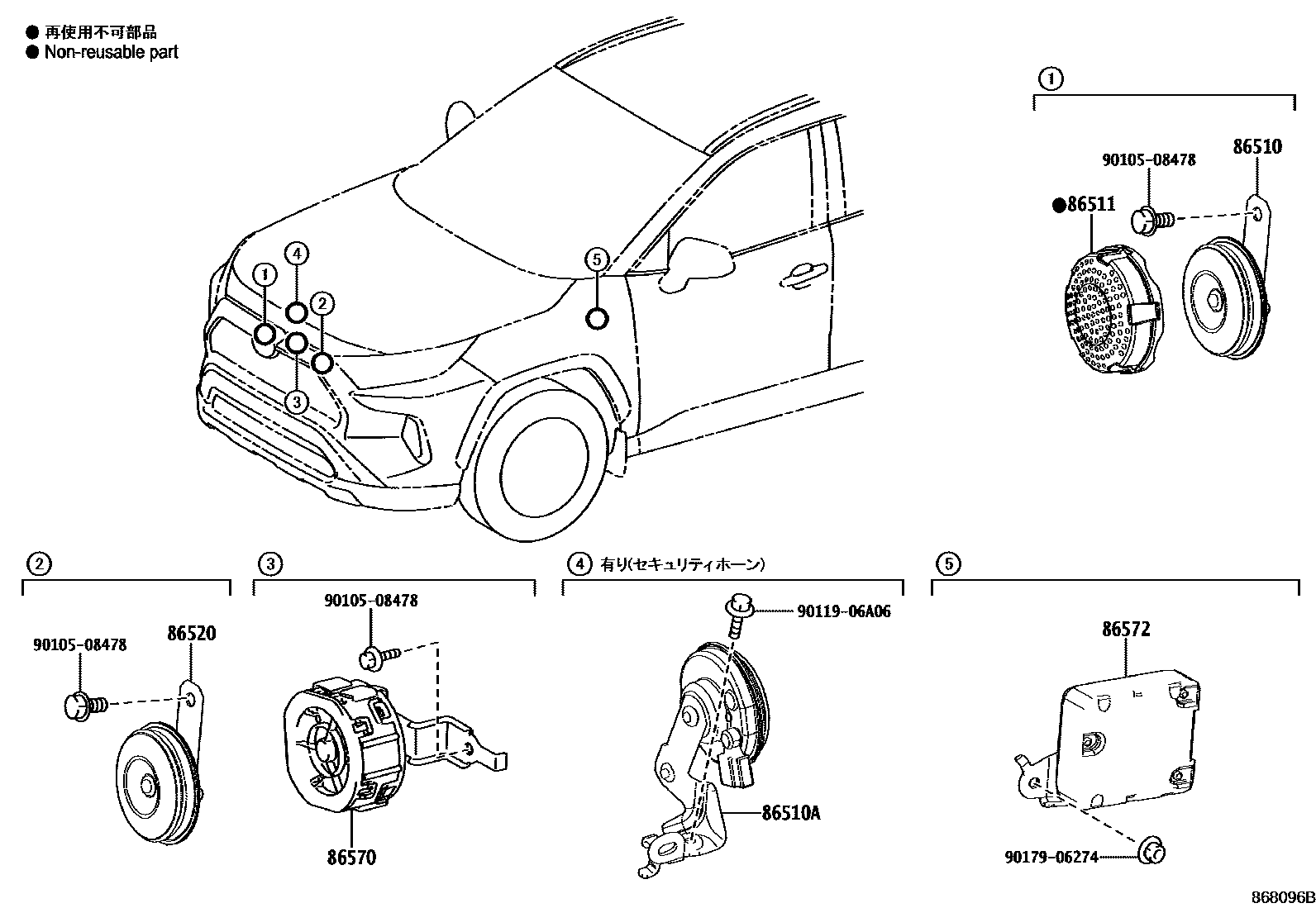

Toyota RAV4 PHV — HORN

86510HORN ASSY, HIGH PITCHED

main86510-20280iAXAP54¥2,190202006-202310

86510AHORN ASSY, SECURITY

main86560-33060iAXAP54¥2,190202006-202310

86511COVER, HIGH PITCHED HORN

main86511-42010iAXAP54¥400202006-202310

86520HORN ASSY, LOW PITCHED

main86520-20300iAXAP54¥2,190202006-202310

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-42030iAXAP54202006-202310

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-42070iAXAP54202006-202112

main86572-42130iAXAP54202112-202310

main865H2-42060iAXAP54..Z202310

9010508478

main90105-08478¥80

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

9 parts on this diagram · 1 diagram in section
