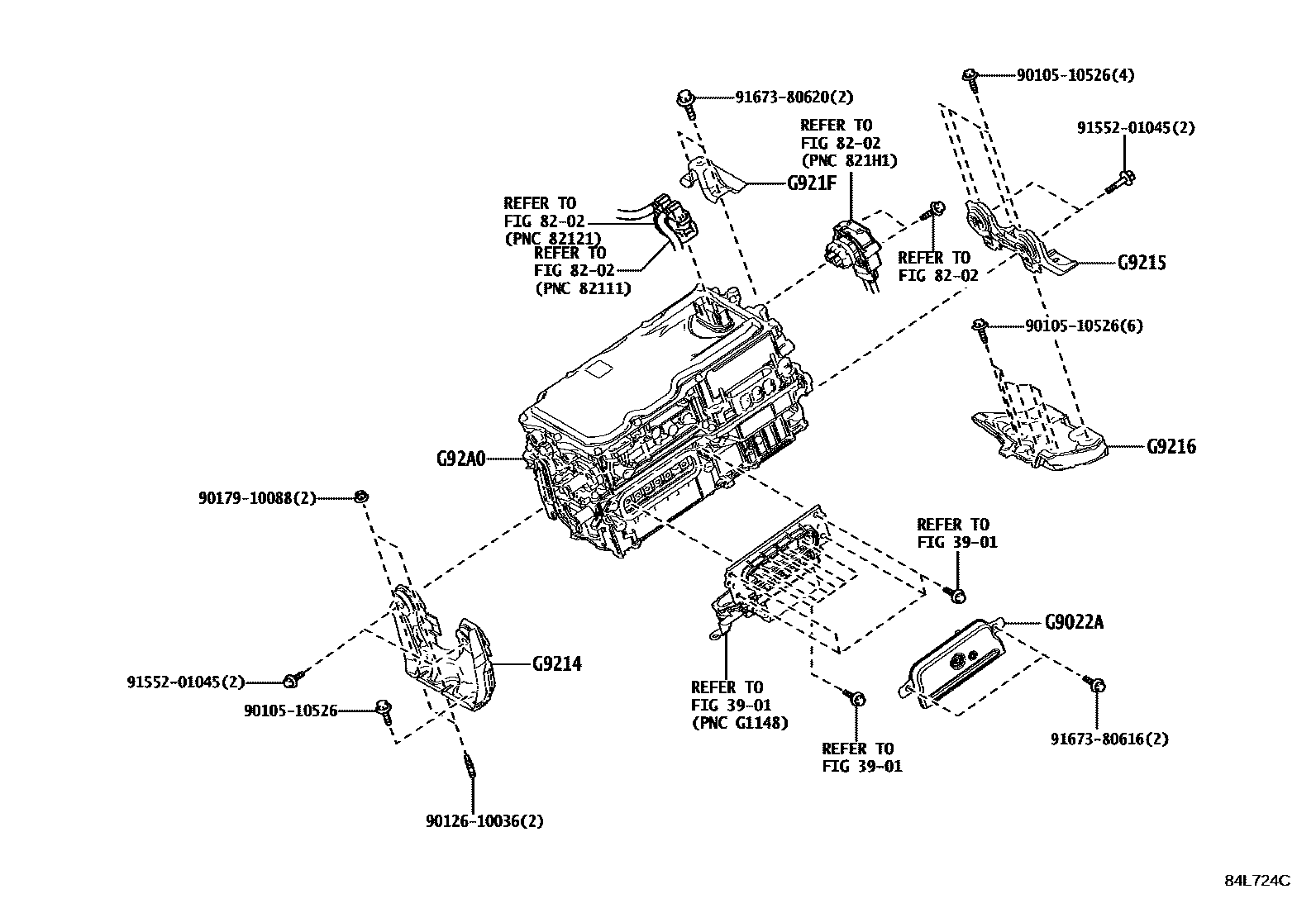

Toyota RAV4 PHV — HEV INVERTER

0001 1 0002 1HV���������

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iAXAP54202006-202310

G9214BRACKET, INVERTER, NO.1

mainG921442010iAXAP54202006-202310

G9215BRACKET, INVERTER, NO.2

mainG921542020iAXAP54..Z202006-202310

G9216BRACKET, INVERTER, NO.3

mainG921642020iAXAP54202006-202310

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010iAXAP54202006-202310

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A042110iAXAP54202006-202108

subG92A0-42111¥464,000

mainG92A042111iAXAP54202109-202206

mainG92A042112iAXAP54202207-202306

subG92A0-42113¥422,000

mainG92A042113iAXAP54202307-202506

9010510526

main90105-10526¥100

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

9155201045

main91552-01045¥120

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

14 parts on this diagram · 2 diagrams in section
