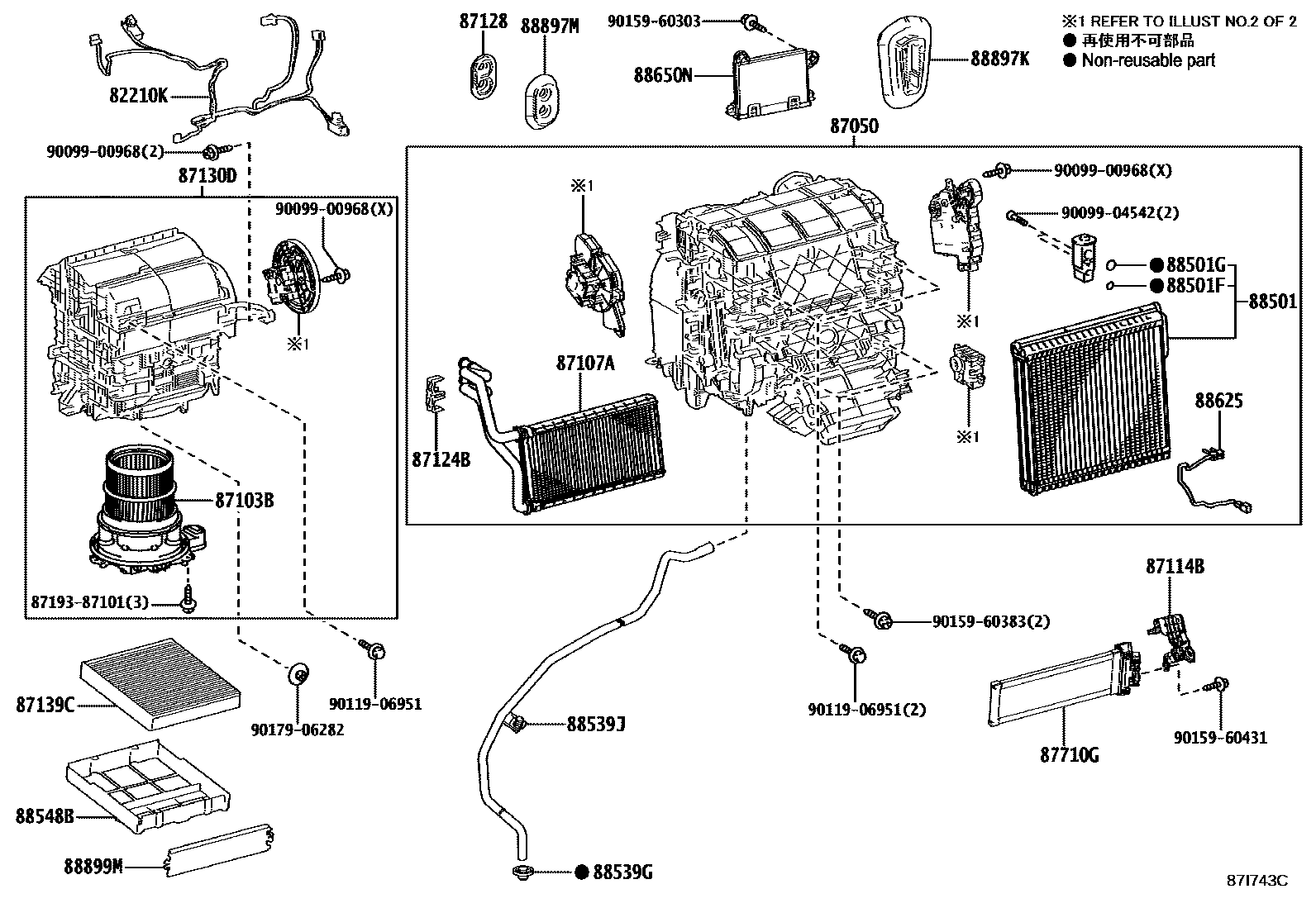

Toyota RAV4 PHV — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124BCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
�E�L�t�B���^
�E�L�t�B���^
�E�L�t�B���^
�E�L�t�B���^
�E�L�t�B���^
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
���a���P�O�D�W�C�O�a���P�T�D�U
���a���P�O�D�W�C�O�a���P�T�D�U
���a���P�O�D�W�C�O�a���P�T�D�U
���a���P�O�D�W�C�O�a���P�T�D�U
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
���a���P�R�D�S�C�O�a���P�W�D�Q
���a���P�R�D�S�C�O�a���P�W�D�Q
���a���P�R�D�S�C�O�a���P�W�D�Q
���a���P�R�D�S�C�O�a���P�W�D�Q
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
sub88650-42861
sub88650-42862
sub88650-42863
sub88650-42A71
sub88650-42A72
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
9009900968
main90099-00968
9009904542
9011906951
9015960303
9015960383
9015960431
9017906282
29 parts on this diagram · 2 diagrams in section
