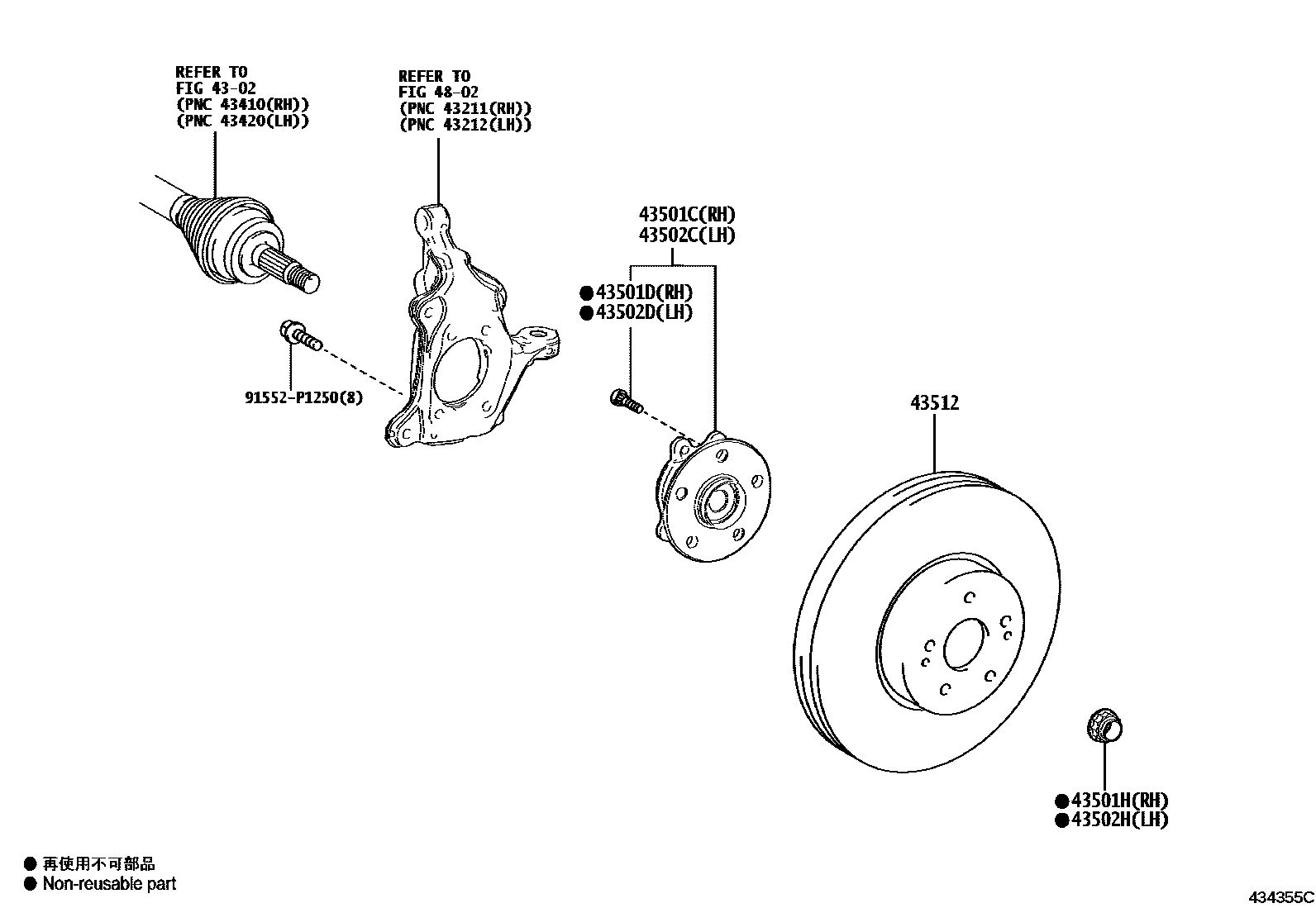

Toyota RAV4 PHV — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42030iAXAP54..Z¥13,600202006-202310

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAXAP54¥240202006-202310

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXAP54¥220202006-202310

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42030iAXAP54..X¥13,600202006-202310

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAXAP54..Z¥240202006-202310

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXAP54..X¥220202006-202310

43512DISC, FRONT

main43512-42070iAXAP54¥10,400202112-202310

main43512-48140iAXAP54¥11,500202006-202112

4802

91552P1250

main91552-P1250¥190

10 parts on this diagram · 1 diagram in section
