Toyota RAV4 PHV — FLOOR INSULATOR

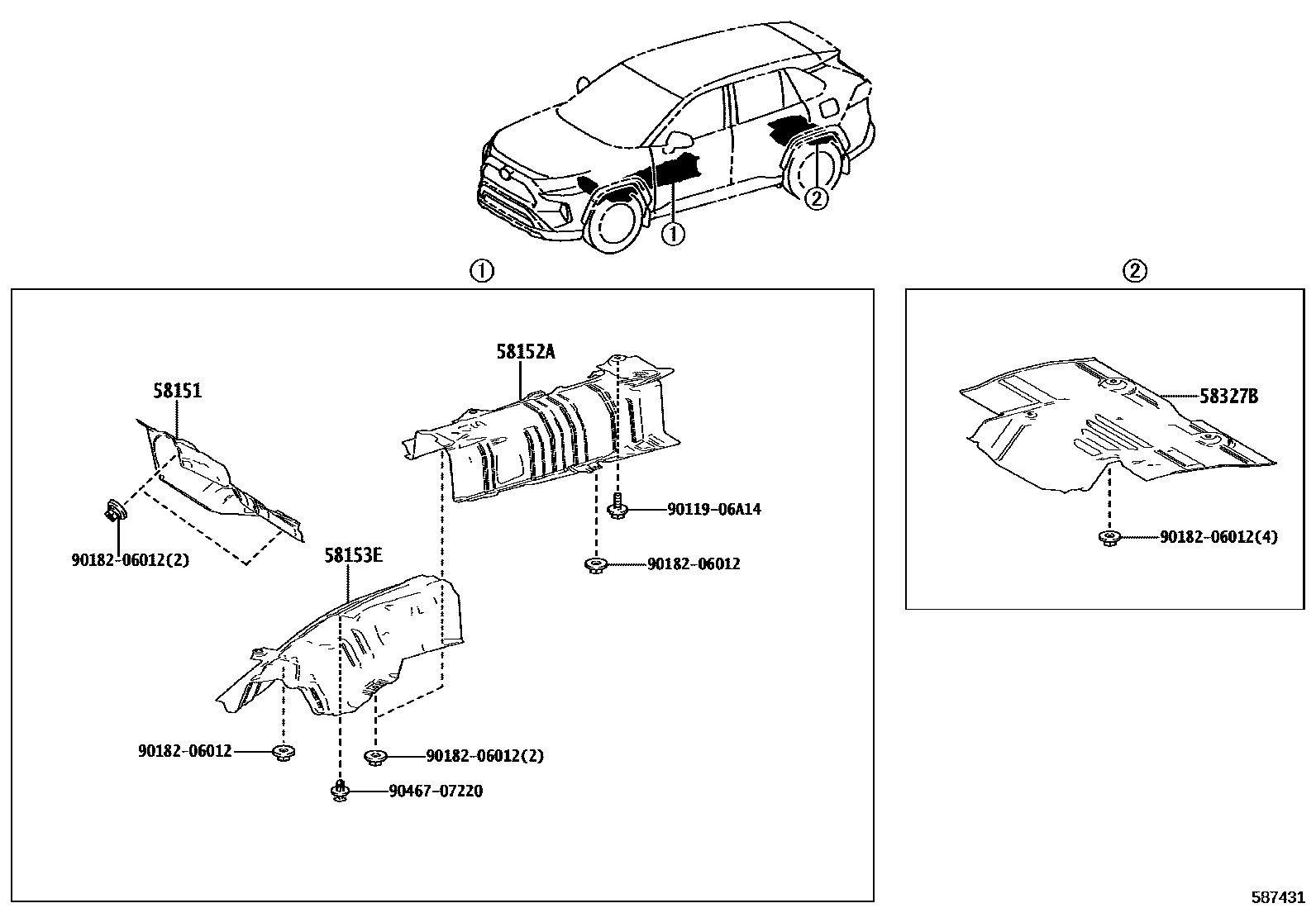

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-42070i¥2,090202006-202310

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-42080i¥3,610202006-202310

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-42030i¥3,910202006-202310

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-42040i¥4,730202006-202310

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9046707220

main90467-07220¥80

7 parts on this diagram · 1 diagram in section
