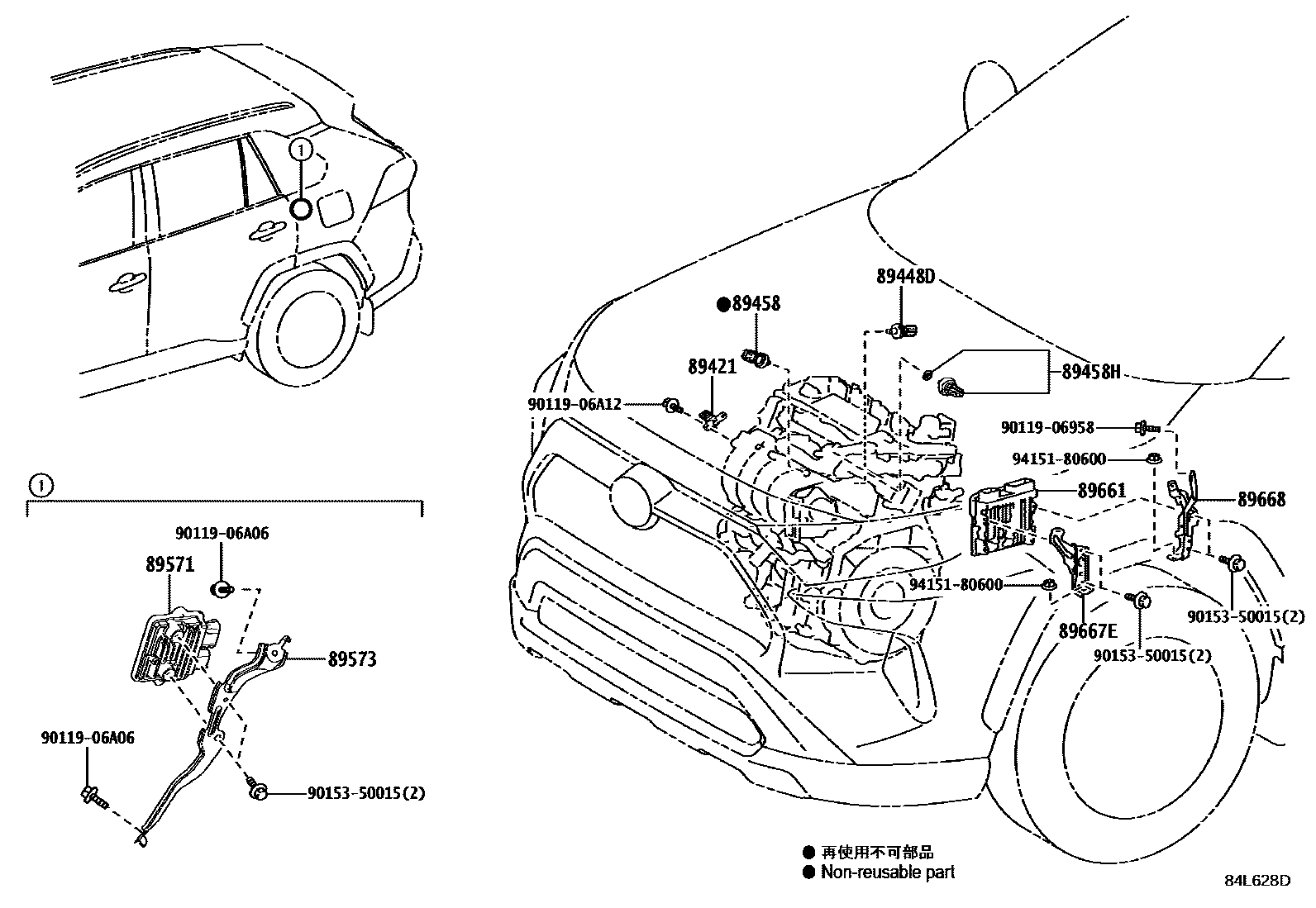

Toyota RAV4 PHV — ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXAP54..Z¥5,900202006-202310

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXAP54¥5,700202006-202310

89458SENSOR, FUEL PRESSURE

main89458-33030iAXAP54¥4,320202006-202310

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAXAP54¥4,760202006-202303

main89458-33042iAXAP54¥4,320202207-202210

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAXAP54..Z¥9,900202006-202310

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-42030iAXAP54¥910202006-202310

89661COMPUTER, ENGINE CONTROL

main89661-4A880iAXAP54¥78,100202006-202112

main89661-4AF20iAXAP54¥89,100202112-202210

main89661-4AQ20iAXAP54¥89,100202210-202309

sub89661-4AQ21¥89,100

main89661-4AQ21iAXAP54..X¥89,100202310-202402

main89661-4AU00iAXAP54..Z¥89,100202402

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42080iAXAP54¥700202006-202405

main89667-42081iAXAP54..Z¥650202406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42100iAXAP54¥910202006-202310

9011906958

main90119-06958¥60

9011906A06

main90119-06A06¥60

9011906A12

main90119-06A12¥60

9015350015

main90153-50015¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
