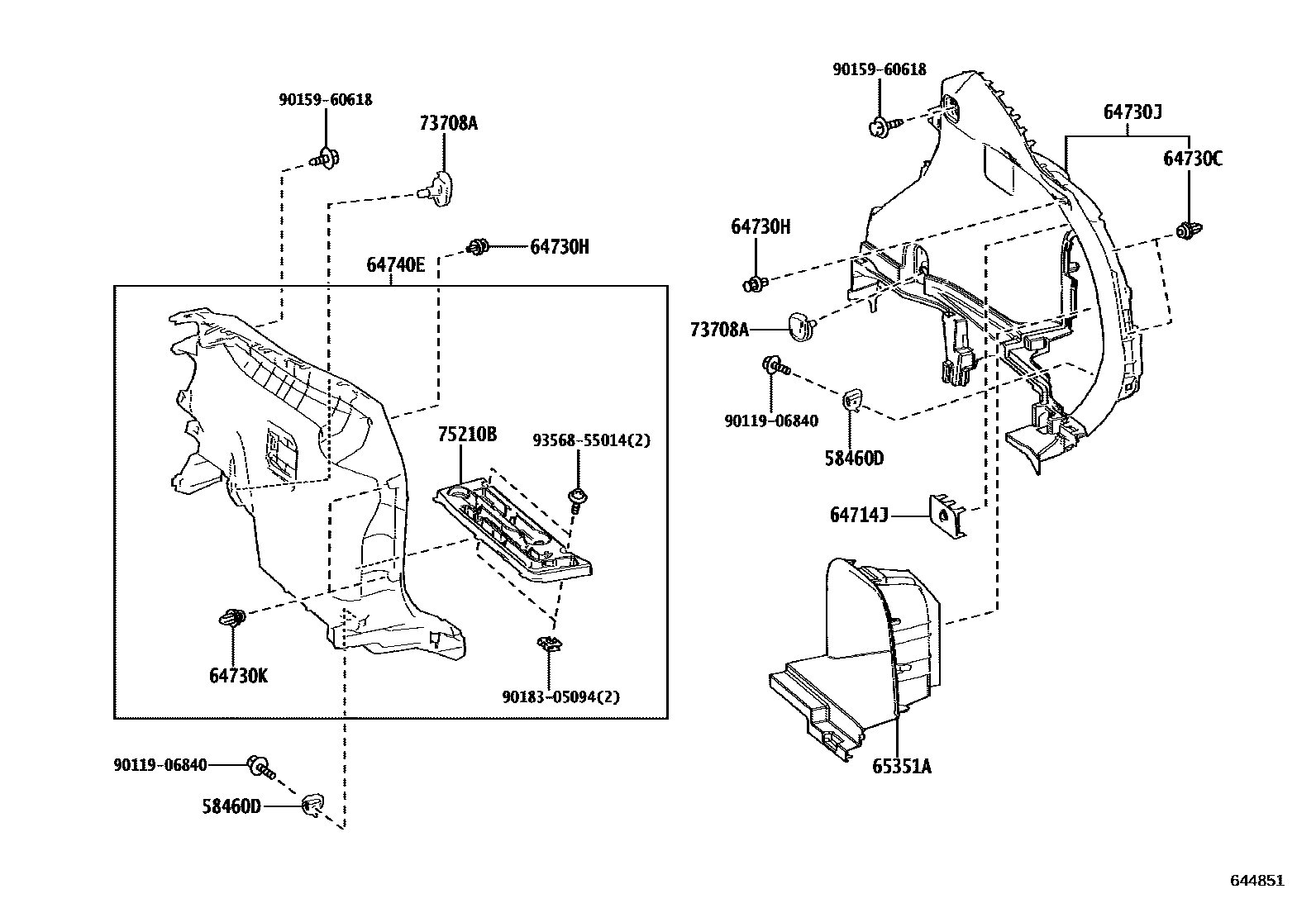

Toyota RAV4 PHV — DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iAXAP54¥620202006-202310

64714JCOVER, DECK SIDE TRIM, RH

main64714-42100-C0iAXAP54202006-202112

BLACK,TRIM2#

main64714-42110-C0iAXAP54202112-202310

BLACK,TRIM2#

64730CBOARD, DECK TRIM SIDE, RH

main90467-10161iAXAP54¥90202006-202310

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09242iAXAP54¥120202006-202310

64730JPANEL ASSY, DECK TRIM SIDE, RH

main64730-42280-C0iAXAP54202006-202310

BLACK,TRIM2#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iAXAP54¥90202006-202310

64740EPANEL ASSY, DECK TRIM SIDE, LH

main64740-42240-C0iAXAP54202006-202310

BLACK,TRIM2#

65351ACOVER, BATTERY HOLE

main65351-42020-C0iAXAP54202006-202310

BLACK,TRIM2#

73708ABRACKET SET, TETHER ANCHOR

main73708-42060-C1iAXAP54202006-202310

BLACK,TRIM2#

sub73708-42060¥2,910

75210BBOX ASSY, TOOL

main75210-42010-C0iAXAP54202006-202310

BLACK,TRIM2#

9011906840

main90119-06840¥60

9015960618

main90159-60618¥60

9018305094

main90183-05094¥90

9356855014

main93568-55014¥70

14 parts on this diagram · 2 diagrams in section
