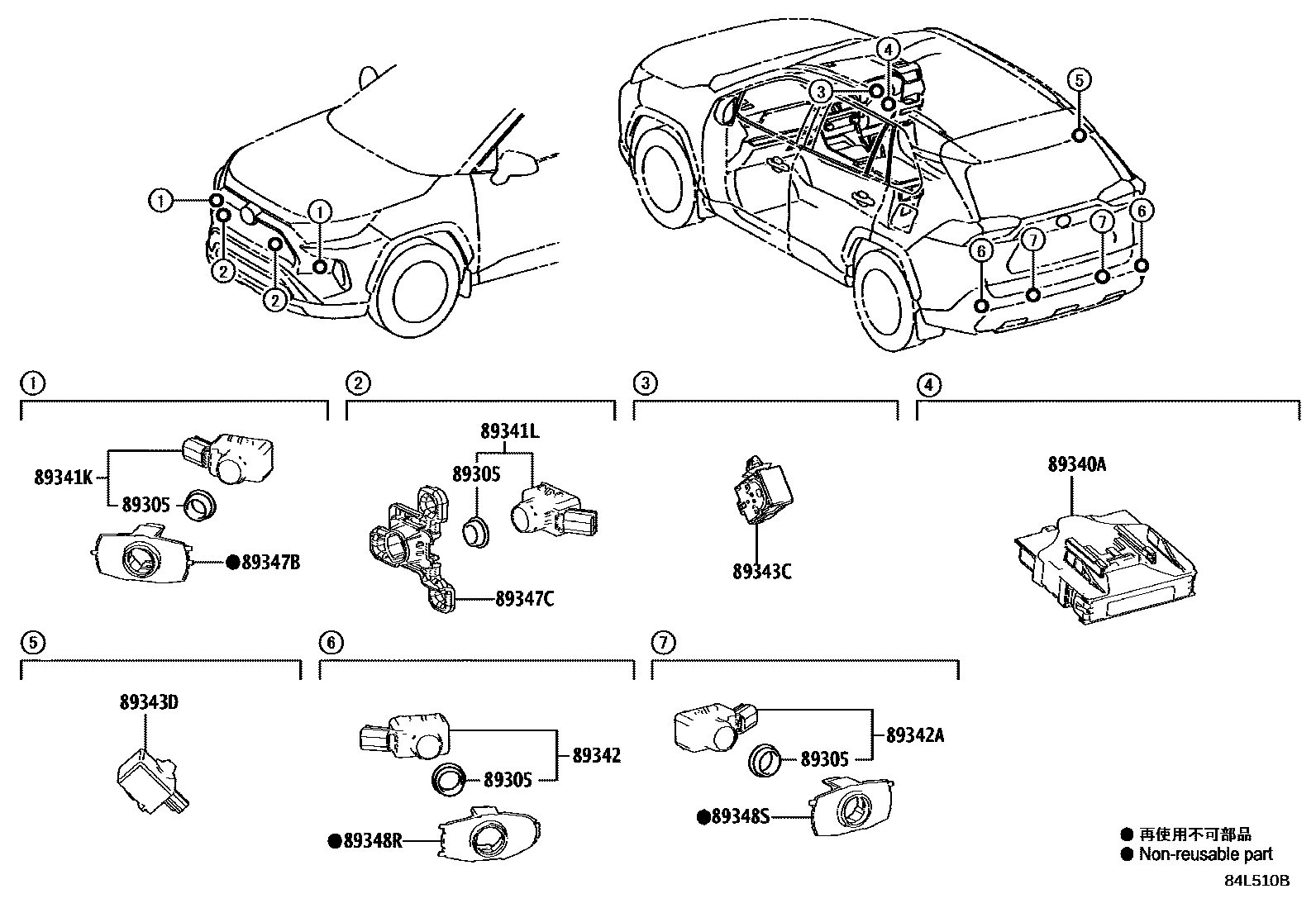

Toyota RAV4 PHV — CLEARANCE & BACK SONAR
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8
89341LSENSOR, ULTRASONIC, FRONT CENTER
ATTITUDE BLACK MC.,070 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
ATTITUDE BLACK MC.,070 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
89342ASENSOR, ULTRASONIC, REAR CENTER
ATTITUDE BLACK MC.,070 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,3U5 ,8X8
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89347CRETAINER, ULTRASONIC SENSOR, FRONT CENTER
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
ATTITUDE BLACK MC.,070 ,1D6 ,1G3 ,218 ,2QJ ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
sub89348-30480
ATTITUDE BLACK MC.,089 ,1D6 ,1G3 ,218 ,2PS ,2QY ,2QZ ,2RA ,2SC ,3U5 ,8X8
sub89348-30480
12 parts on this diagram · 1 diagram in section
