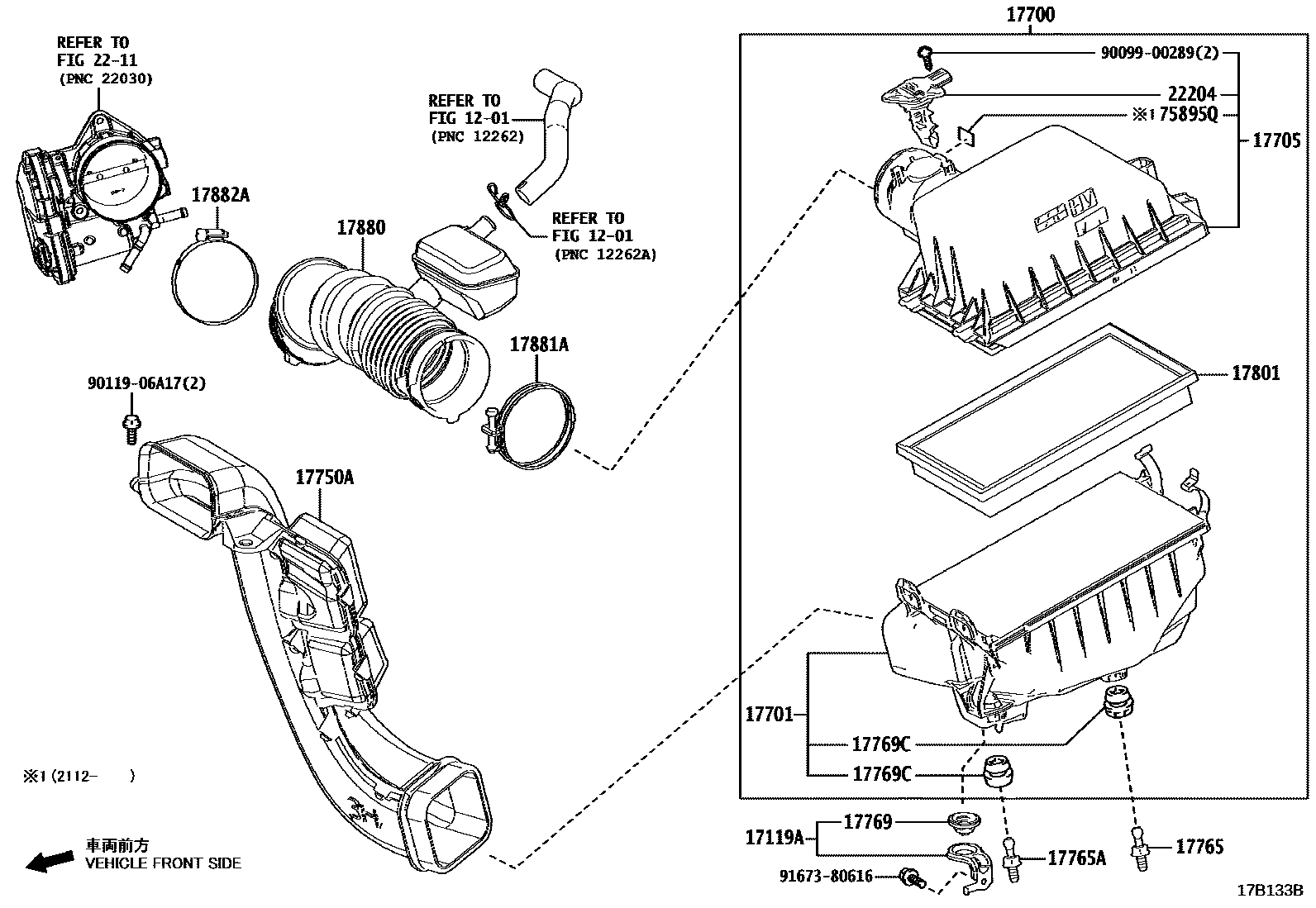

Toyota RAV4 PHV — AIR CLEANER

1201

17119ABRACKET, AIR CLEANER

main17119-25010iA25AFXS..AXAP54¥350202006-202310

17700CLEANER ASSY, AIR

main17700-25101iA25AFXS..AXAP54¥17,300202006-202310

17701CASE SUB-ASSY, AIR CLEANER

main17701-25081iA25AFXS..AXAP54202006-202310

17705CAP SUB-ASSY, AIR CLEANER

main17705-25070iA25AFXS..AXAP54202006-202310

17750AINLET ASSY, AIR CLEANER

main17750-25040iA25AFXS..AXAP54¥3,560202006-202310

17765STAY, AIR CLEANER, NO.1

main17765-25010iA25AFXS..AXAP54¥230202006-202310

17765ASTAY, AIR CLEANER, NO.1

main17765-25010iA25AFXS..AXAP54¥230202006-202310

17769SUPPORT, AIR CLEANER

main17769-25020iA25AFXS..AXAP54¥160202006-202310

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25030iA25AFXS..AXAP54¥200202006-202310

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050iA25AFXS..AXAP54¥2,700202006-202310

17880HOSE ASSY, AIR CLEANER

main17880-25040iA25AFXS..AXAP54¥3,110202006-202310

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AXAP54¥240202006-202310

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AXAP54¥710202006-202310

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25AFXS..AXAP54¥9,400202006-202310

75895QTAPE, MOULDING, NO.1

main75895-52050iAXAP54¥260202112-202310

9009900289

main90099-00289¥60

9011906A17

main90119-06A17¥60

9167380616

main91673-80616¥60

20 parts on this diagram · 1 diagram in section
