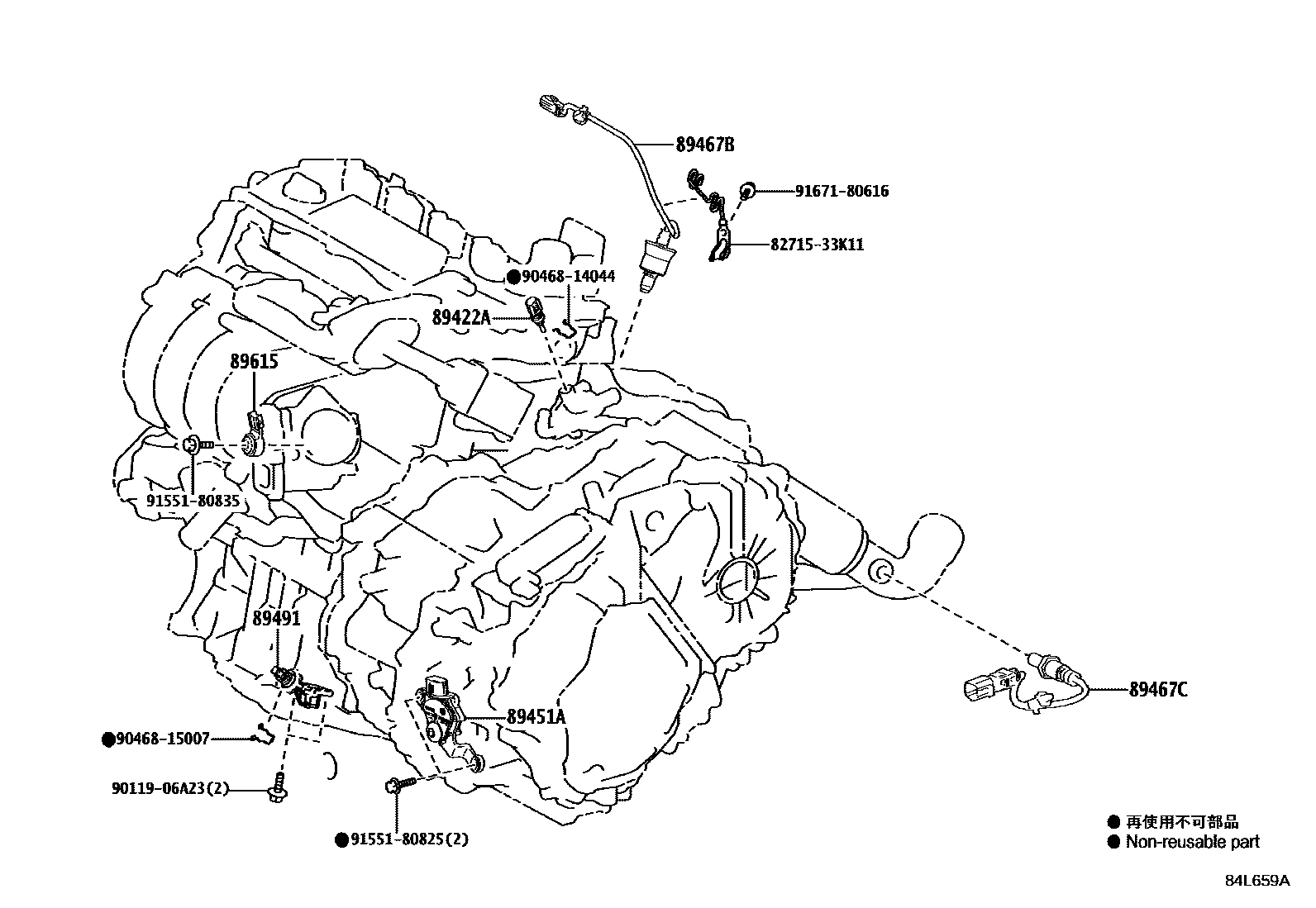

Toyota RAV4 PHEV — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM RELAY BLOCK 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1CONSOLE BOX 0007 1STEERING 0008 1SEAT 0009 1DOOR & ROOF 0010 1FLOOR & BACK DOOR 0011 1FLOOR RELAY BLOCK

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXAP54¥2,410202006-202210

main89422-33040iAXAP54¥2,410202210-202310

main89422-33040iAXAP54¥2,410202310

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXAP54¥5,900202210-202310

main89451-10010iAXAP54¥5,900202006-202210

main89451-10010iAXAP54¥5,900202310

89467BSENSOR, AIR FUEL RATIO

main89467-33290iAXAP54¥9,900202006-202210

main89467-33290iAXAP54¥9,900202210-202310

main89467-33290iAXAP54¥9,900202310

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42190iAXAP54¥9,900202006-202210

main89467-42190iAXAP54¥9,900202210-202310

main89467-42190iAXAP54¥9,900202310

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iAXAP54¥3,670202006-202204

sub89491-33052¥3,330

main89491-33052iAXAP54¥3,330202205-202210

main89491-33052iAXAP54¥3,330202210-202310

main89491-33052iAXAP54¥3,330202310

89615SENSOR, KNOCK CONTROL

main89615-20090iAXAP54¥2,370202006-202210

main89615-20090iAXAP54¥2,370202210-202310

main89615-20090iAXAP54¥2,370202310

8271533K11BRACKET,WIRING HARNESS CLAMP

main82715-33K11¥300

9011906A23

main90119-06A23¥60

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180825

main91551-80825¥80

9155180835

main91551-80835¥80

9167180616

main91671-80616¥60

13 parts on this diagram · 11 diagrams in section
