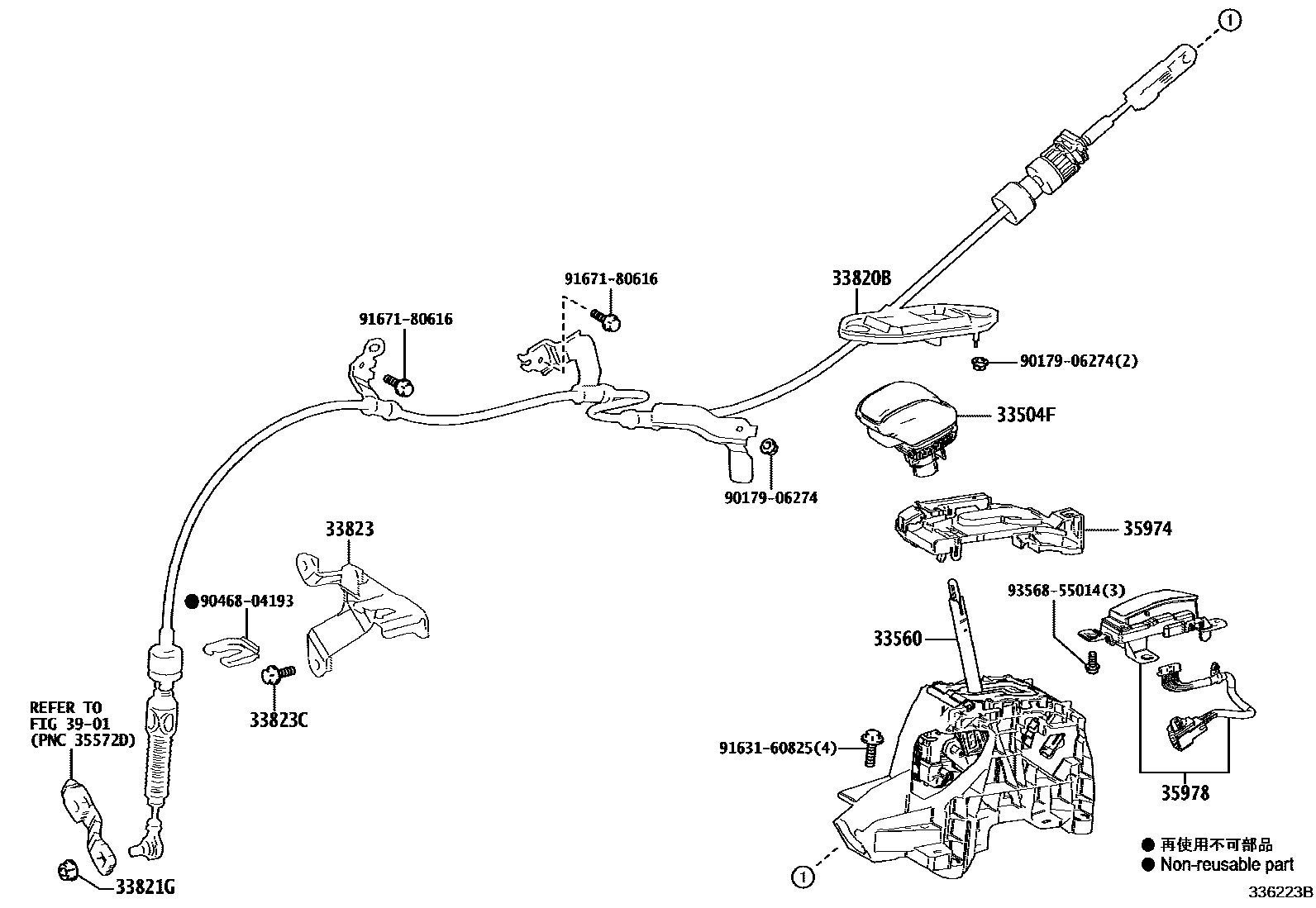

Toyota RAV4 PHEV — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-40050-C0iAXAP54202006-202210

BLACK,TRIM2#

main33542-40050-C0iAXAP54202210-202310

BLACK,TRIM2#

main33542-40050-C0iAXAP54202310

BLACK,TRIM2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12650iAXAP54202006-202210

main33560-12650iAXAP54202210-202310

main33560-12650iAXAP54202310

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-42520iAXAP54¥13,400202006-202210

main33820-42520iAXAP54¥13,400202210-202310

main33820-42520iAXAP54¥13,400202310

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iAXAP54¥80202006-202210

main94151-80800iAXAP54¥80202210-202310

main94151-80800iAXAP54¥80202310

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-42050iAXAP54¥1,150202006-202210

main33823-42050iAXAP54¥1,150202210-202310

main33823-42050iAXAP54¥1,150202310

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820iAXAP54¥80202006-202210

main91671-80820iAXAP54¥80202210-202310

main91671-80820iAXAP54¥80202310

35974HOUSING, POSITION INDICATOR, LOWER

main35974-42040iAXAP54202006-202210

main35974-42040iAXAP54202210-202310

main35974-42040iAXAP54202310

35978INDICATOR, SHIFT POSITION

main35978-42050iAXAP54202006-202210

main35978-42050iAXAP54202210-202310

main35978-42050iAXAP54202310

3901

9017906274

main90179-06274¥70

9046804193

main90468-04193¥160

9163160825

main91631-60825¥80

9167180616

main91671-80616¥60

9356855014

main93568-55014¥70

14 parts on this diagram · 1 diagram in section
