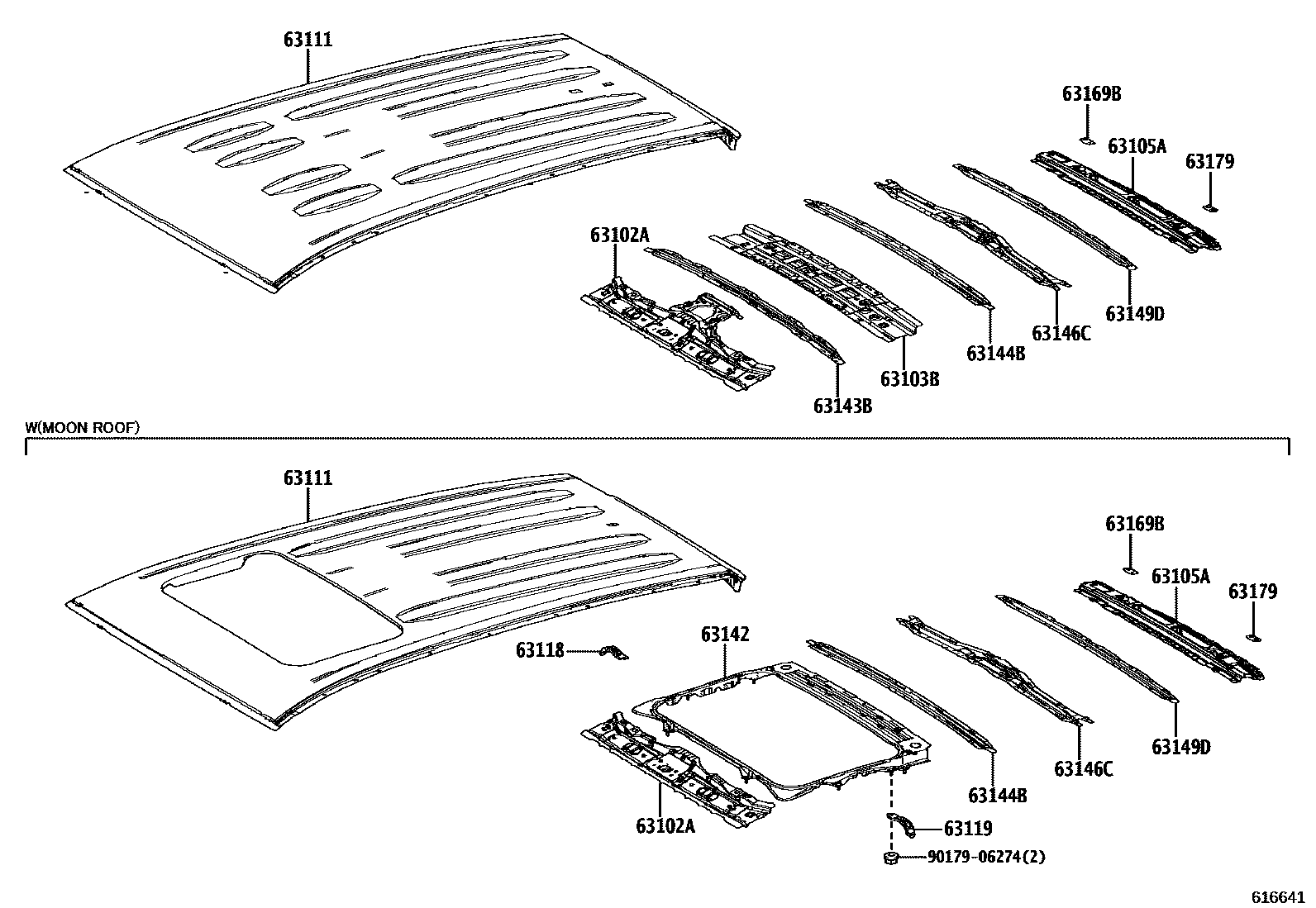

Toyota RAV4 PHEV — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORMAL OR MOON ROO0002 1ROOF PANEL(PANORAMIC ROOF) 0003 1MOON ROOF 0004 1PANORAMIC ROOF 0005 1ROOF RAIL 0006 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-42910iAXAP54..SE¥6,200202006-202310

main63102-42911iAXAP54..XSE¥5,500202006-202310

MOON ROOF-WITH

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-42040iAXAP54..SE¥8,500202006-202310

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-42050iAXAP54¥5,400202006-202310

63111PANEL, ROOF

main63111-42260iAXAP54..SE¥49,400202006-202112

main63111-42261iAXAP54..SE¥44,900202112-202310

main63111-42280iAXAP54..SE¥49,400202006-202112

MOON ROOF-WITH

main63111-42281iAXAP54..XSE202112-202310

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-42080iAXAP54..XSE¥520202006-202310

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-42080iAXAP54..SE¥520202006-202310

MOON ROOF-WITH

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-42060iAXAP54..XSE¥6,600202006-202310

MOON ROOF-WITH

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-42070iAXAP54..SE¥1,420202006-202310

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-42050iAXAP54¥2,360202006-202310

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-42010iAXAP54¥3,280202006-202310

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-42080iAXAP54¥1,650202006-202310

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iAXAP54¥200202006-202310

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iAXAP54¥200202006-202310

9017906274

main90179-06274¥70

14 parts on this diagram · 6 diagrams in section
