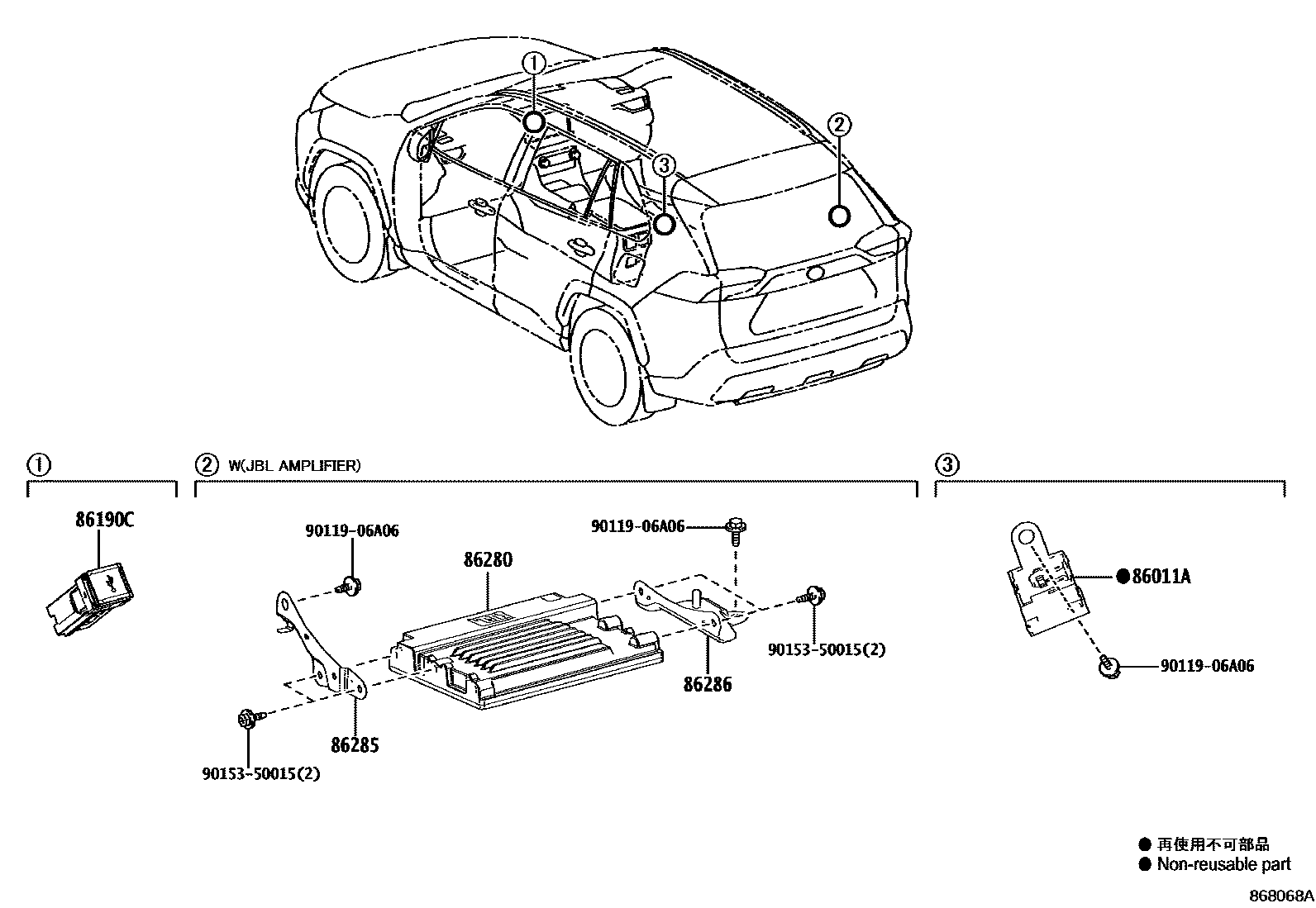

Toyota RAV4 PHEV — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04189iAXAP54¥700202006-202310

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-34010iAXAP54¥3,780202210-202310

main86190-42030iAXAP54¥5,000202006-202008

sub86190-42031¥4,160

main86190-42031iAXAP54¥4,160202009-202210

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-42060

main86280-42100

86285BRACKET, AMPLIFIER, NO.1

main86285-42050

86286BRACKET, AMPLIFIER, NO.2

main86286-42030

9011906A06

main90119-06A06¥60

9015350015

main90153-50015¥60

7 parts on this diagram · 2 diagrams in section
