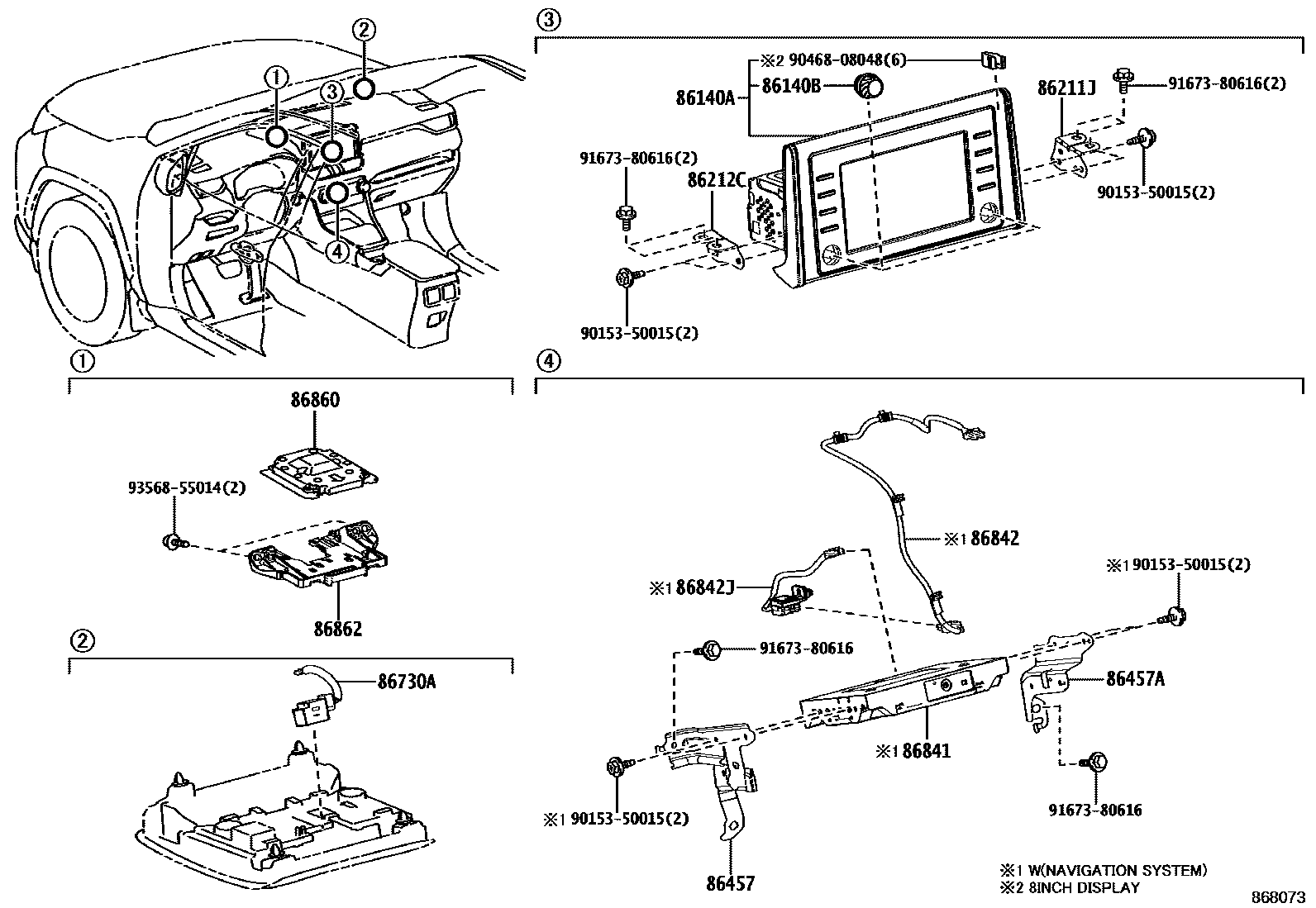

Toyota RAV4 PHEV — NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-42720iAXAP54..SE..CND202006-202210

PIONEER,HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAYT0 (NA)

main86140-42720iAXAP54..SE..USA202006-202210

PIONEER

main86140-42730iAXAP54..SE..USA202006-202210

PIONEER

main86140-42740iAXAP54..SE..USA202006-202210

DENSO TEN, E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM (USA)

main86140-42740iAXAP54..XSE..USA202006-202210

DENSO TEN

main86140-42770iAXAP54..XSE..CND202006-202210

DENSO TEN

main86140-42770iAXAP54..XSE..CND202006-202210

DENSO TEN, E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM

main86140-42N30iAXAP54..CND202210-202310

DENSO TEN

main86140-42N30iAXAP54..CND202310

DENSO TEN

main86140-42N40iAXAP54..USA202310

DENSO TEN

main86140-42N40iAXAP54..USA202210-202310

DENSO TEN

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-22132iAXAP54..SE202006-202210

main90010-23059iAXAP54..XSE202006-202210

E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM

main90010-23059iAXAP54..XSE202006-202210

E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM (USA)

main90010-23065iAXAP54202210-202310

main90010-23065iAXAP54202310

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-42110iAXAP54¥300202006-202210

main86211-42110iAXAP54¥300202210-202310

main86211-42110iAXAP54¥300202310

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-42110iAXAP54¥300202006-202210

main86212-42110iAXAP54¥300202210-202310

main86212-42110iAXAP54¥300202310

86457BRACKET, MULTI-MEDIA MODULE NO.1

main86457-42050iAXAP54..USA;AXAP54..XSE..CND202006-202210

HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)

main86457-42050iAXAP54..USA;AXAP54..XSE..CND202006-202210

E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM

main86457-42050iAXAP54202210-202310

main86457-42050iAXAP54202310

86457ABRACKET, MULTI-MEDIA MODULE NO.2

main86457-42060iAXAP54..SE..USA202006-202210

HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)

main86457-42060iAXAP54..SE..USA202006-202210

E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM

main86457-42060iAXAP54202210-202310

main86457-42060iAXAP54202310

86730AMICROPHONE ASSY, TELEPHONE

main86730-42080iAXAP54¥7,100202006-202210

main86730-42110iAXAP54¥6,400202210-202310

main86730-42110iAXAP54¥6,400202310

86841COMPUTER, NAVIGATION

main86840-35011

main86840-35012

main86840-35013

main86840-35014

main86840-35015

86842WIRE, NAVIGATION, NO.1

main86842-42020

main86842-42030

main86842-42120

86842JWIRE, NAVIGATION, NO.2

86860ANTENNA ASSY, NAVIGATION

main86880-42010iAXAP54¥8,500202210-202310

main86880-42010iAXAP54¥8,500202310

main86880-52020iAXAP54..SE..USA¥8,500202006-202210

HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)

main86880-52020iAXAP54..USA;AXAP54..XSE..CND¥8,500202006-202210

E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAXAP54..USA;AXAP54..XSE..CND¥940202006-202210

HAWAII SPEC&WITHOUT(REMOTE SERVICE PACKAGE)&AUDIO-6SPEAKER & 8INCH DISPLAY T0 (NA)

main86862-42010iAXAP54..USA;AXAP54..XSE..CND¥940202006-202210

E-CONNECT PACKAGE&AUDIO-6SPEAKER & 9INCH DISPLAY T1 & XM

main86862-48060iAXAP54¥970202210-202310

main86862-48060iAXAP54¥970202310

9015350015

main90153-50015¥60

9046808048

main90468-08048¥60

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

16 parts on this diagram · 2 diagrams in section
