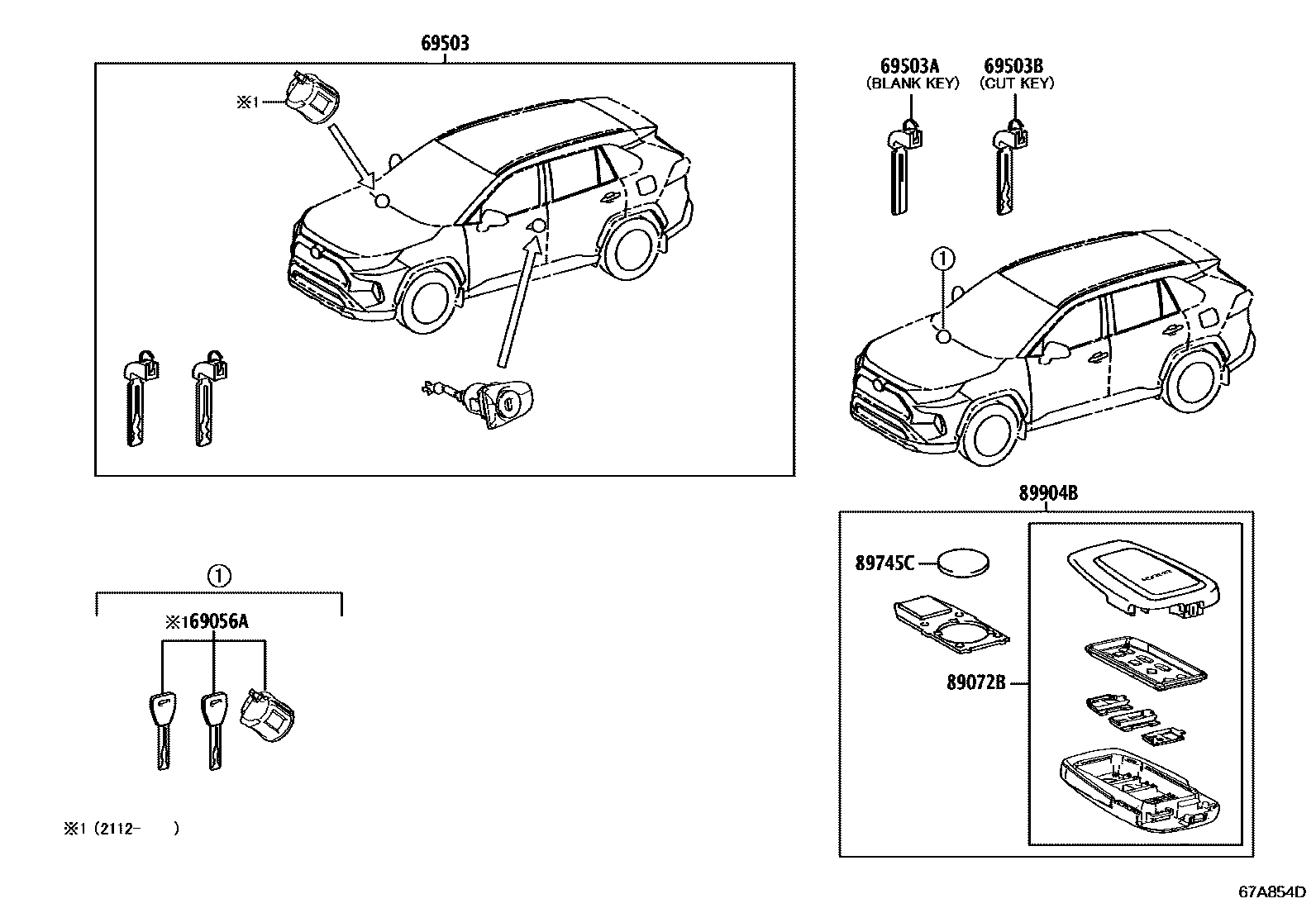

Toyota RAV4 PHEV — LOCK CYLINDER SET

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iAXAP54¥7,100202112-202310

69503CYLINDER SET, LOCK

main69005-42A20iAXAP54202006-202112

main69005-42B20iAXAP54202112-202310

69503AKEY, BLANK

main69515-K0020iAXAP54¥6,500202006-202310

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010iAXAP54¥7,100202006-202310

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-42A30iAXAP54..SE202006-202210

main89072-42A40iAXAP54..XSE202006-202210

main89072-42D40iAXAP54..SE202210-202310

main89072-42D50iAXAP54..XSE202210-202310

POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)

89745CBATTERY, TRANSMITTER

main89745-K0010iAXAP54¥440202006-202310

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-42370iAXAP54..SE202006-202201

sub8990H-42371

main8990H-42371iAXAP54..SE202202-202210

sub8990H-42372

main8990H-42380iAXAP54..XSE¥19,000202006-202201

sub8990H-42381

main8990H-42381iAXAP54..XSE202202-202210

POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)

sub8990H-42382

main8990H-42A40iAXAP54..SE202210-202403

sub8990H-42A41

main8990H-42A41iAXAP54..SE202404

main8990H-42A50iAXAP54..XSE202210-202403

POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)

sub8990H-42A51

main8990H-42A51iAXAP54..XSE202404

POWER DOOR LOCK-WITH(TWO OPERATION & *PBD)

7 parts on this diagram · 1 diagram in section
