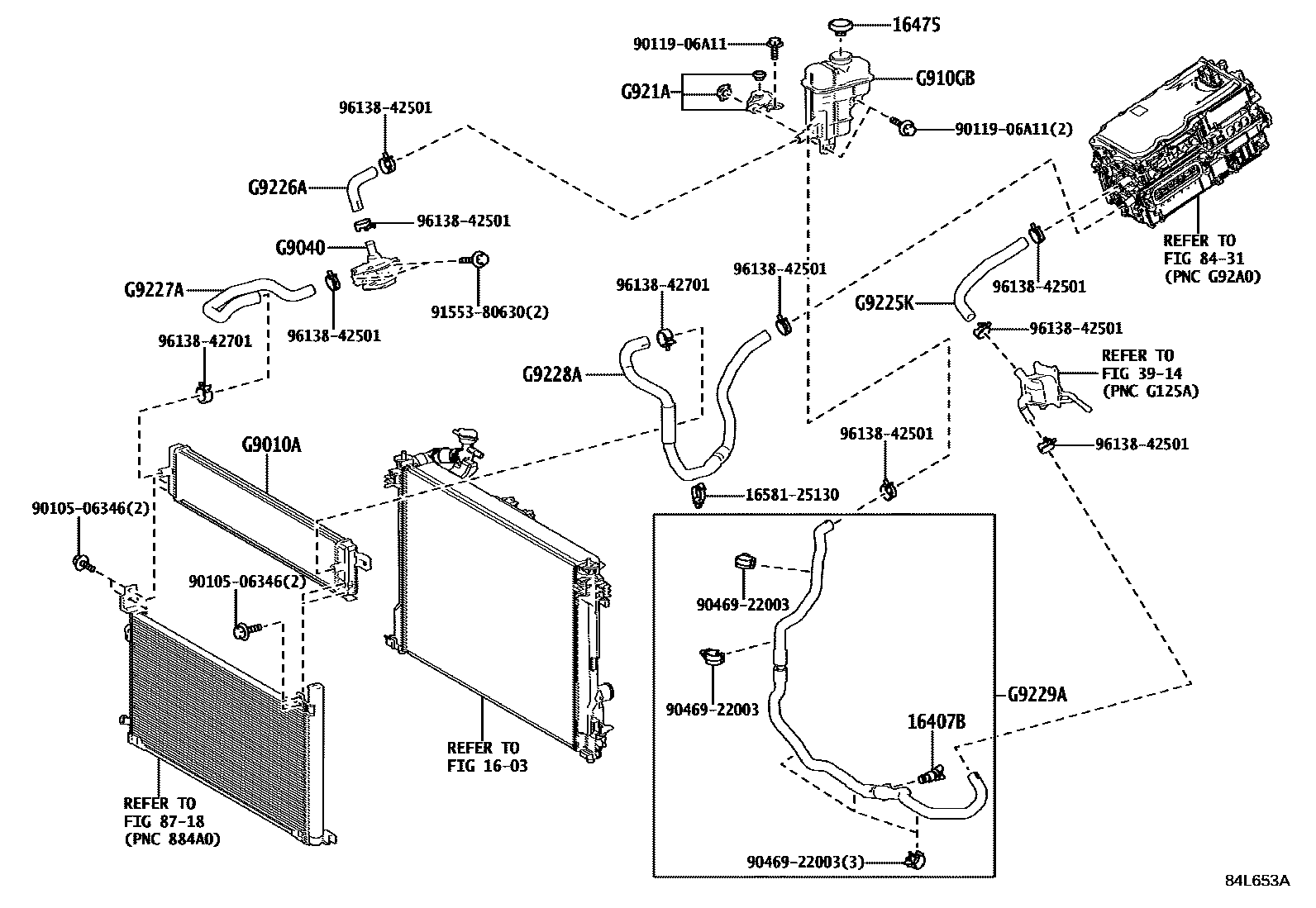

Toyota RAV4 PHEV — INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AXAP54¥380202006-202310

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXAP54¥1,200202006-202310

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXAP54202006-202310

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904042020iAXAP54202006-202210

mainG904048050iAXAP54202210-202310

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAXAP54202006-202310

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAXAP54202006-202310

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542020iAXAP54202006-202310

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642020iAXAP54202006-202310

G9227AHOSE, INVERTER COOLING, NO.3

mainG922742020iAXAP54202006-202310

G9228AHOSE, INVERTER COOLING, NO.4

mainG922842040iAXAP54202006-202310

G9229AHOSE, INVERTER COOLING, NO.5

mainG922942030iAXAP54202006-202310

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

9010506346

main90105-06346

9011906A11

main90119-06A11¥60

9046922003

main90469-22003¥110

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

22 parts on this diagram · 1 diagram in section
