Toyota RAV4 PHEV — HORN

86510HORN ASSY, HIGH PITCHED

main86510-20280iAXAP54¥2,190202006-202010

main86510-22270iAXAP54¥2,200202010-202210

main86510-22270iAXAP54¥2,200202210-202310

main86510-22270iAXAP54¥2,200202310

86510AHORN ASSY, SECURITY

main86560-33060iAXAP54..XSE¥2,190202112-202210

main86560-33060iAXAP54..XSE¥2,190202210-202310

main86560-33060iAXAP54..XSE¥2,190202310

86520HORN ASSY, LOW PITCHED

main86520-20300iAXAP54¥2,190202006-202210

main86520-20300iAXAP54¥2,190202210-202310

main86520-20300iAXAP54¥2,190202310

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-42030iAXAP54202006-202210

main86570-42030iAXAP54202210-202310

main86570-42030iAXAP54202310

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-42060iAXAP54202006-202112

main86572-42120iAXAP54202112-202210

main86572-42240iAXAP54202210-202310

main865H2-42050iAXAP54202310

9010508478

main90105-08478¥80

9011906A06

main90119-06A06¥60

9167180612

main91671-80612¥60

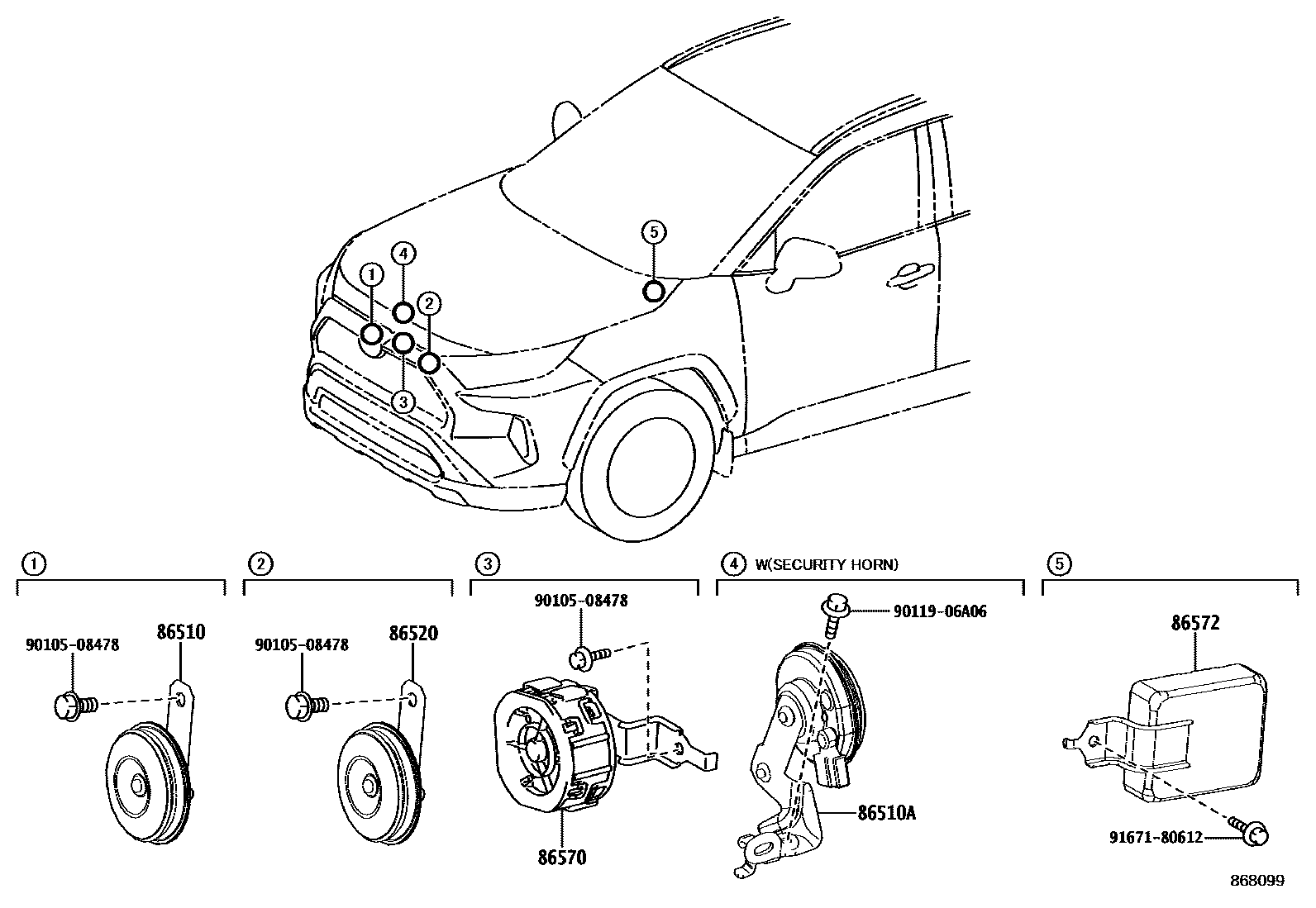

8 parts on this diagram · 1 diagram in section
