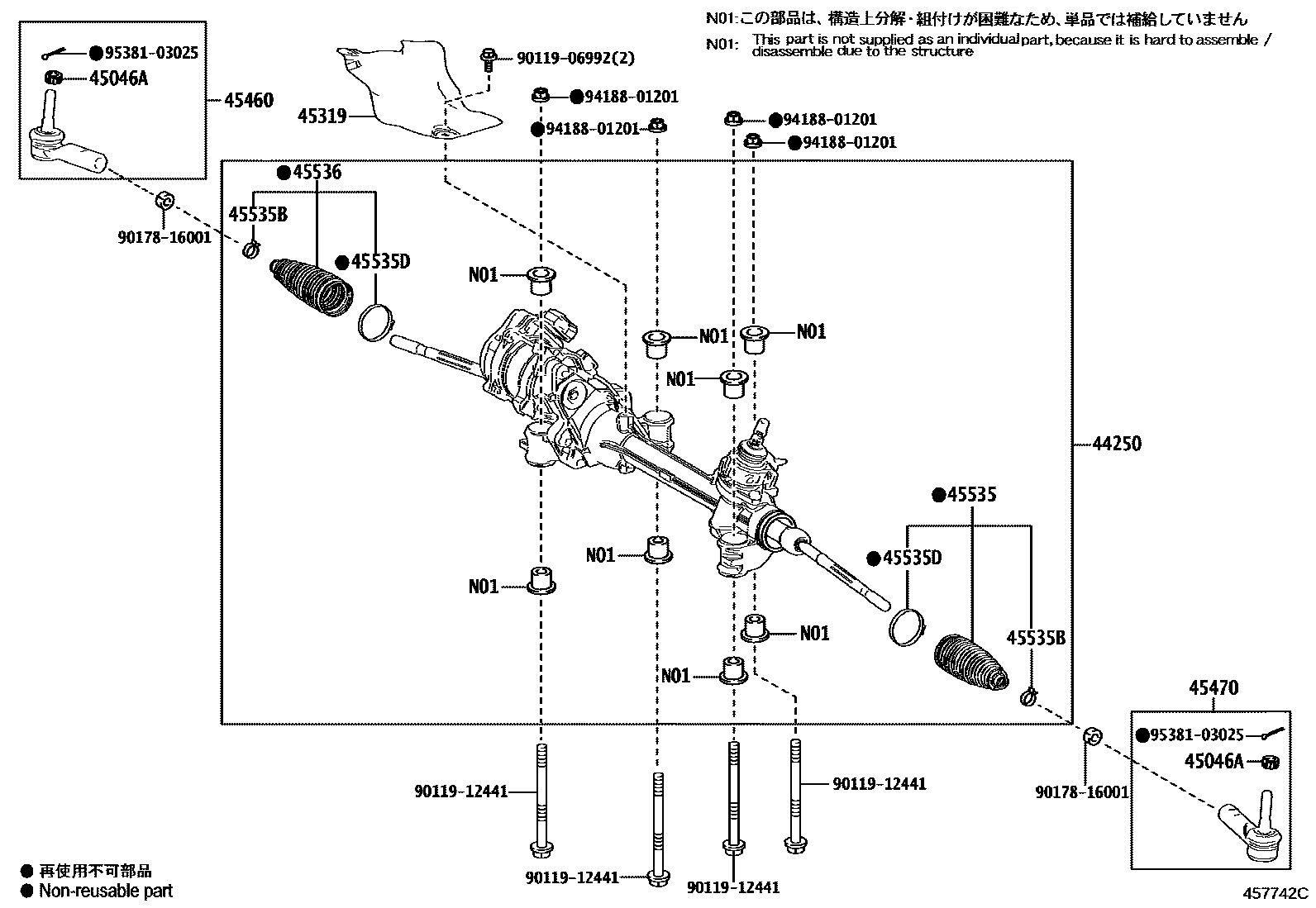

Toyota RAV4 PHEV — FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
*614
*614
*614
*614
*614
*614
45046ANUT, CASTLE(FOR TIE ROD END)
45319INSULATOR, STEERING GEAR HEAT
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
9011906992
9011912441
9017816001
9418801201
9538103025
14 parts on this diagram · 1 diagram in section
