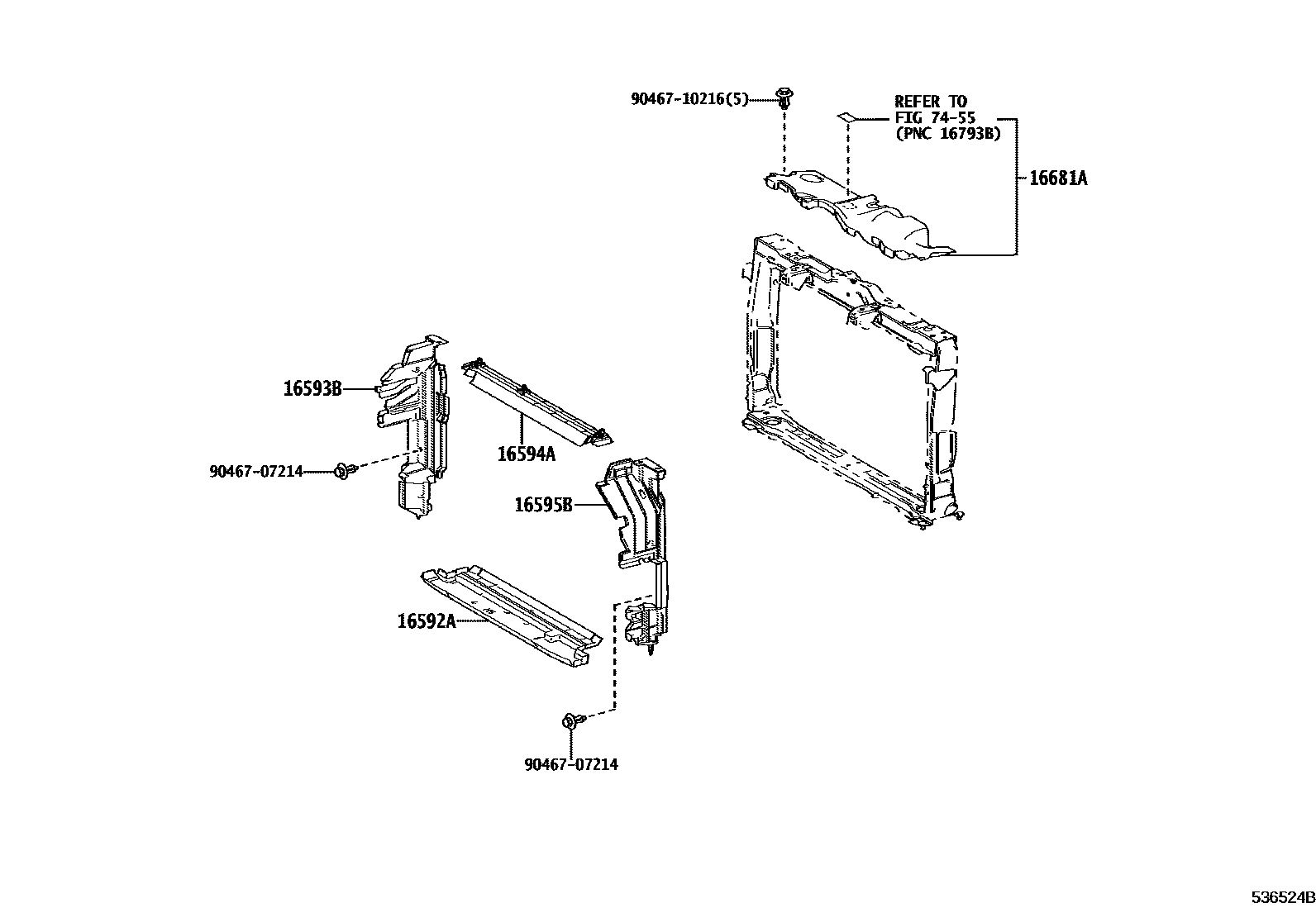

Toyota RAV4 PHEV — FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25040iA25AFXS..AXAP54¥3,610202006-202310

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25020iA25AFXS..AXAP54¥3,870202006-202112

sub16593-25021¥3,510

main16593-25021iA25AFXS..AXAP54¥3,510202201-202310

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25AFXS..AXAP54¥2,380202006-202501

main16594-25050iA25AFXS..AXAP54202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25020iA25AFXS..AXAP54¥3,560202006-202112

sub16595-25021¥3,230

main16595-25021iA25AFXS..AXAP54¥3,230202201-202310

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-25020iA25AFXS..AXAP54¥3,850202006-202310

7455

9046707214

main90467-07214¥70

9046710216

main90467-10216¥100

8 parts on this diagram · 3 diagrams in section
