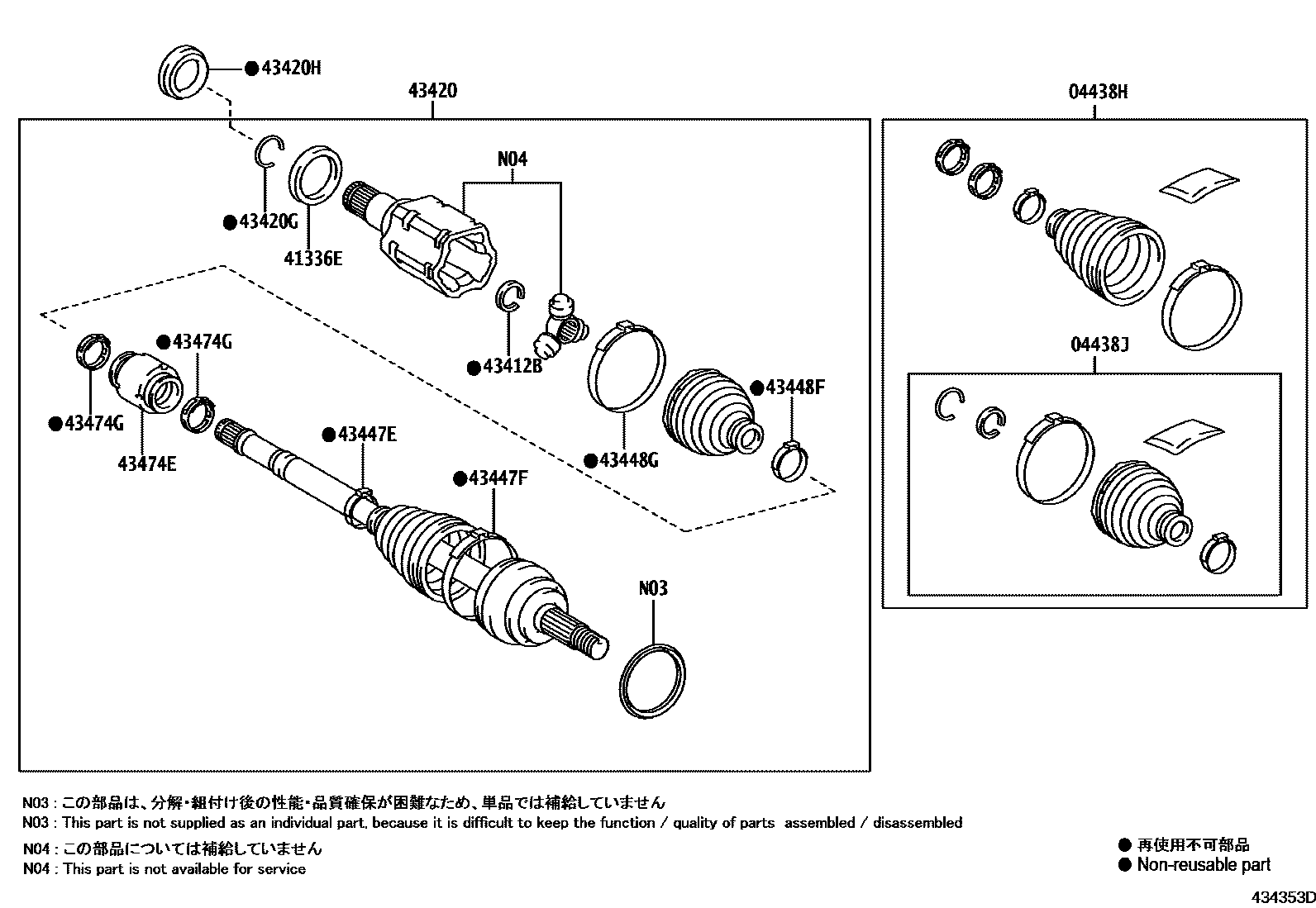

Toyota RAV4 PHEV — FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-42170iAXAP54¥7,500202006-202211

sub04428-48170¥6,700

main04428-48170iAXAP54¥6,700202211-202310

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-42090iAXAP54¥4,570202006-202211

sub04438-48170¥4,150

main04438-48170iAXAP54¥4,150202211-202310

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-42030iAXAP54¥410202006-202310

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-42040iAXAP54¥40202006-202310

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-42280iAXAP54¥51,900202006-202211

sub43420-42281¥47,100

main43420-42281iAXAP54¥47,100202211-202310

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-42060iAXAP54¥40202006-202310

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50059iAXAP54¥610202006-202310

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-42030iAXAP54¥300202006-202211

main42345-48240iAXAP54¥380202211-202310

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-42140iAXAP54¥510202006-202211

sub42345-48280¥670

main42345-48280iAXAP54¥670202211-202310

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-42030iAXAP54¥300202006-202211

main42345-48240iAXAP54¥380202211-202310

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-42020iAXAP54¥430202006-202211

main42345-48270iAXAP54¥630202211-202310

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42080iAXAP54¥3,880202006-202310

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-42130iAXAP54¥200202006-202204

sub42345-42250¥210

main42345-42250iAXAP54¥210202205-202310

13 parts on this diagram · 2 diagrams in section
