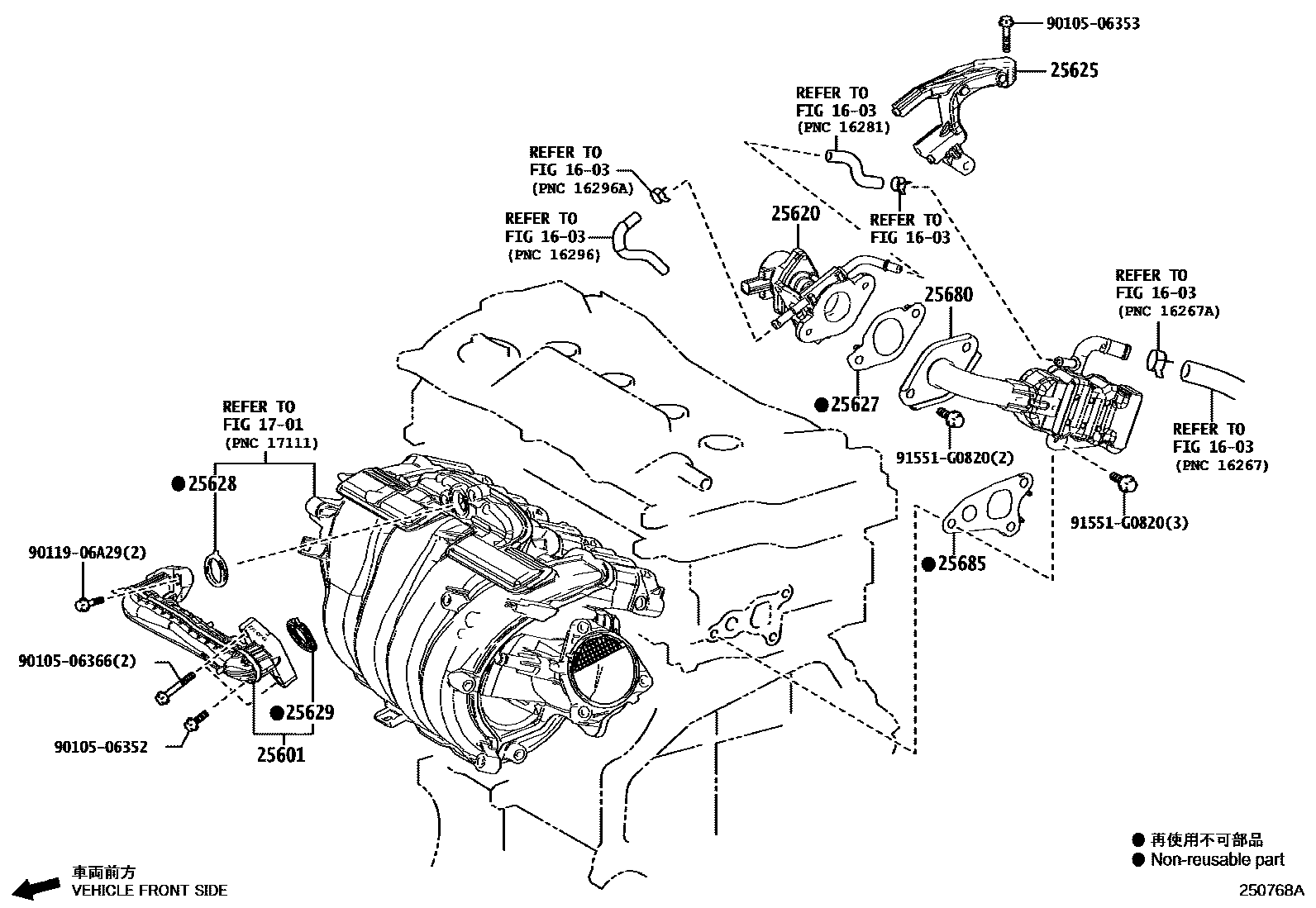

Toyota RAV4 PHEV — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25011iA25AFXS..AXAP54¥3,450202006-202112

main25601-25030iA25AFXS..AXAP54¥3,140202112-202310

25620VALVE ASSY, EGR

main25620-24050iA25AFXS..AXAP54¥18,400202112-202310

main25620-25040iA25AFXS..AXAP54¥18,400202006-202112

25625BRACKET, EGR VALVE

main25625-25030iA25AFXS..AXAP54¥2,970202006-202112

25627GASKET, EGR VALVE

main25627-24010iA25AFXS..AXAP54¥270202112-202310

main25627-25010iA25AFXS..AXAP54¥270202006-202112

25628GASKET, EGR INLET

main25628-25010iA25AFXS..AXAP54¥340202006-202310

25629GASKET, EGR VALVE ADAPTER

main25629-25010iA25AFXS..AXAP54¥340202006-202310

25680COOLER ASSY, EGR

main25680-25030iA25AFXS..AXAP54¥18,400202006-202112

main25680-25060iA25AFXS..AXAP54¥16,700202112-202310

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25AFXS..AXAP54¥270202006-202310

9010506352

main90105-06352¥60

9010506353

main90105-06353¥60

9010506366

main90105-06366¥80

9011906A29

main90119-06A29¥60

91551G0820

main91551-G0820¥80

15 parts on this diagram · 2 diagrams in section
