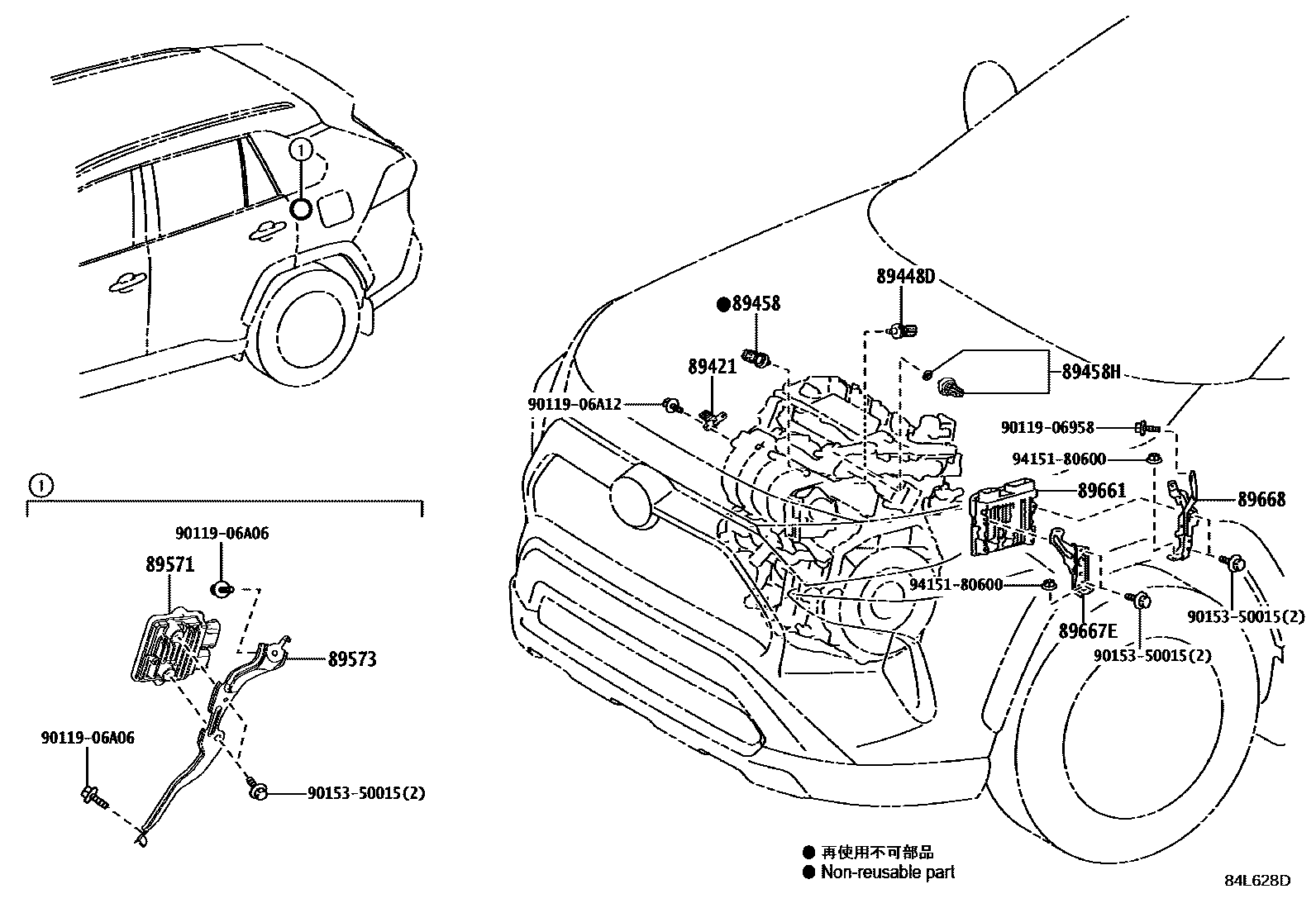

Toyota RAV4 PHEV — ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXAP54¥5,900202006-202310

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAXAP54¥5,700202006-202310

89458SENSOR, FUEL PRESSURE

main89458-33030iAXAP54¥4,320202006-202310

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAXAP54¥4,760202006-202303

main89458-33042iAXAP54¥4,320202207-202310

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010iAXAP54¥9,900202006-202310

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-42030iAXAP54¥910202006-202310

89661COMPUTER, ENGINE CONTROL

main89661-4A870iAXAP54202006-202102

DENSO,*614

sub89661-4A871

main89661-4A871iAXAP54202102-202112

DENSO,*614

sub89661-4A872

main89661-4AF10iAXAP54202112-202203

DENSO,*614

sub89661-4AF11

main89661-4AF11iAXAP54202204-202210

DENSO,*614

main89661-4AQ00iAXAP54202210-202309

DENSO,*614

sub89661-4AQ01

main89661-4AQ01iAXAP54202310-202402

DENSO,*614

main89661-4AT80iAXAP54202402-202501

DENSO,*614

main89661-4AU80iAXAP54202501

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42080iAXAP54¥700202006-202405

main89667-42081iAXAP54¥650202406

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42100iAXAP54¥910202006-202310

9011906958

main90119-06958¥60

9011906A06

main90119-06A06¥60

9011906A12

main90119-06A12¥60

9015350015

main90153-50015¥60

9415180600

main94151-80600¥60

14 parts on this diagram · 1 diagram in section
