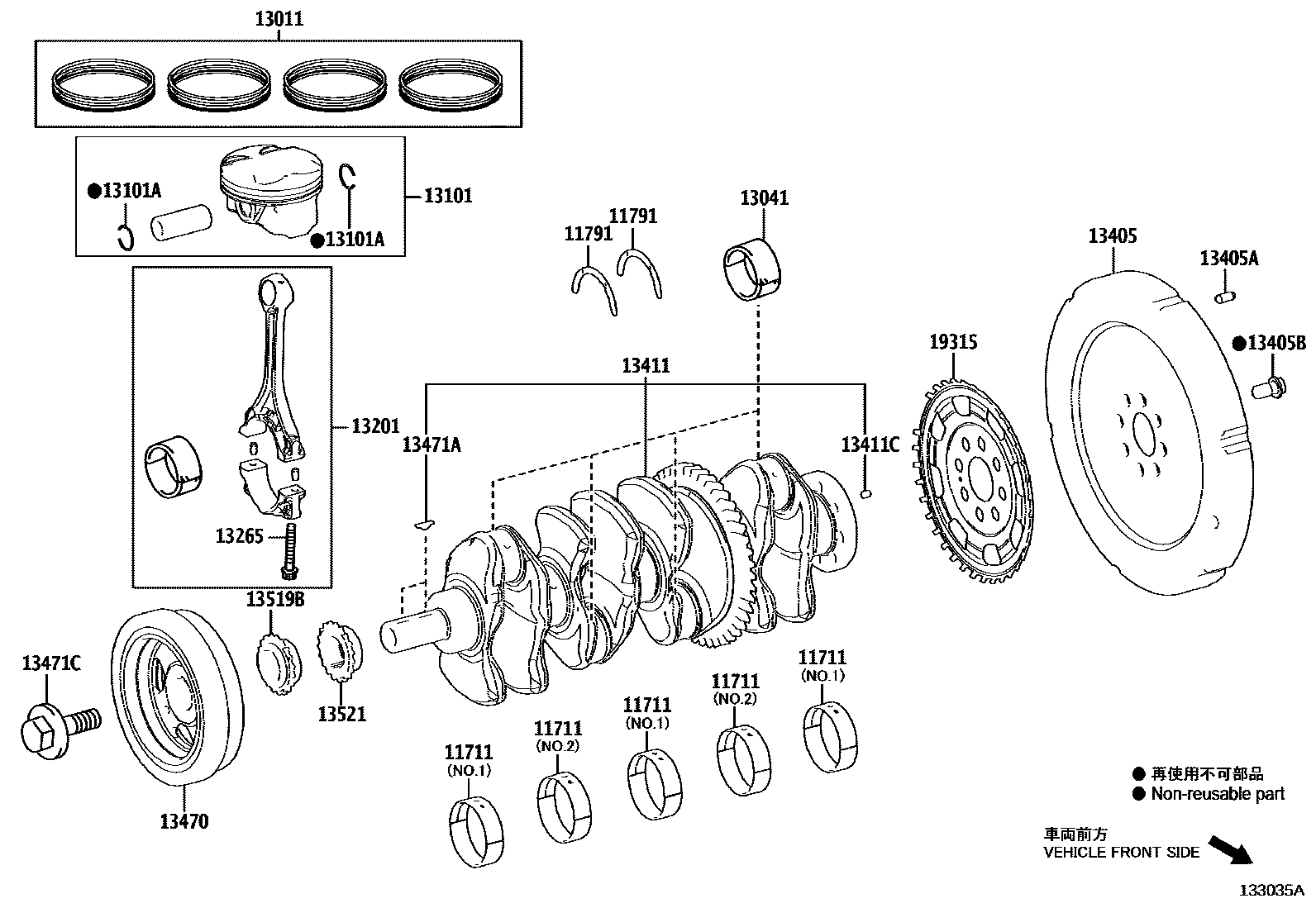

Toyota RAV4 PHEV — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.1 & NO.2,REF. R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1 & NO.2,REF. R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1 & NO.2,REF. R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1 & NO.2,REF. R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1 & NO.2,REF. R/M
MARK 5,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519BSPROCKET, OIL PUMP DRIVE
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
19 parts on this diagram · 1 diagram in section
