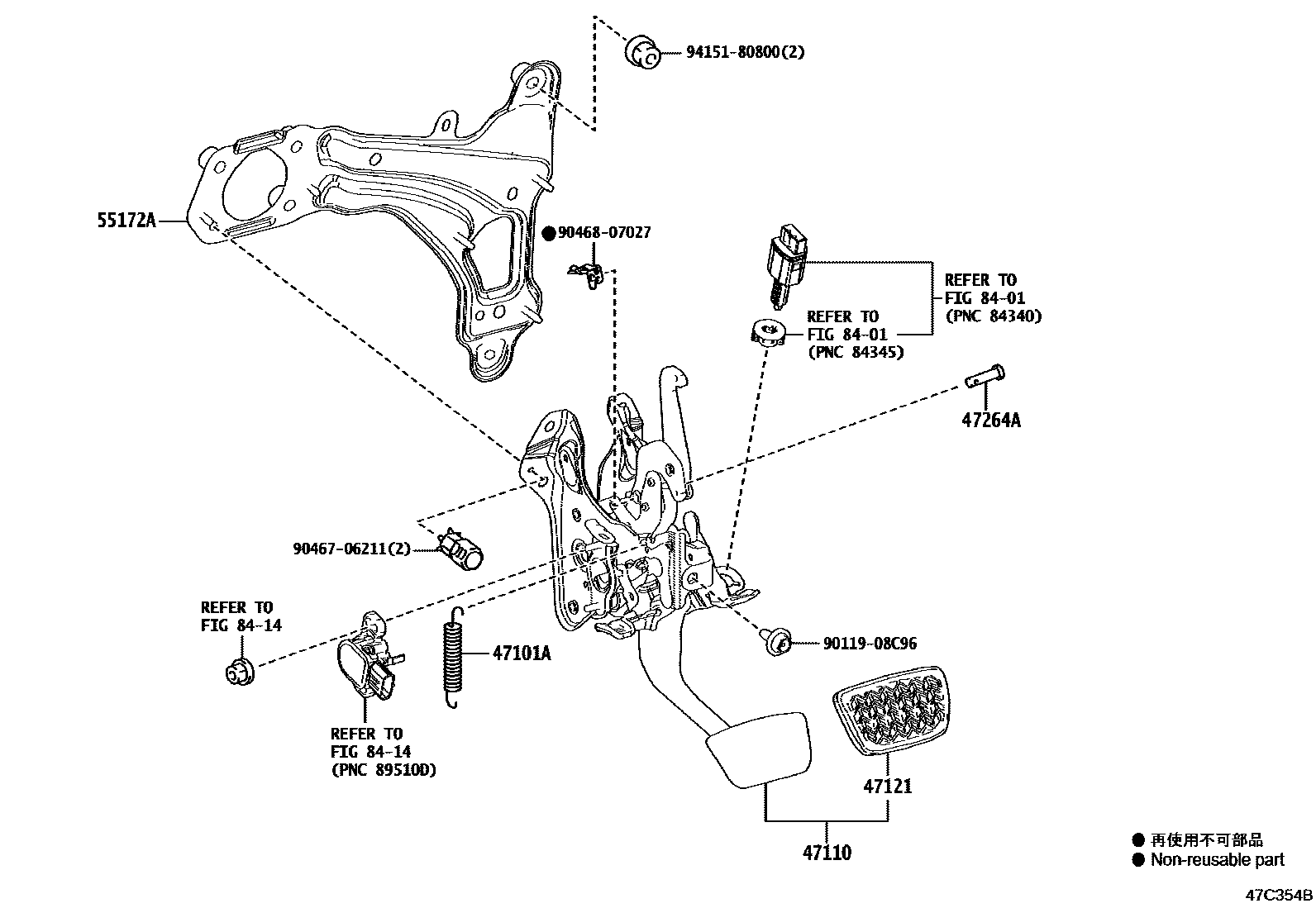

Toyota RAV4 PHEV — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXAP54¥120202006-202310

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42360iAXAP54202006-202109

sub47110-42430

main47110-42430iAXAP54202110-202310

47121PAD, BRAKE PEDAL

main47121-48010iAXAP54¥520202006-202110

main47121-62010iAXAP54¥520202110-202310

47264APIN(FOR PUSH ROD)

main90240-08078iAXAP54¥120202210-202310

main90240-08082iAXAP54¥120202006-202210

55172ABASE, BRAKE PEDAL SUPPORT

main55172-42010iAXAP54202006-202310

8401

8414

9011908C96

main90119-08C96¥80

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

9415180800

main94151-80800¥80

11 parts on this diagram · 1 diagram in section
