Toyota RAV4 PHEV — AIR BAG

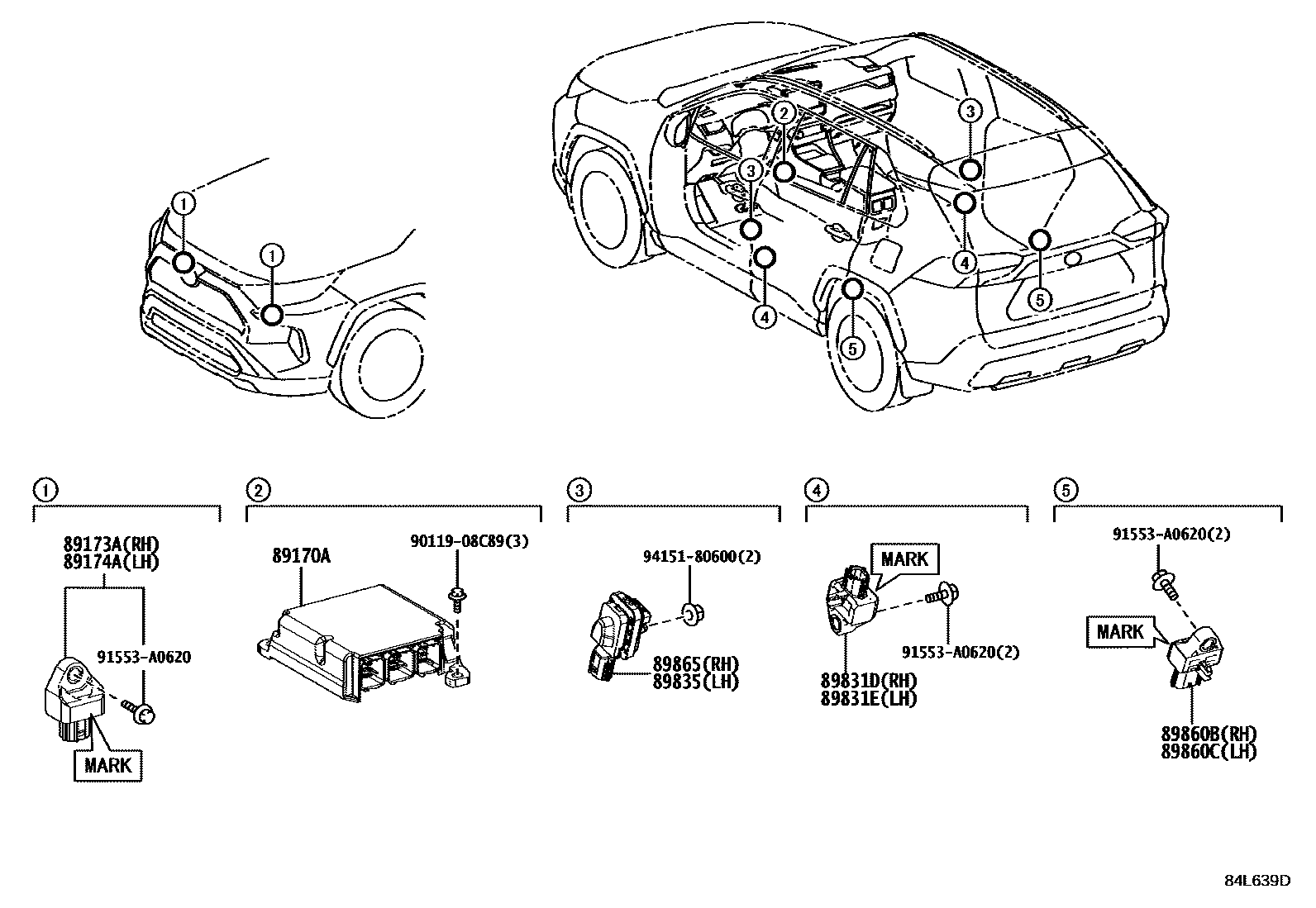

Parts diagram

89170ACOMPUTER ASSY, AIRBAG

main89170-42690i202006-202112

*614

main89170-42F10i202112-202310

*614

main89170-42F10i202310

89173ASENSOR, AIRBAG, FRONT RH

main89173-59335i¥4,110202006-202210

main89173-59335i¥4,110202210-202310

MARK=89173-52190

89174ASENSOR, AIRBAG, FRONT LH

main89173-59335i¥4,110202006-202210

main89173-59335i¥4,110202210-202310

MARK=89173-52190

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42020i¥4,110202006-202210

main89831-42020i¥4,110202210-202310

MARK=89831-42020

main89831-47050i¥8,200202305-202306

MARK=89831-47050

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42020i¥4,110202006-202210

main89831-42020i¥4,110202210-202310

MARK=89831-42020

main89831-47050i¥8,200202305-202306

MARK=89831-47050

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-12030i¥4,110202310

main8983A-52010i¥4,520202006-202101

sub8983A-52011¥4,110

main8983A-52011i¥4,110202102-202310

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28040i¥8,200202305-202306

MARK=89831-28040

main89831-52130i¥4,110202006-202210

main89831-52130i¥4,110202210-202310

MARK=89831-52130

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28040i¥8,200202305-202306

MARK=89831-28040

main89831-52130i¥4,110202210-202310

MARK=89831-52130

main89831-52130i¥4,110202006-202210

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-12030i¥4,110202310

main8983A-52010i¥4,520202006-202101

sub8983A-52011¥4,110

main8983A-52011i¥4,110202102-202310

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
