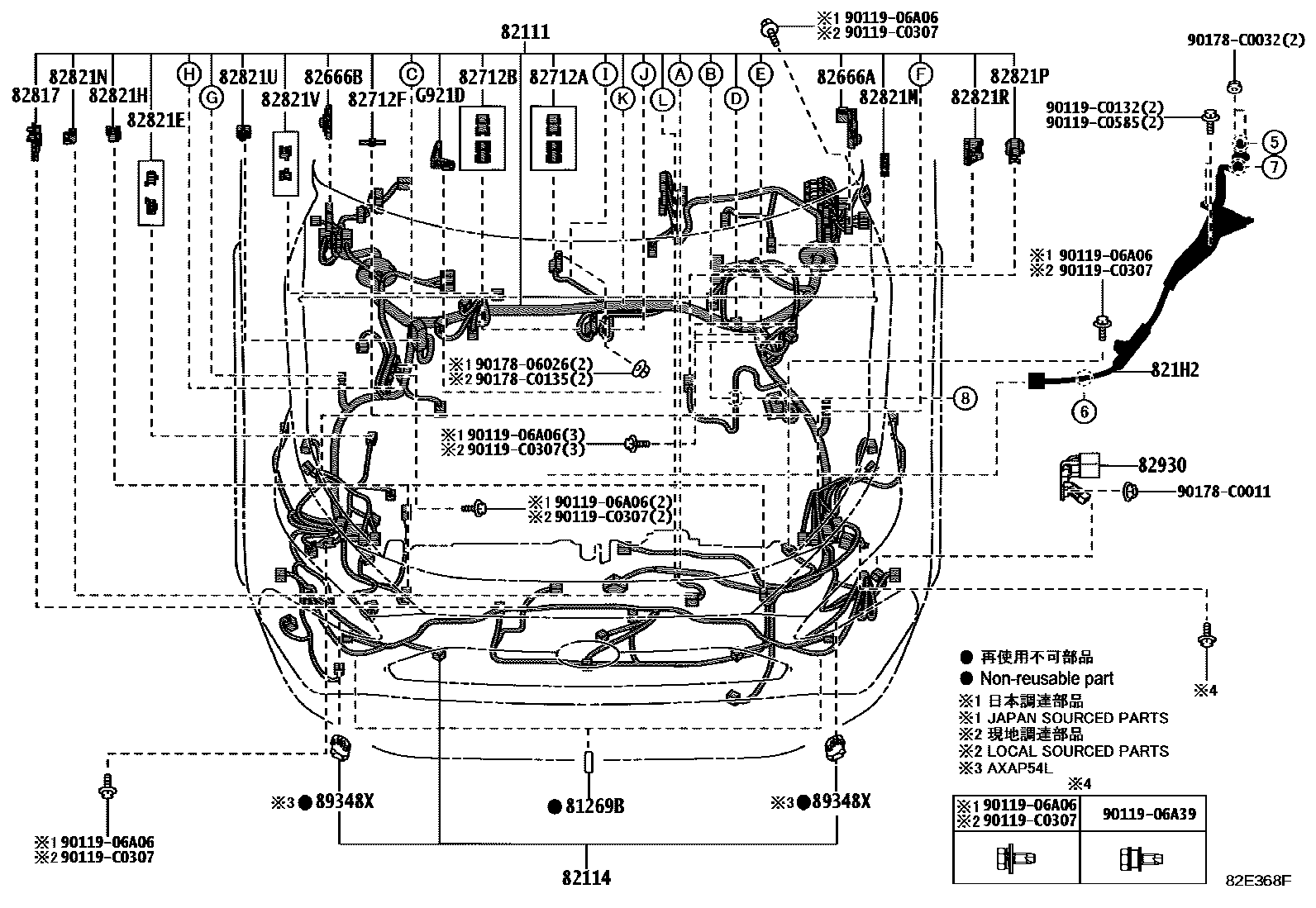

Toyota RAV4 PHEV — WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 1/2 0004 1ENGINE 2/2 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1HIGH VOLTAGE CABLE 0009 1HIGH VOLTAGE CABLE 0010 1SEAT 0011 1CLAMP & BRACKET 1/2 0012 1CLAMP & BRACKET 2/2 0013 1CABLE BOND 0014 1CONNECTOR 1/2 0015 1CONNECTOE 2/2

81269BSEAL, FOG LAMP

main81269-42010iAXAP5#..M,X¥130202104-202304

82111WIRE, ENGINE ROOM MAIN

main82111-0RA70iAXAP52..M202104-202204

main82111-0RA71iAXAP52..M202204-202304

main82111-0RA72iAXAP52..M202304-202409

main82111-0RA73iAXAP52..M202409

main82111-0RA80iAXAP52..X202104-202204

main82111-0RA81iAXAP52..X202204-202304

main82111-0RA82iAXAP52..X202304-202409

main82111-0RA83iAXAP52..X202409

main82111-0RA90iAXAP54202104-202204

main82111-0RA91iAXAP54202204-202207

main82111-0RA92iAXAP54..G202304-202409

main82111-0RA93iAXAP54..G202207-202304

main82111-0RA94iAXAP54..G202409

main82111-0RL60iAXAP54..M202304-202409

main82111-0RL61iAXAP54..M202409

main82111-0RL70iAXAP54..M202207-202304

82114WIRE, ENGINE ROOM, NO.4

main82114-0R290iAXAP5#..M202104-202304

main82114-0R300iAXAP52..X202104-202304

main82114-0R310iAXAP54..G202104-202304

821H2WIRE, HV AIR CONDITIONER

main821H2-0R060iAXAP5#202104-202304

82666AHOLDER, CONNECTOR NO.2

main82666-42710iAXAP5#¥400202104-202409

82666BHOLDER, CONNECTOR NO.3

main82666-60220iAXAP5#¥180202104-202409

82712ASUPPORT, WIRING HARNESS

main82712-42150iAXAP5#¥320202104-202304

82712BSUPPORT, WIRING HARNESS

main82712-42180iAXAP5#¥430202104-202304

82712FSUPPORT, WIRING HARNESS

main82712-44060iAXAP5#¥180202304

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-42A90iAXAP5#¥390202104-202304

82821ECOVER, CONNECTOR

main82821-30600iAXAP5#¥60202304

82821HCOVER, CONNECTOR

main82821-30650iAXAP5#¥60202304

82821MCOVER, CONNECTOR

main82821-33620iAXAP5#¥200202304-202409

82821NCOVER, CONNECTOR

main82821-33820iAXAP5#¥200202304

82821PCOVER, CONNECTOR

main82821-42210iAXAP5#¥280202304

82821RCOVER, CONNECTOR

main82821-47190iAXAP5#¥250202304

82821UCOVER, CONNECTOR

main82821-47270iAXAP5#¥330202304-202409

main82821-48270iAXAP5#¥570202409

82821VCOVER, CONNECTOR

main82821-47600iAXAP5#¥100202304

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-42020iAXAP5#¥4,720202104-202204

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-58130iAXAP54..G¥0202104-202304

G921DPROTECTOR, INVERTER CONNECTOR COVER

mainG921D42020iAXAP5#202104-202304

9011906A06

main90119-06A06¥60

9011906A39

main90119-06A39¥80

90119C0132

main90119-C0132

90119C0307

main90119-C0307

90119C0585

main90119-C0585

9017806026

main90178-06026¥80

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0135

main90178-C0135

30 parts on this diagram · 15 diagrams in section
