Toyota RAV4 PHEV — WIRELESS DOOR LOCK

0001 1 0002 1

8435

89990ACOMPUTER ASSY, SMART KEY

main899H0-0R210iAXAP5#202104-202304

main899H0-0R210iAXAP5#202304-202409

main899H0-0R400iAXAP5#202409

89997ANTENNA, ELECTRICAL KEY

main89997-0E060iAXAP5#202104-202304

sub89997-0E061

main89997-0E060iAXAP5#202304-202309

sub89997-0E061

main89997-0E061iAXAP5#202310

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0R060iAXAP5#202104-202304

sub899A0-0R160

main899A0-0R060iAXAP5#202304-202309

sub899A0-0R160

main899A0-0R160iAXAP5#202310

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0R070iAXAP5#202104-202304

main899A0-0R070iAXAP5#202304

90178C0011

main90178-C0011

9017906274

main90179-06274¥70

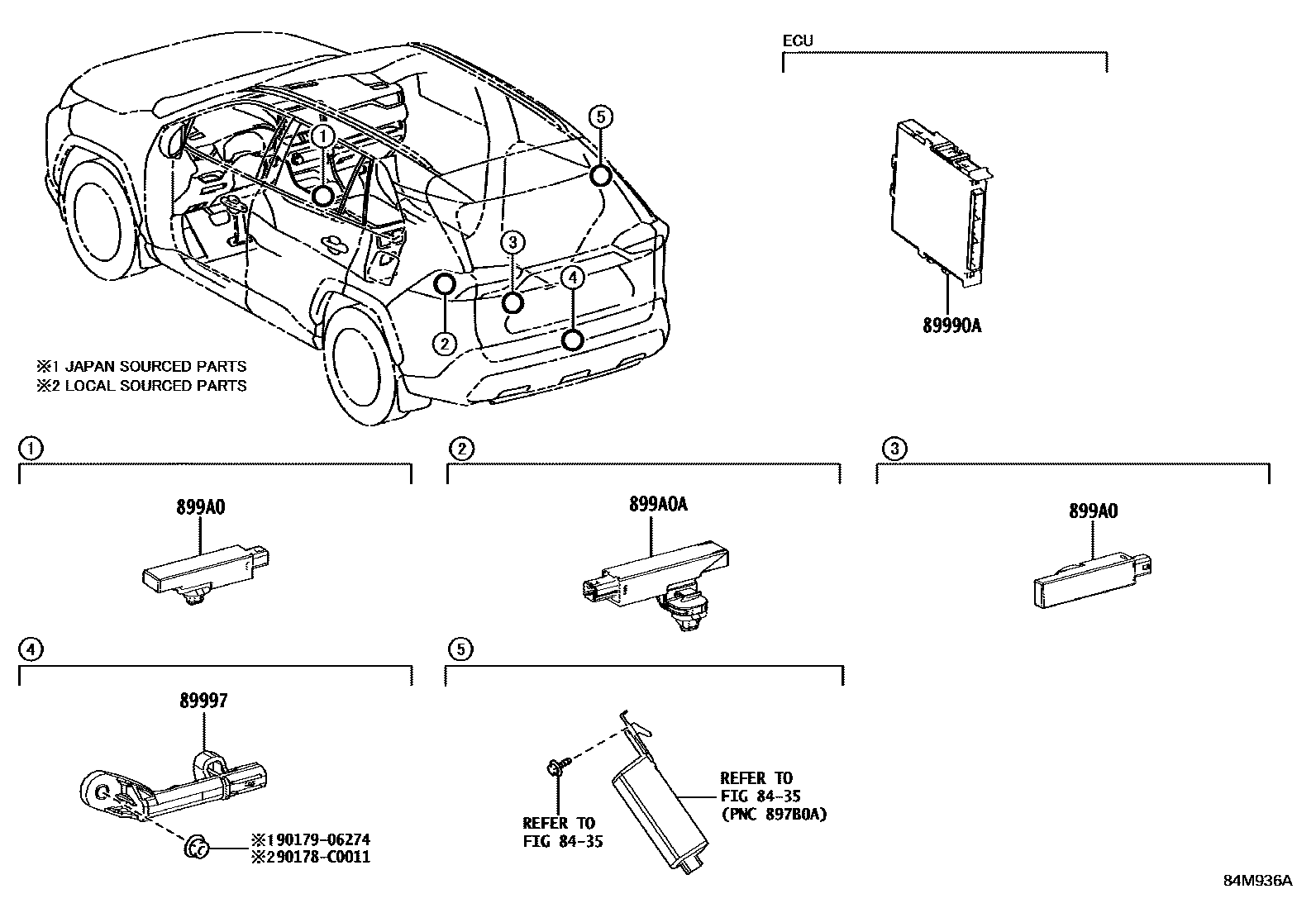

7 parts on this diagram · 2 diagrams in section
