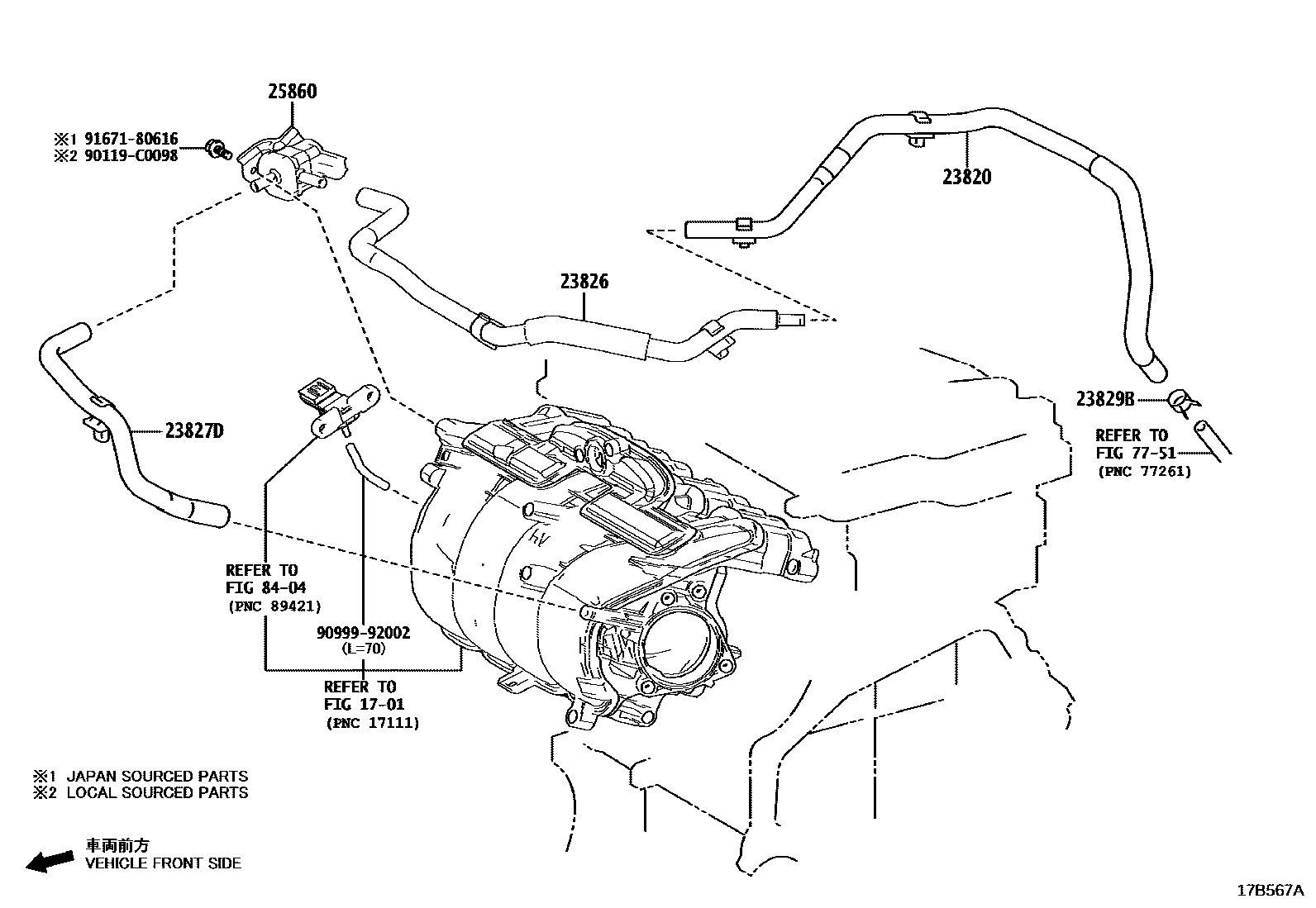

Toyota RAV4 PHEV — VACUUM PIPING

0001 1 0002 1W(GPF)

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0330iA25FFXS..AXAP5#202104-202304

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25FFXS..AXAP5#¥2,480202104-202304

(J)

main23820-F0410iA25FFXS..AXAP5#202104-202304

(L)

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25FFXS..AXAP5#¥1,590202104-202304

(J)

main23820-F0420iA25FFXS..AXAP5#202104-202304

(L)

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-C0039iA25FFXS..AXAP5#202104-202304

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25FFXS..AXAP5#¥3,480202104-202304

(J)

main25860-F0070iA25FFXS..AXAP5#202104-202304

(L)

7751

8404

90119C0098

main90119-C0098

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

11 parts on this diagram · 2 diagrams in section
