Toyota RAV4 PHEV — TELEPHONE & MAYDAY

0001 1 0002 1 0003 1

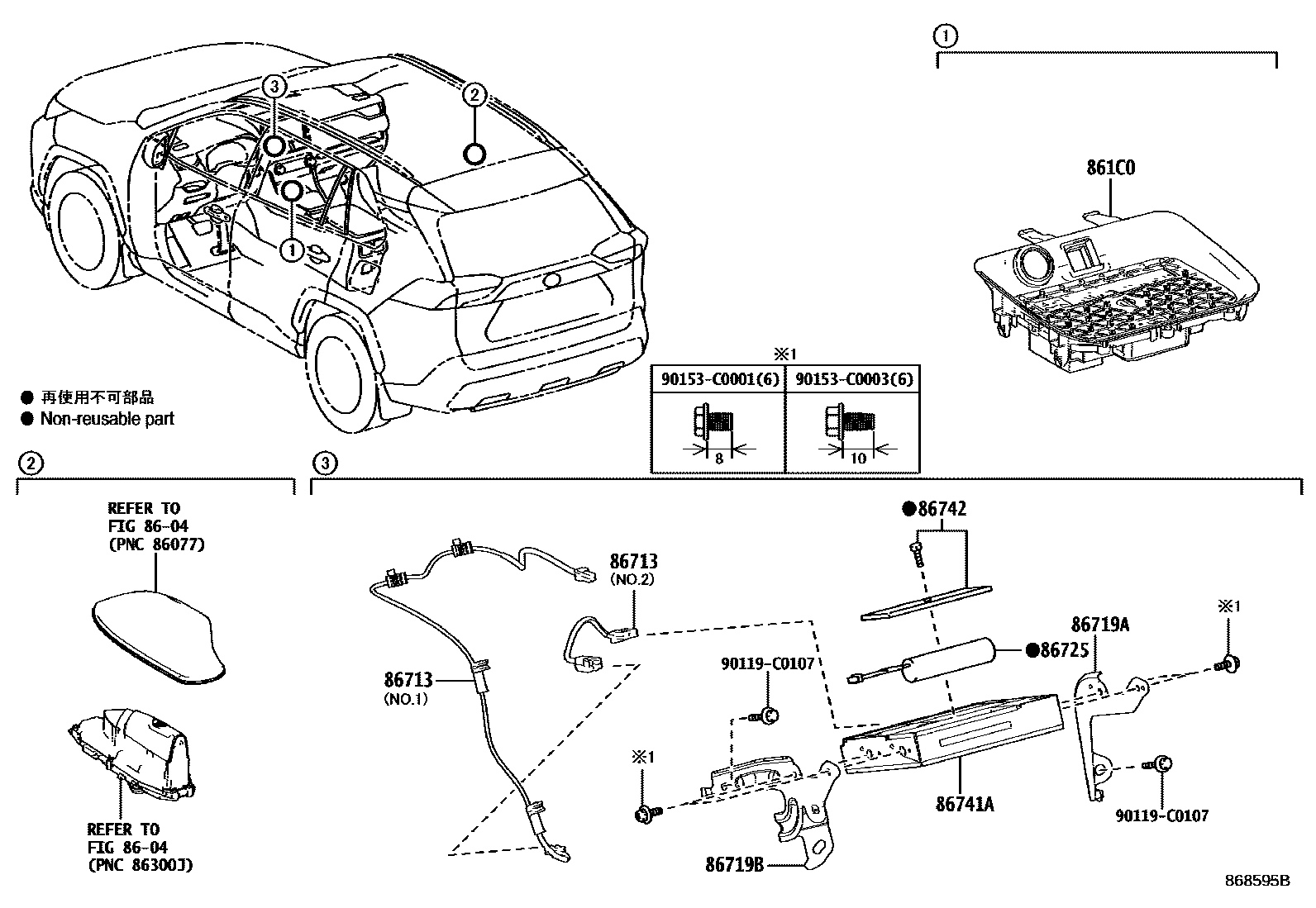

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-0R030-C0iAXAP54..G202104-202304

BLACK,TRIM2#

main861C0-42110-C0iAXAP54..G202304-202408

BLACK,TRIM2#

sub861C0-42111

main861C0-42110-C0iAXAP54..G202304-202408

WIRELESS CHARGER-WITH (ACCESSORY),BLACK,TRIM2#

sub861C0-42111

main861C0-42111-C0iAXAP54..G202409

BLACK,TRIM2#

main861C0-42111-C0iAXAP54..G202409

WIRELESS CHARGER-WITH (ACCESSORY),BLACK,TRIM2#

86713WIRE, TELEPHONE COMPUTER

main86713-0R020iAXAP5#..G,M202104-202304

NO.1

main86713-0R070iAXAP5#..G,M202104-202304

NO.2

main86713-0R100iAXAP52..X202304

NO.1

86719ABRACKET, TELEPHONE NO.1

main86719-0R020iAXAP5#202104-202304

86719BBRACKET, TELEPHONE NO.2

main86719-0R010iAXAP5#202104-202304

86725BATTERY, MOBILEPHONE

main86725-F4010iAXAP5#202104-202304

86741ATRANSCEIVER, TELEMATICS

main86741-0R070iAXAP5#202409

main86741-F4040iAXAP5#202104-202304

main86741-F4060iAXAP5#202304-202409

86742COVER, TRANSCEIVER

main86742-F4010iAXAP5#202104-202304

sub86742-0A010

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

11 parts on this diagram · 3 diagrams in section
