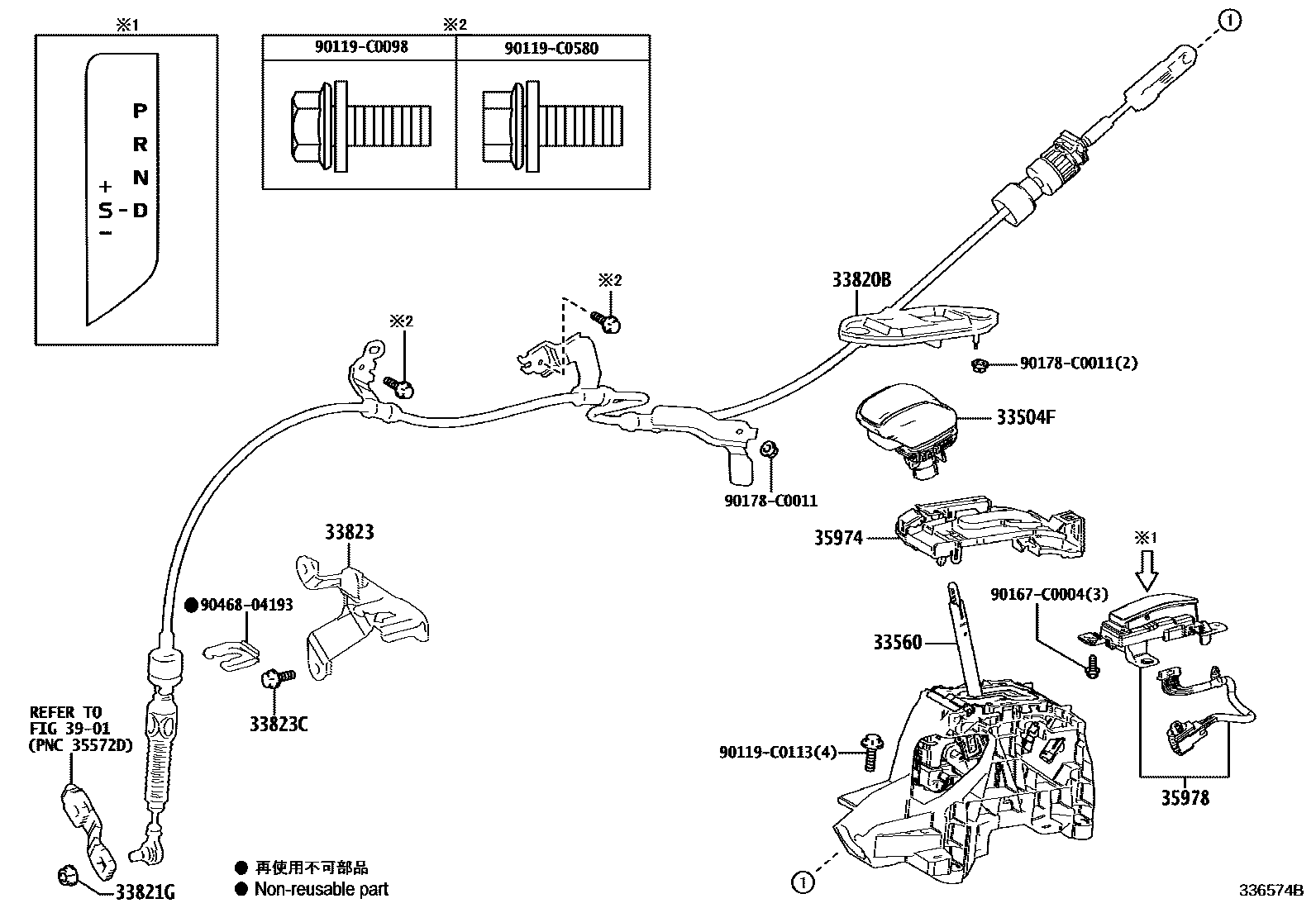

Toyota RAV4 PHEV — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0R140-C0iAXAP5#202104-202304

BLACK,TRIM2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0R100iAXAP5#202104-202304

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0R280iAXAP5#202104-202304

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0034iAXAP5#202104-202304

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0R120iAXAP5#202104-202304

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-C0132iAXAP5#202104-202304

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0R020iAXAP5#202104-202304

35978INDICATOR, SHIFT POSITION

main35978-0R040iAXAP5#202104-202304

3901

90119C0098

main90119-C0098

90119C0113

main90119-C0113

90119C0580

main90119-C0580

90167C0004

main90167-C0004

90178C0011

main90178-C0011

9046804193

main90468-04193¥160

15 parts on this diagram · 1 diagram in section
