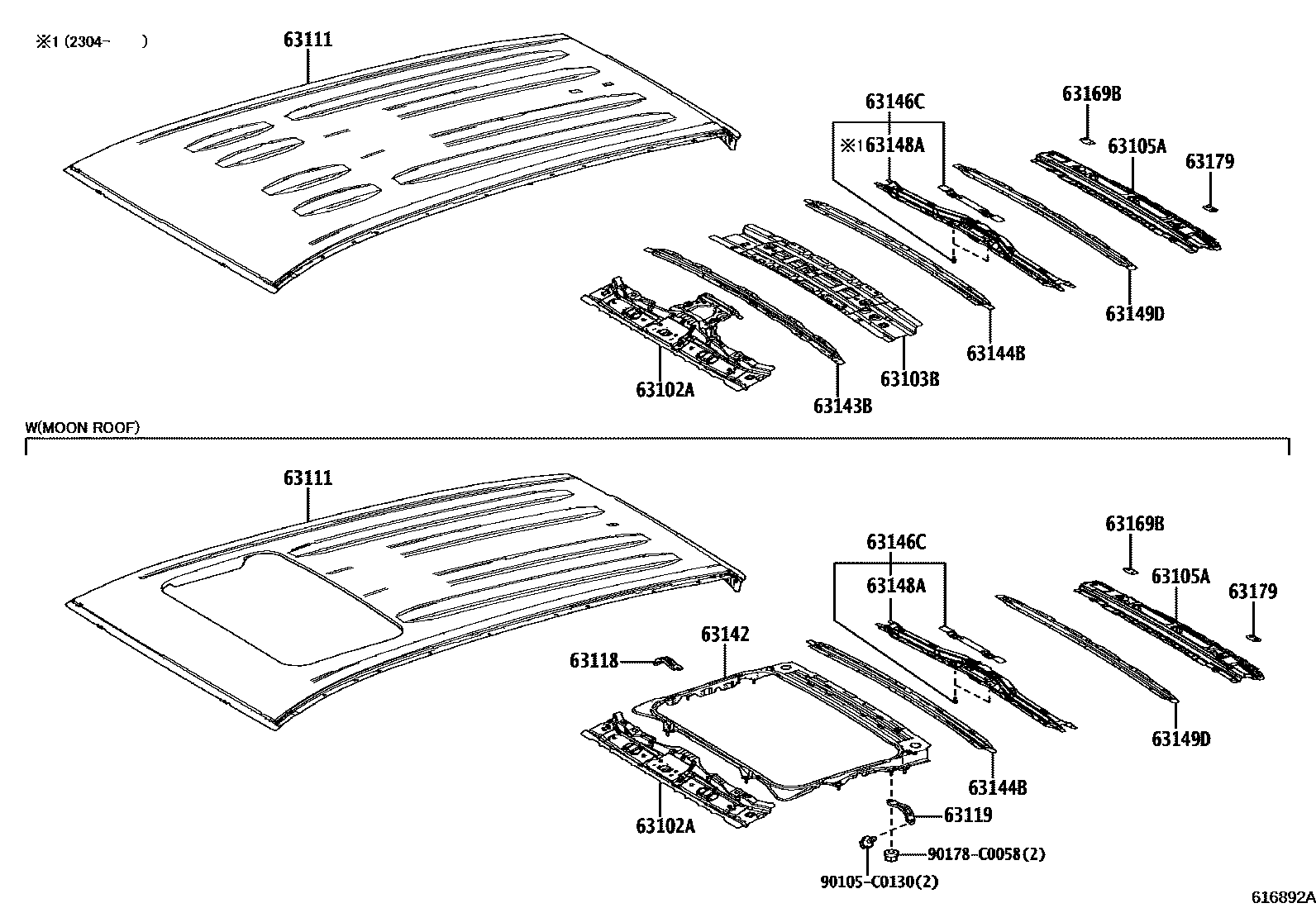

Toyota RAV4 PHEV — ROOF PANEL & BACK PANEL

0001 1ROOF PANEL(NORML & MOON ROOF)0002 1ROOF PANEL(PANORAMA ROOF) 0003 1SLIDING ROOF(MOON ROOF) 0004 1SLIDING ROOF(PANORAMA ROOF) 0005 1ROOF RACK 0006 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0R140iAXAP54202104-202304

main63102-0R909iAXAP52..M202104-202304

main63102-0R910iAXAP52..X202104-202304

63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-0R040iAXAP52..X202104-202304

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0R060iAXAP5#202104-202304

63111PANEL, ROOF

main63111-0R180iAXAP52..M202104-202304

main63111-0R230iAXAP52..X202104-202304

63118SUPPORT, ROOF PANEL, RH

main63118-0R060iAXAP52..M202104-202304

63119SUPPORT, ROOF PANEL, LH

main63118-0R060iAXAP52..M202104-202304

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-0R070iAXAP52..M202104-202304

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0R090iAXAP52..X202104-202304

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0R070iAXAP52202104-202304

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-0R020iAXAP52202104-202304

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0R060iAXAP52..M202104-202304

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0R070iAXAP52202104-202304

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0R040iAXAP5#202104-202304

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0R040iAXAP5#202104-202304

90105C0130

main90105-C0130

90178C0058

main90178-C0058

16 parts on this diagram · 6 diagrams in section
