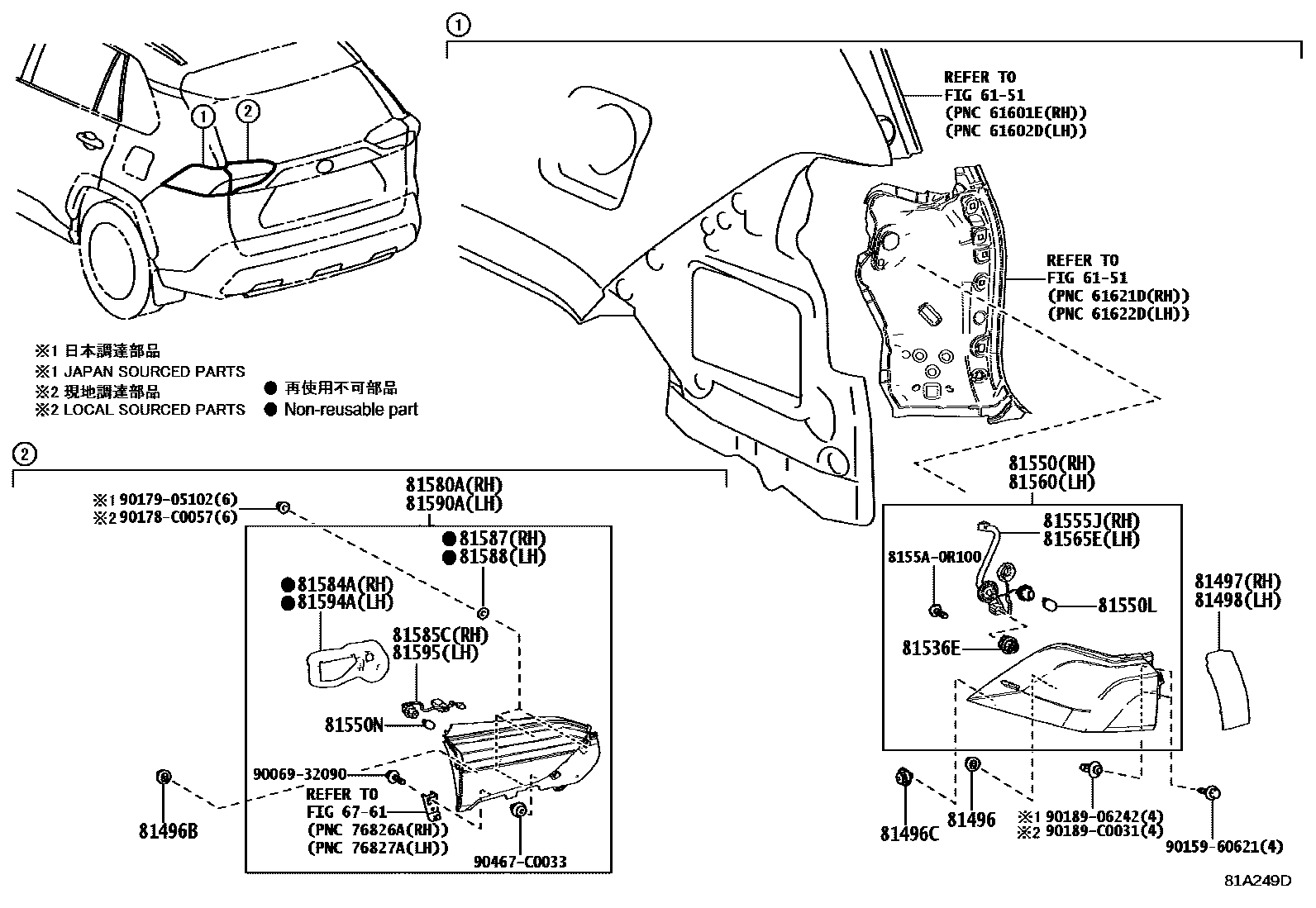

Toyota RAV4 PHEV — REAR COMBINATION LAMP
6151
6761
81496GUIDE, REAR COMBINATION LAMP
(L)
(L)
(J)
(J)
81496BGUIDE, REAR LAMP
(L)
(L)
(J)
(J)
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
12V 16W
81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH
81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH
8155A0R100
main8155A-0R100
9006932090
main90069-32090
9015960621
90178C0057
main90178-C0057
9017905102
9018906242
90189C0031
main90189-C0031
90467C0033
main90467-C0033
30 parts on this diagram · 1 diagram in section
