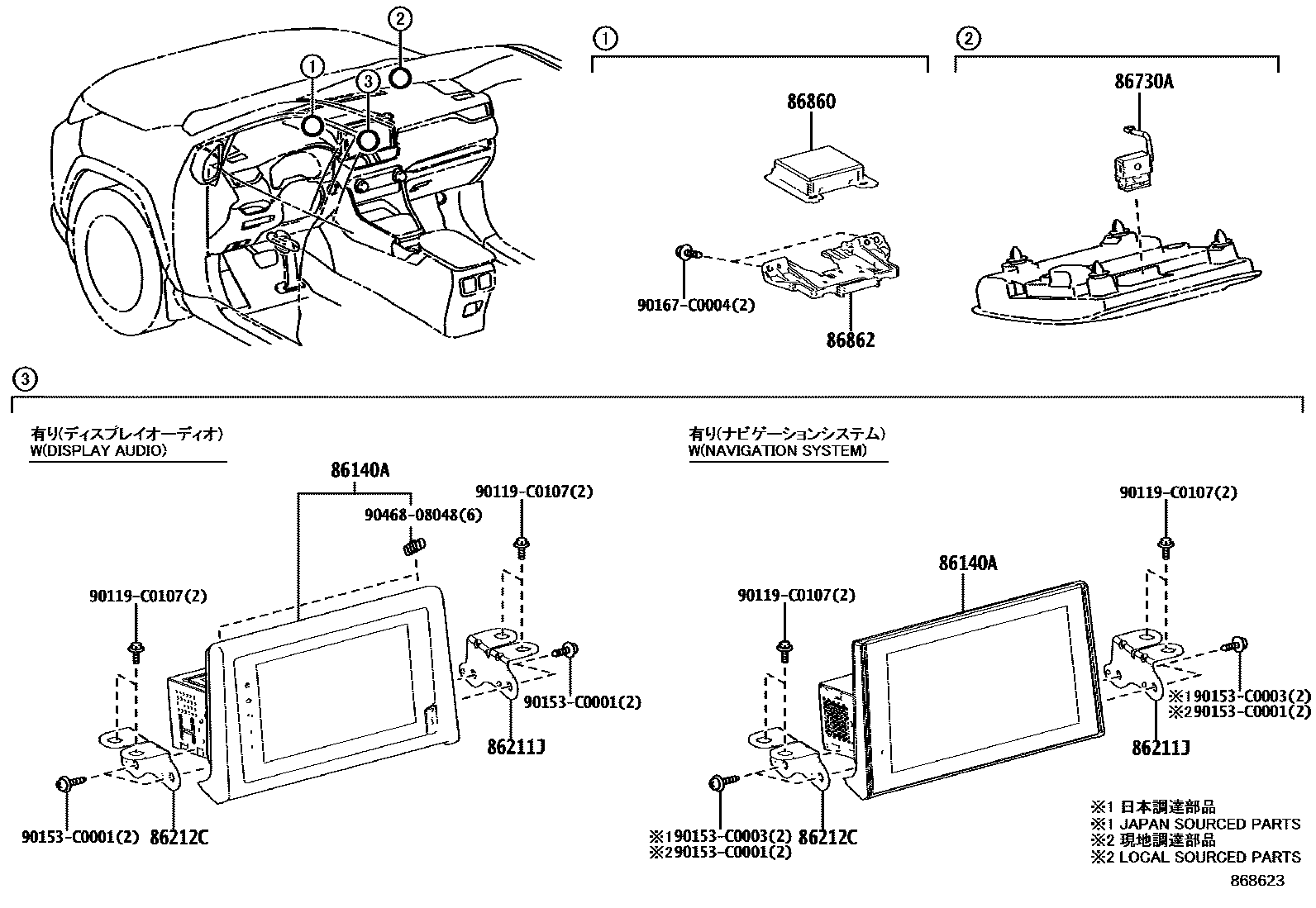

Toyota RAV4 PHEV — NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0R510iAXAP52..X202104-202203

DESAY

sub86140-0R511

main86140-0R511iAXAP52..X202204-202304

DESAY

main86140-0R520iAXAP5#..G,M202104-202106

DENSO TEN

sub86140-0R521

main86140-0R521iAXAP5#..G,M202107-202111

DENSO TEN

sub86140-0R522

main86140-0R522iAXAP5#..G,M202112-202208

DENSO TEN

sub86140-0R523

main86140-0R523iAXAP5#..G,M202209-202210

DENSO TEN

sub86140-0R524

main86140-0R524iAXAP5#..G,M202211-202304

DENSO TEN

main86140-0R670iAXAP52..X202304-202306

HANGSHENG

sub86140-0R671

main86140-0R671iAXAP52..X202307

HANGSHENG

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0R100iAXAP5#202104-202304

main86211-0R160iAXAP5#202304

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0R100iAXAP5#202104-202304

main86212-0R160iAXAP5#202304

86730AMICROPHONE ASSY, TELEPHONE

main86730-06060iAXAP5#202104-202304

main86730-0R050iAXAP52..X202304

86860ANTENNA ASSY, NAVIGATION

main86880-02050iAXAP5#202104-202205

main86880-02050iAXAP5#202205-202304

P/N LABEL=8688002050

main86880-02100iAXAP5#202304

P/N LABEL=8688002100

86862BRACKET, NAVIGATION ANTENNA

main86862-0E030iAXAP5#202407

main86862-42010iAXAP5#¥940202104-202304

main86862-42010iAXAP5#¥940202304-202406

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90167C0004

main90167-C0004

9046808048

main90468-08048¥60

11 parts on this diagram · 2 diagrams in section
