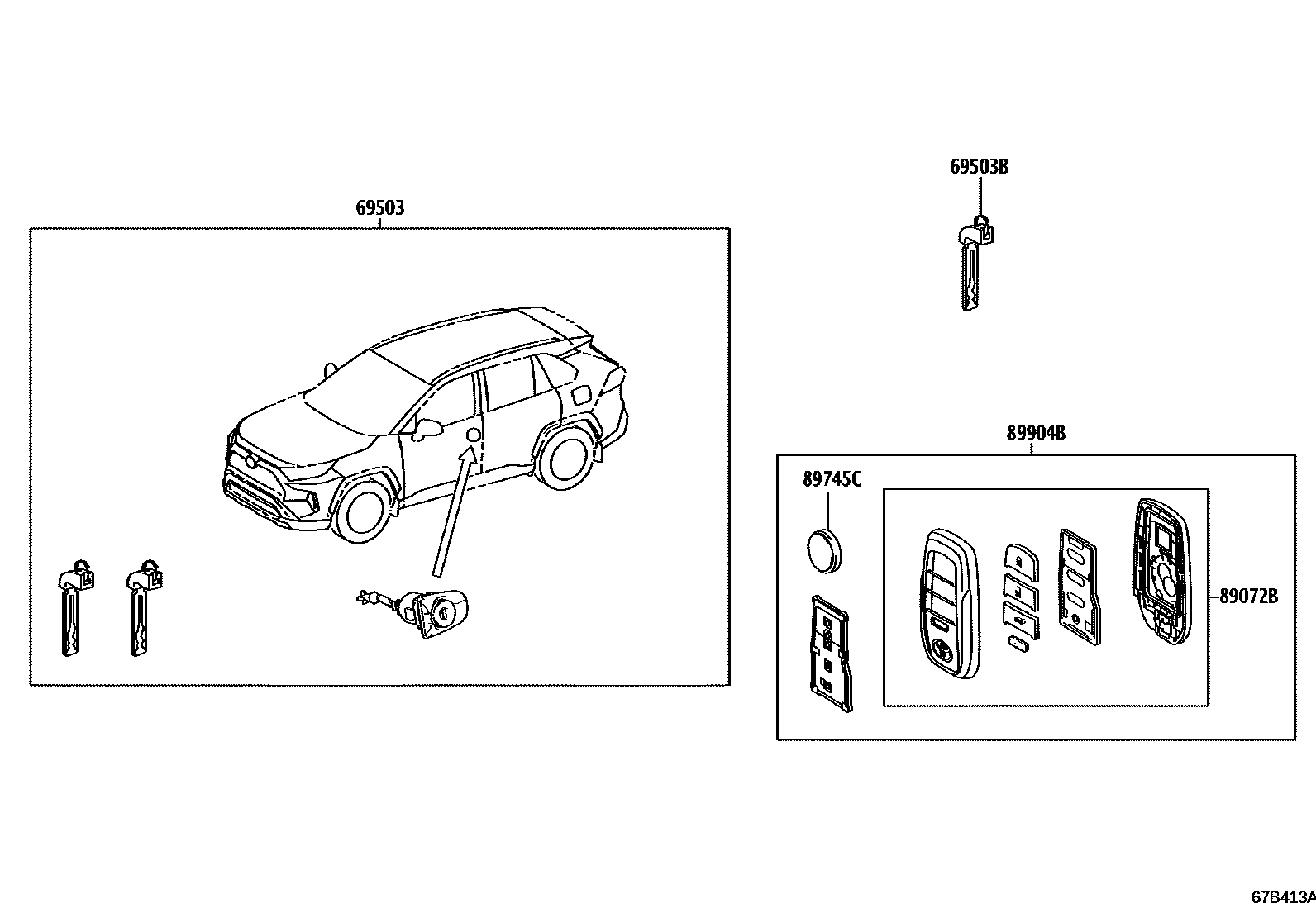

Toyota RAV4 PHEV — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-0R230iAXAP5#202304

main69005-0R230iAXAP5#202104-202304

69503BKEY, CUT

main69515-0R130iAXAP5#202104-202304

MASTER KEY

main69515-0R130iAXAP5#202304

MASTER KEY

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-0R360iAXAP5#..M,X202104-202304

main89072-0R370iAXAP54..G202104-202304

main89072-0R500iAXAP5#..M,X202409

main89072-0R510iAXAP54..G202409

main89072-0R520iAXAP5#..M,X202304-202409

main89072-0R530iAXAP54..G202304-202409

89745CBATTERY, TRANSMITTER

main89745-K0010iAXAP5#¥440202104-202304

CR2450

main89745-K0010iAXAP5#¥440202304

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-0R140iAXAP5#..M,X202104-202209

sub8990H-0R141

main8990H-0R141iAXAP5#..M,X202210-202304

sub8990H-0R142

main8990H-0R150iAXAP54..G202104-202209

sub8990H-0R151

main8990H-0R151iAXAP54..G202210-202304

sub8990H-0R152

main8990H-0R350iAXAP5#..M,X202304-202312

sub8990H-0R351

main8990H-0R351iAXAP5#..M,X202401-202409

sub8990H-0R352

main8990H-0R360iAXAP54..G202304-202312

sub8990H-0R361

main8990H-0R361iAXAP54..G202401-202409

sub8990H-0R362

main8990H-0R460iAXAP5#..M,X202409-202411

sub8990H-0R461

main8990H-0R461iAXAP5#..M,X202412

main8990H-0R470iAXAP54..G202409-202411

sub8990H-0R471

main8990H-0R471iAXAP54..G202412

5 parts on this diagram · 1 diagram in section
