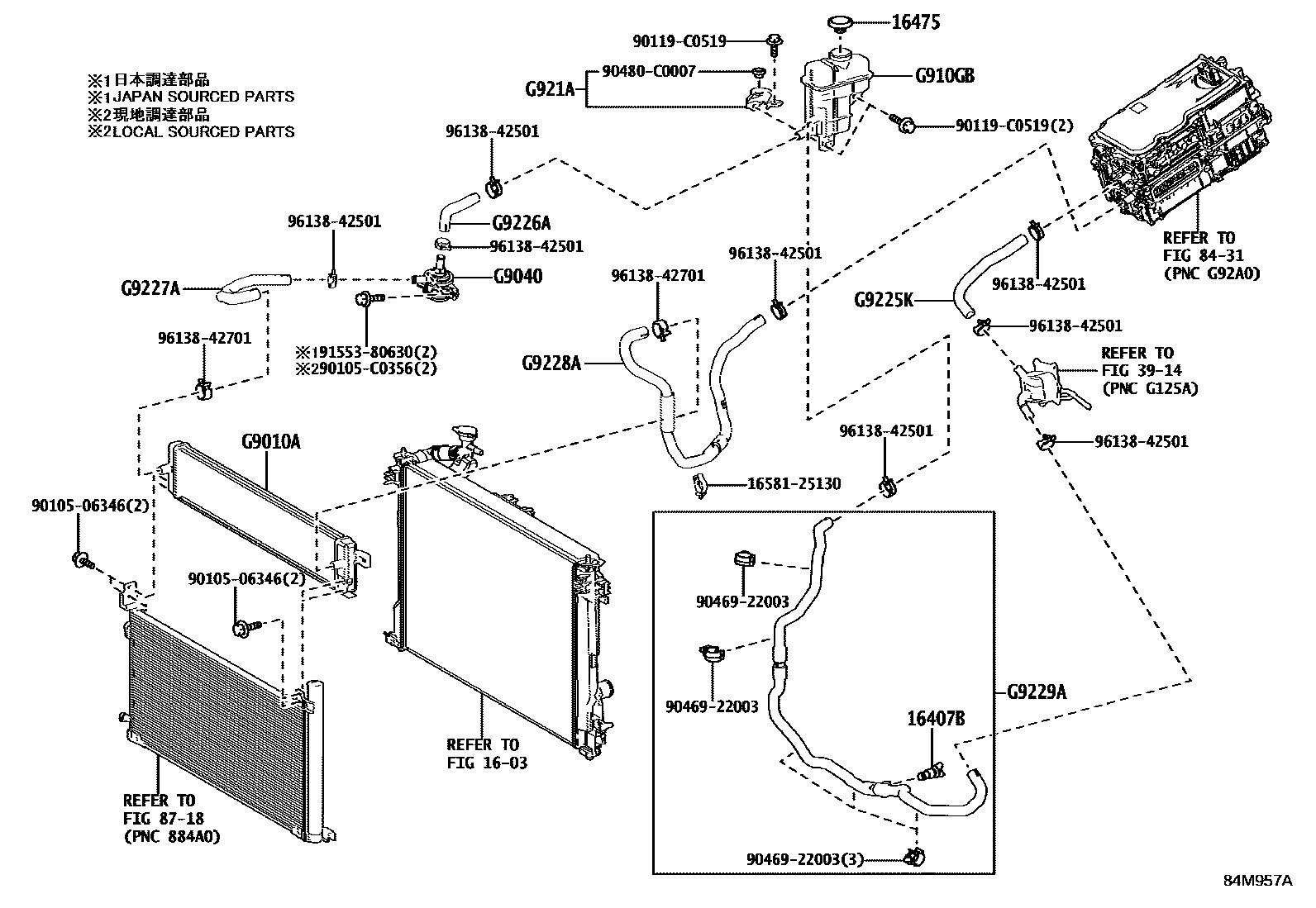

Toyota RAV4 PHEV — INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25FFXS..AXAP5#¥380202104-202304

16475CAP, RESERVE TANK

main16475-0T081iA25FFXS..AXAP5#202104-202304

LOCAL SOURCED PARTS

main16475-28140iA25FFXS..AXAP5#¥1,200202104-202304

JAPAN SOURCED PARTS

3914

8431

8718

G9010ARADIATOR ASSY

mainG901042030iAXAP5#202104-202304

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904008010iAXAP5#202304

(L)

mainG90400R030iAXAP5#202104-202304

mainG904048050iAXAP5#202304

(J)

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R020iAXAP5#202104-202304

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R020iAXAP5#202104-202304

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250R050iAXAP5#202104-202304

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260R050iAXAP5#202104-202304

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270R050iAXAP5#202104-202304

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280R050iAXAP5#202104-202304

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290R060iAXAP5#202104-202304

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130¥260

9010506346

main90105-06346

90105C0356

main90105-C0356

90119C0519

main90119-C0519

9046922003

main90469-22003¥110

90480C0007

main90480-C0007

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

24 parts on this diagram · 1 diagram in section
