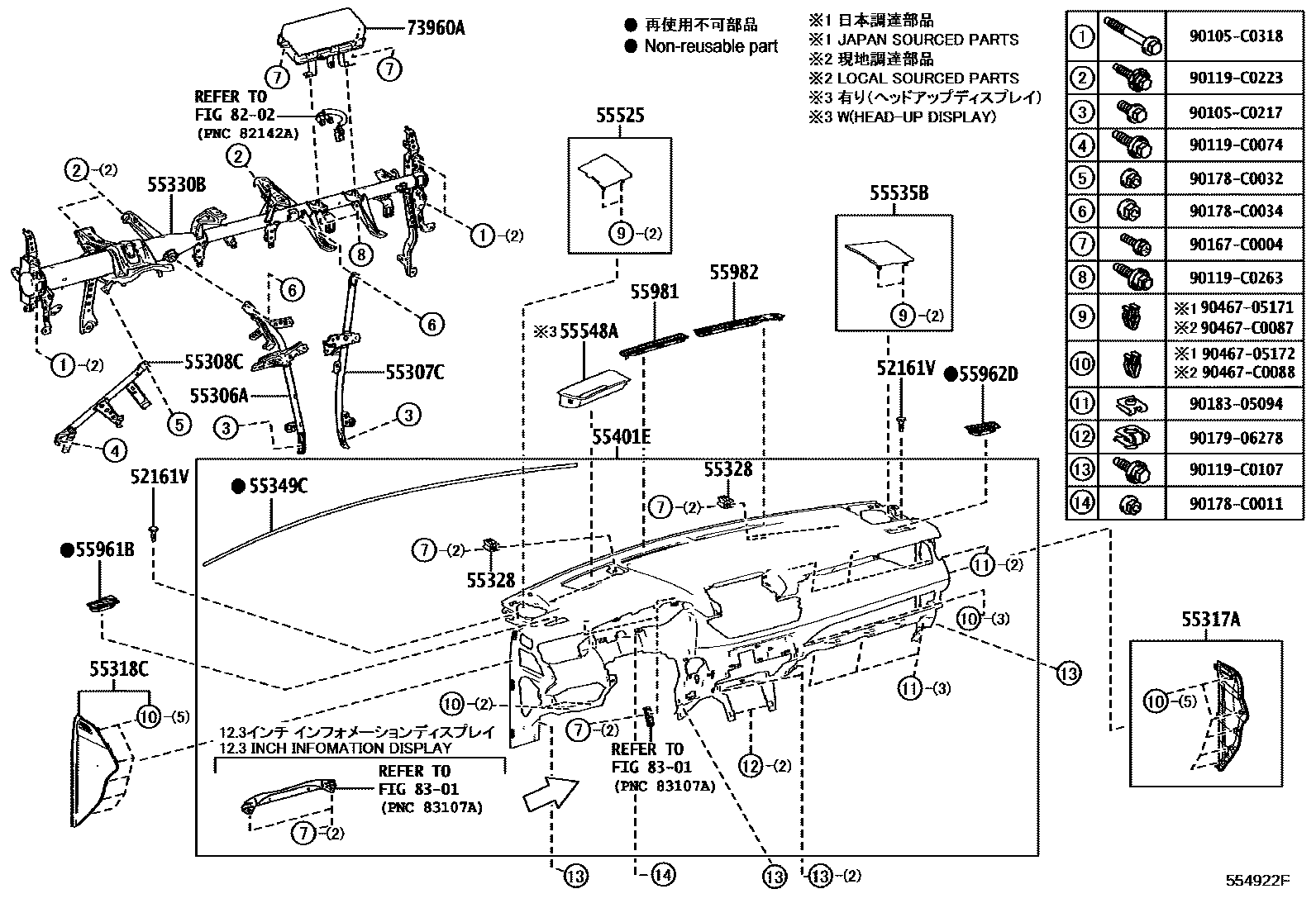

Toyota RAV4 PHEV — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040iAXAP5#202104-202304

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0R080iAXAP5#202104-202304

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0R050iAXAP5#202104-202304

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0R020iAXAP5#202104-202304

55317APANEL, INSTRUMENT SIDE, RH

main55317-0R060-C0iAXAP5#202104-202304

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0R030-C0iAXAP5#202104-202304

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-07080iAXAP5#202304

(L)

main55328-07080iAXAP5#202212-202304

main55328-0E100iAXAP5#202104-202212

(L)

main55328-12430iAXAP5#¥340202304

(J)

main55328-60090iAXAP5#¥340202104-202212

(J)

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0R120iAXAP5#..M,X202304

main55330-0R121iAXAP5#..M,X202104-202304

main55330-0R171iAXAP54..G202104-202304

55349CCUSHION, INSTRUMENT PANEL

main55349-0R040iAXAP5#202104-202304

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0R030-C8iAXAP52202104-202212

SOFT BLACK,TRIM2#

sub55401-0R031

main55401-0R031-C8iAXAP52..X202212-202304

SOFT BLACK/RED,TRIM2#

main55401-0R120-C1iAXAP54..G202104-202212

SOFT BLACK,TRIM2#

sub55401-0R121

main55401-0R121-C1iAXAP54..G202212-202304

SOFT BLACK/RED,TRIM2#

main55401-0R170-C3iAXAP54..M202207-202212

SOFT BLACK,TRIM2#

sub55401-0R171

main55401-0R171-C3iAXAP5#..M202212-202304

SOFT BLACK/RED,TRIM2#

55525COVER, SPEAKER HOLE, NO.1

main55525-0R060-C1iAXAP52..X202104-202304

BLACK,TRIM2#

main55525-0R070-C1iAXAP5#..G,M202104-202304

BLACK,TRIM2#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-0R060-C1iAXAP52..X202104-202304

BLACK,TRIM2#

main55535-0R070-C1iAXAP5#..G,M202104-202304

BLACK,TRIM2#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-0R050iAXAP54..G202104-202304

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-0R020-C1iAXAP5#202104-202304

BLACK,TRIM2#

55962DNOZZLE, SIDE DEFROSTER, NO.2

main55962-0R020-C1iAXAP5#202104-202304

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0R020-C1iAXAP5#202104-202304

BLACK,TRIM2#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-0R020-C1iAXAP5#202104-202304

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0R071iAXAP5#202104-202304

main73960-0R072iAXAP5#202304

8202

8301

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

90467C0087

main90467-C0087

90467C0088

main90467-C0088

36 parts on this diagram · 4 diagrams in section
