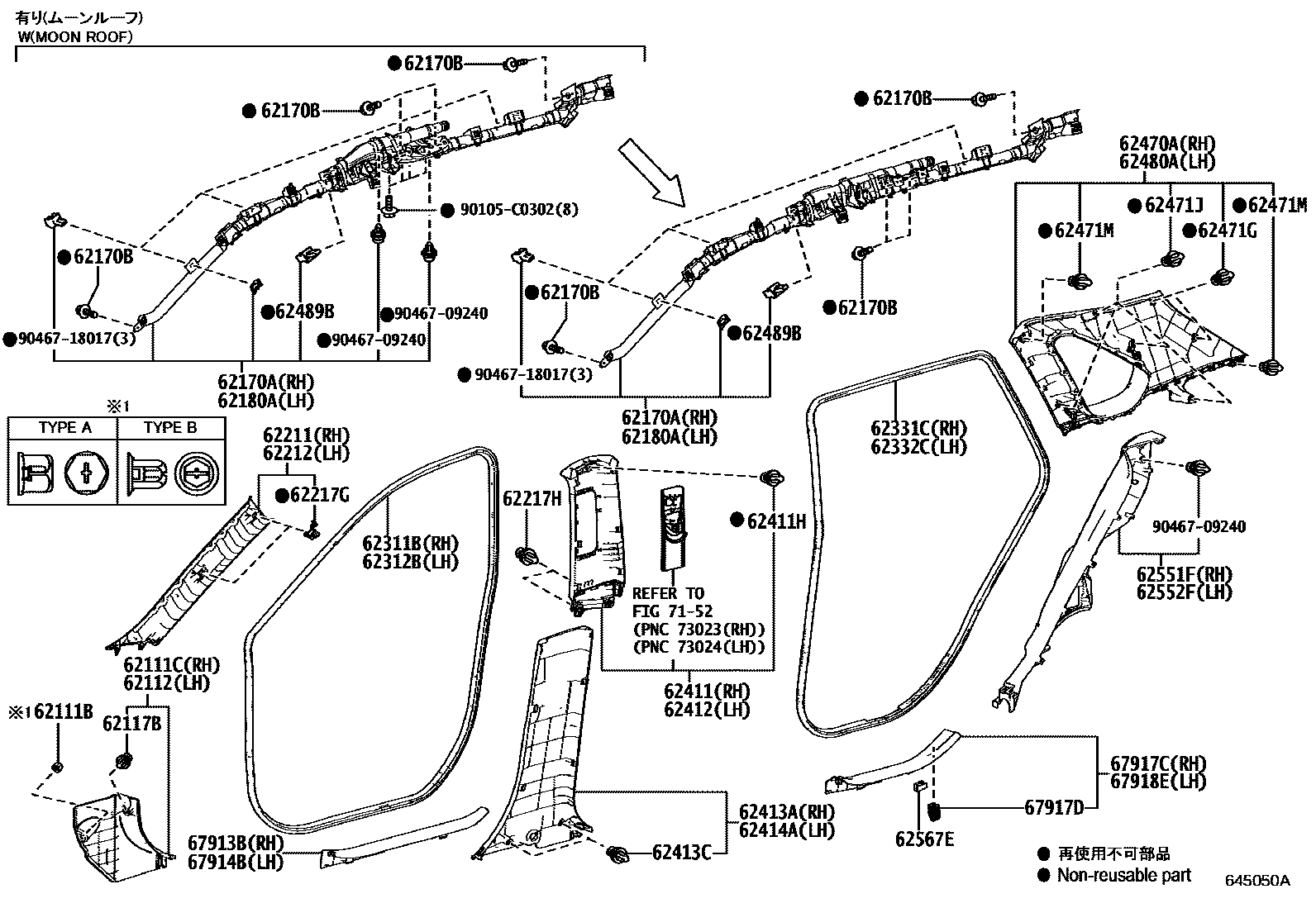

Toyota RAV4 PHEV — INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
TYPE A
TYPE B
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM2#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM2#
62411HCLIP
62412GARNISH, CENTER PILLAR, LH
LT.GRAY,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LT.GRAY,TRIM2#
62471GCLIP, ROOF SIDE INNER GARNISH
62471JCLIP (FOR ROOF SIDE GARNISH)
62471MCLIP
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LT.GRAY,TRIM2#
62489BCLIP, ROOF SIDE INNER GARNISH
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM2#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM2#
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
67917CPLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
67917DCLIP, REAR DOOR SCUFF PLATE
(J)
(L)
67918EPLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
7152
90105C0302
main90105-C0302
9046709240
9046718017
39 parts on this diagram · 1 diagram in section
