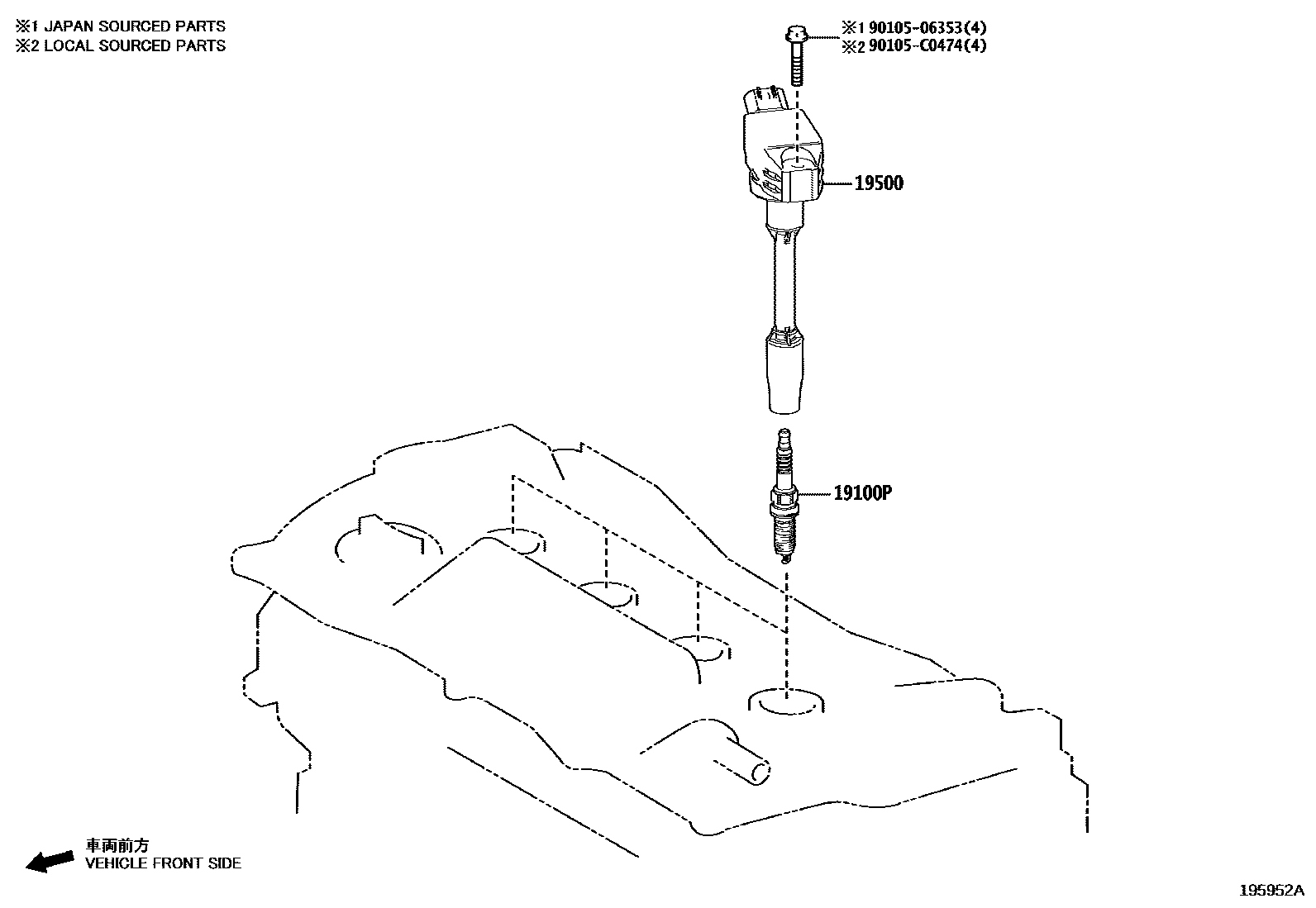

Toyota RAV4 PHEV — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01289iA25FFXS..AXAP5#¥2,300202104-202108

FC16HR-Q8

main90919-C1011iA25FFXS..AXAP5#202108-202304

DILKAR6T8

19500COIL ASSY, IGNITION

main90919-02277iA25FFXS..AXAP5#¥7,500202104-202108

main90919-C2010iA25FFXS..AXAP5#202108-202304

9010506353

main90105-06353¥60

90105C0474

main90105-C0474

4 parts on this diagram · 1 diagram in section
