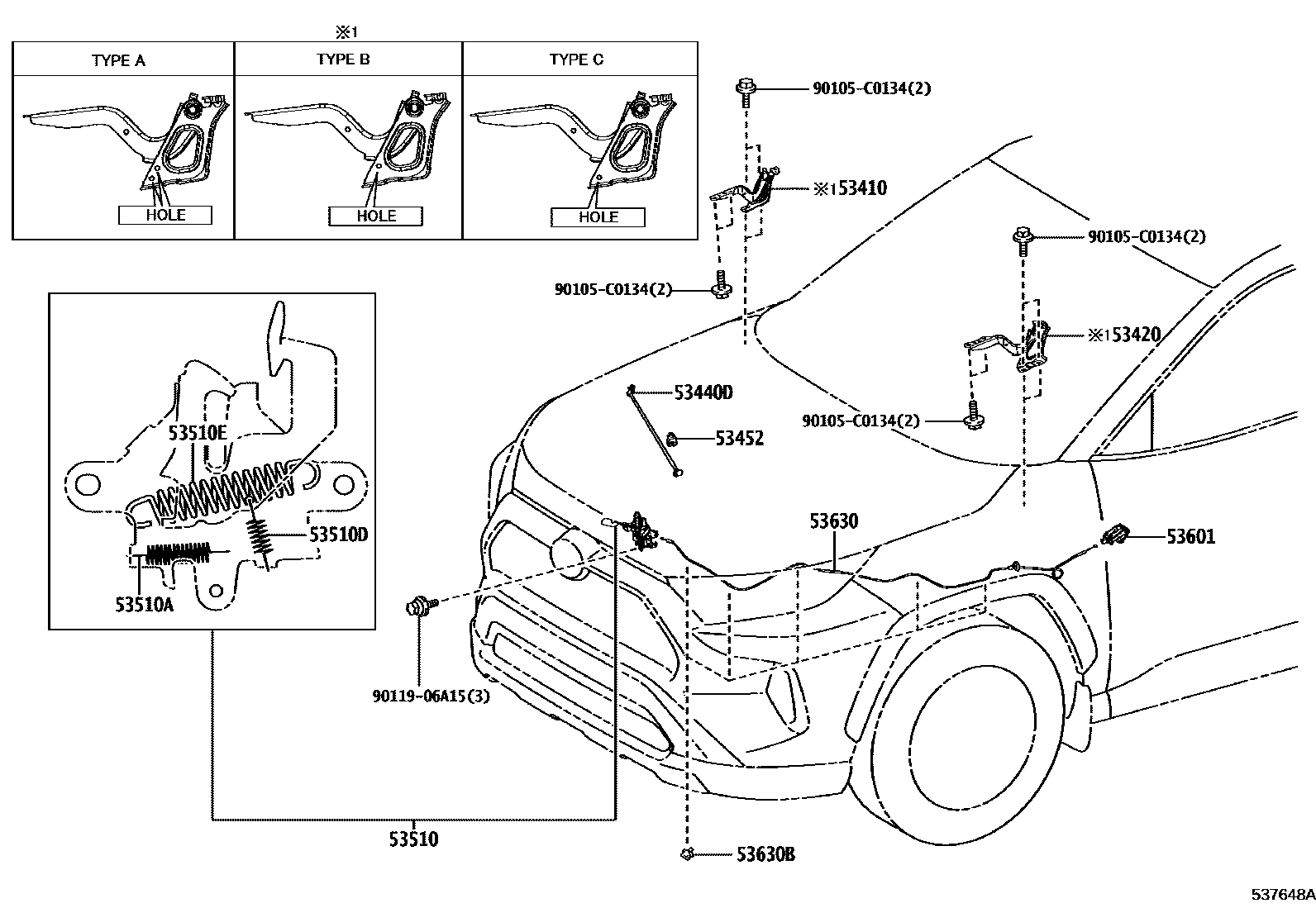

Toyota RAV4 PHEV — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0R140iAXAP5#202104-202304

main53410-0R140iAXAP5#202304

TYPE A:REFER ILLUST.

main53410-0R150iAXAP5#202304

TYPE B:REFER ILLUST.

main53410-0R160iAXAP5#202304

TYPE C:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-0R140iAXAP5#202104-202304

main53420-0R140iAXAP5#202304

TYPE A:REFER ILLUST.

main53420-0R150iAXAP5#202304

TYPE B:REFER ILLUST.

main53420-0R160iAXAP5#202304

TYPE C:REFER ILLUST.

53440DSUPPORT ASSY, HOOD

main53440-0R060iAXAP5#202104-202304

53452HOLDER, HOOD STAY

main53452-0R030iAXAP5#202104-202304

53510LOCK ASSY, HOOD

main53510-0R080iAXAP5#202104-202304

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXAP5#¥90202104-202304

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXAP5#¥90202104-202304

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-C0006iAXAP5#202104-202304

WD=1.5,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D011-C1iAXAP5#202104-202304

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0R060iAXAP5#202104-202304

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-C0004iAXAP5#202104-202304

90105C0134

main90105-C0134

9011906A15

main90119-06A15¥60

13 parts on this diagram · 1 diagram in section
